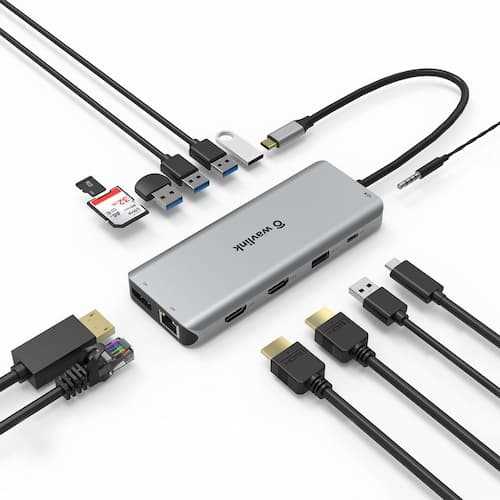

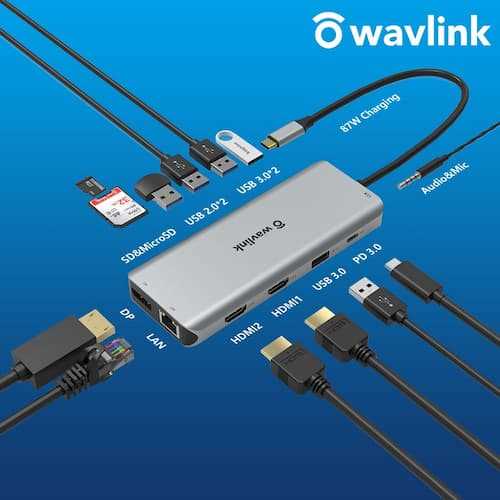

Wavlink WL-UMD501/WL-UMD502 Triple Display USB-C Hub

• Office Workstations: Connect compatible external displays, USB peripherals, wired Ethernet and audio equipment through one USB-C hub.
• Home Offices: Expand a compatible laptop's connections for everyday work, video calls and peripheral access.
• Multi-Monitor Setups: Use supported single, dual or triple-display configurations for multitasking, subject to host and display limitations.
• IT and Business Users: Connect compatible USB storage devices, keyboards, mice and printers to laptops with limited built-in ports.
• Photo and Media Workflows: Read supported SD and MicroSD cards for transferring photos and files.
• Wired Network Access: Connect to a Gigabit Ethernet network where a wired connection is preferred and suitable cabling is available.
• Mobile Workstations: Carry the hub between offices, meeting rooms and home workspaces to access additional ports.
• Laptop Charging Setups: Use a suitable external PD charger to supply supported power through the hub while connected peripherals remain in use.

• Triple-display support: Connect multiple external displays, with triple-display output limited to 1920 × 1080 at 60Hz when three monitors are active, subject to host compatibility.
• Single or dual display output: Supports single or dual HDMI displays up to 4K, with dual-display resolution depending on the selected outputs and connection mode.
• USB 3.0 connectivity: Two USB 3.0 ports support data transfer speeds up to 5Gbps for compatible storage and peripheral devices.
• USB 2.0 connectivity: Two USB 2.0 ports support speeds up to 480Mbps for devices such as keyboards, mice and printers.
• Power Delivery: Supports up to 87W total power allocation, with up to 60W to the laptop and 27W to other ports; a suitable external PD charger is required.
• Gigabit Ethernet: RJ45 Ethernet supports speeds up to 1Gbps and backward compatibility with 100Mbps and 10Mbps networks.
• SD and MicroSD card readers: Supports SD, SDHC, SDXC, MicroSD and MMC cards, with stated card-reader speeds up to 104MB/s and simultaneous SD and MicroSD reading.
• Combined audio and microphone jack: The 3.5mm CTIA-standard port supports compatible headsets or audio equipment for listening and voice input.
• Aluminium enclosure: CNC-milled aluminium construction with polished chamfered edges provides a compact, portable design.
• Plug-and-play operation: Designed for convenient connection of supported peripherals without a separate setup process in typical compatible configurations.
• USB-C integrated cable: Built-in flexible USB-C cable measures approximately 4.72 inches for connecting the hub to a compatible host device.

• Brand: Wavlink
• Model: WL-UMD501 (12-in-1) / WL-UMD502 (13-in-1)
• Product Type: USB-C multiport hub
• Colour: Silver
• Display Support: Single or dual HDMI displays up to 4K; triple-display mode up to 1920 × 1080 at 60Hz
• Dual Display Resolution: Up to one 4K at 30Hz and one 2K at 60Hz in the stated configuration; VGA use may limit output to 2K at 60Hz
• USB 3.0 Ports: 2
• USB 3.0 Data Rate: Up to 5Gbps
• USB 2.0 Ports: 2
• USB 2.0 Data Rate: Up to 480Mbps
• Power Delivery: Up to 87W total
• Maximum Laptop Power Allocation: Up to 60W
• Maximum Power Allocation to Other Ports: 27W
• External Power Adapter: Required for PD charging
• Ethernet Interface: RJ45 Gigabit Ethernet
• Ethernet Speeds: 10/100/1000Mbps
• Card Reader Support: SD, SDHC, SDXC, MicroSD and MMC
• Maximum Stated Card Capacity: Up to 2TB
• Card Reader Speed: Up to 104MB/s
• Audio Interface: 3.5mm audio and microphone combination jack
• Host Connection: Integrated USB-C cable
• Integrated Cable Length: Approximately 4.72 inches
• Enclosure Material: CNC-milled aluminium
• Warranty: 1 year

WHY CHOOSE THIS PRODUCT?

• Expand laptop connectivity with additional USB, display, network, card-reader and audio interfaces.
• Connect external displays for multitasking, subject to the laptop's display-output capabilities and supported connection mode.
• Access wired Gigabit Ethernet for network connectivity in office or home environments.
• Connect USB peripherals such as storage drives, keyboards, mice and printers through the additional USB ports.
• Transfer files from supported SD and MicroSD cards without requiring a separate card reader.
• Use compatible Power Delivery equipment to provide power to the laptop while using the hub's other functions.
• Carry the compact aluminium hub between workspaces for flexible laptop connectivity.
