VHD V60XL 1080P 20x Zoom Professional PTZ Camera

• Video Conferencing: Full HD video, zoom and pan/tilt movement support camera framing in meeting environments.
• Live Streaming: HDMI, 3G-SDI and network protocols provide options for integrating the camera into streaming workflows.
• Education and Training: Remote camera movement and zoom help frame presenters and teaching spaces.
• Corporate Video Production: Multiple video interfaces support integration into compatible recording and production systems.
• Network-Based Video Workflows: Gigabit Ethernet, dual streams and supported streaming protocols enable IP video integration.
• AV System Integration: RS232, RS485, HDMI, SDI and Ethernet provide connection and control options for compatible equipment.

• Brand: VHD
• Model: V60XL
• Product Type: Professional PTZ Camera
• Color: Gray
• Image Sensor: 1/2.8-inch CMOS
• Effective Pixels: 2.07 megapixels
• Scanning Mode: Progressive
• Video Resolution: Up to 1920 × 1080
• Lens Zoom: 20x
• Focal Length: 4.42–88.5 mm
• Aperture: F1.8–F2.8
• Shutter Speed: 1/30 s–1/10000 s
• Minimum Illumination: 0.5 lux at F1.8, AGC on
• White Balance: Auto, indoor, outdoor, one-push, manual
• Backlight Compensation: Supported
• Digital Noise Reduction: 2D and 3D
• Signal-to-Noise Ratio: =55 dB
• Horizontal Field of View: 60.7°–3.36°
• Vertical Field of View: 34.1°–1.89°
• Pan Angle: ±170°
• Tilt Angle: -30° to +90°
• Pan Speed: 1.7°–100°/s
• Tilt Speed: 1.7°–69.9°/s

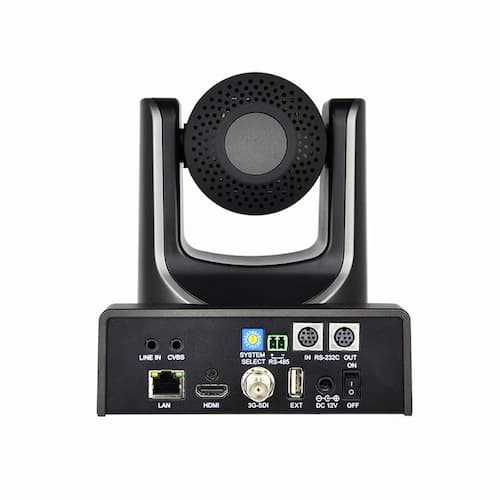

• USB Interface: 1 × USB 3.0 Type-A
• HDMI Output: 1 × HDMI 1.3
• SDI Output: 1 × 3G-SDI, BNC, 800 mVp-p, 75 O
• SDI Standard: SMPTE 424M
• Network Interface: 1 × RJ45, 10/100/1000 Mbps adaptive Ethernet
• PoE Support: IEEE 802.3af
• Built-In Microphones: Dual microphones
• Audio Input: 1 × 3.5 mm line-in
• Audio Output: 1 × 3.5 mm line-out
• RS485 Interface: 1 × 2-pin Phoenix port
• RS485 Control Protocols: VISCA, Pelco-D, Pelco-P
• RS485 Maximum Distance: 1200 m
• RS232 Input: 1 × 8-pin Mini-DIN
• RS232 Input Protocols: VISCA, Pelco-D, Pelco-P
• RS232 Input Maximum Distance: 30 m
• RS232 Output: 1 × 8-pin Mini-DIN
• RS232 Output Protocol: VISCA
• RS232 Output Maximum Distance: 30 m
• Video Compression: H.265, H.264
• Video Streams: First stream, second stream
• First-Stream Resolutions: 1920 × 1080, 1280 × 720, 1024 × 576 and others
• Second-Stream Resolutions: 1280 × 720, 1024 × 576, 720 × 576 and others
• Video Bit Rate: 32 Kbps–102400 Kbps
• Bit Rate Control: Variable bit rate, constant bit rate
• Frame Rate: 1–60 fps
• Audio Compression: AAC
• Audio Bit Rates: 96 Kbps, 128 Kbps, 256 Kbps
• Network Protocols: NDI|HB, NDI|HX, NDI|HX2, TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, multicast, SRT, GB/T 28181 and others
• Input Voltage: DC 12 V or PoE
• Maximum Input Current: 1.0 A
• Maximum Power Consumption: 12 W
• Operating Temperature: -10°C to 40°C
• Storage Temperature: -40°C to 60°C
• Warranty: 1 year

WHY CHOOSE THIS PRODUCT?

• Flexible Camera Positioning: Remote pan, tilt and zoom functions help adjust framing for different production requirements.
• Multiple Video Outputs: HDMI and 3G-SDI provide connection options for compatible display, recording and production equipment.
• Network Streaming Support: H.264/H.265 compression and supported network protocols provide options for IP-based video workflows.
• PoE Connectivity: IEEE 802.3af support allows power delivery through compatible Ethernet infrastructure.
• Integrated Audio Options: Built-in dual microphones and dedicated audio ports support audio integration.
• Remote Control Compatibility: RS485 and RS232 interfaces support specified VISCA and Pelco protocols.
• Professional AV Connectivity: A combination of video outputs, network access and control interfaces supports integration into compatible AV systems.
