Vertiv Liebert PSA-500VA Uninterruptible Power Supply UPS (PSA500MT3-230U)- Black


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Vertiv
  • Model: PSA500MT3-230U

    SPECIFICATIONS
    Power
  • Output power: 300 W
  • Input operation voltage (min): 160 V
  • Input operation voltage (max): 287 V
  • Power factor: 0.6
  • Output power capacity: 0.5 kVA

    Performance
  • UPS topology: Line-Interactive
  • Waveform: Stepwise
  • Number of output phases: 1
  • Number of input phases: 1
  • Response time: 6 ms
  • LED indicators: Yes
  • Audible alarm(s): Yes

    Features
  • Output frequency: 50/60 Hz
  • UPS topology: Line-Interactive
  • Waveform: Stepwise
  • Number of output phases: 1
  • Number of input phases: 1
  • Response time: 6 ms
  • Output power: 300 W
  • Input operation voltage (min): 160 V
  • Input operation voltage (max): 287 V
  • Power factor: 0.6
  • Audible alarm(s): Yes
  • Output power capacity: 0.5 kVA
  • Input frequency: 50/60 Hz

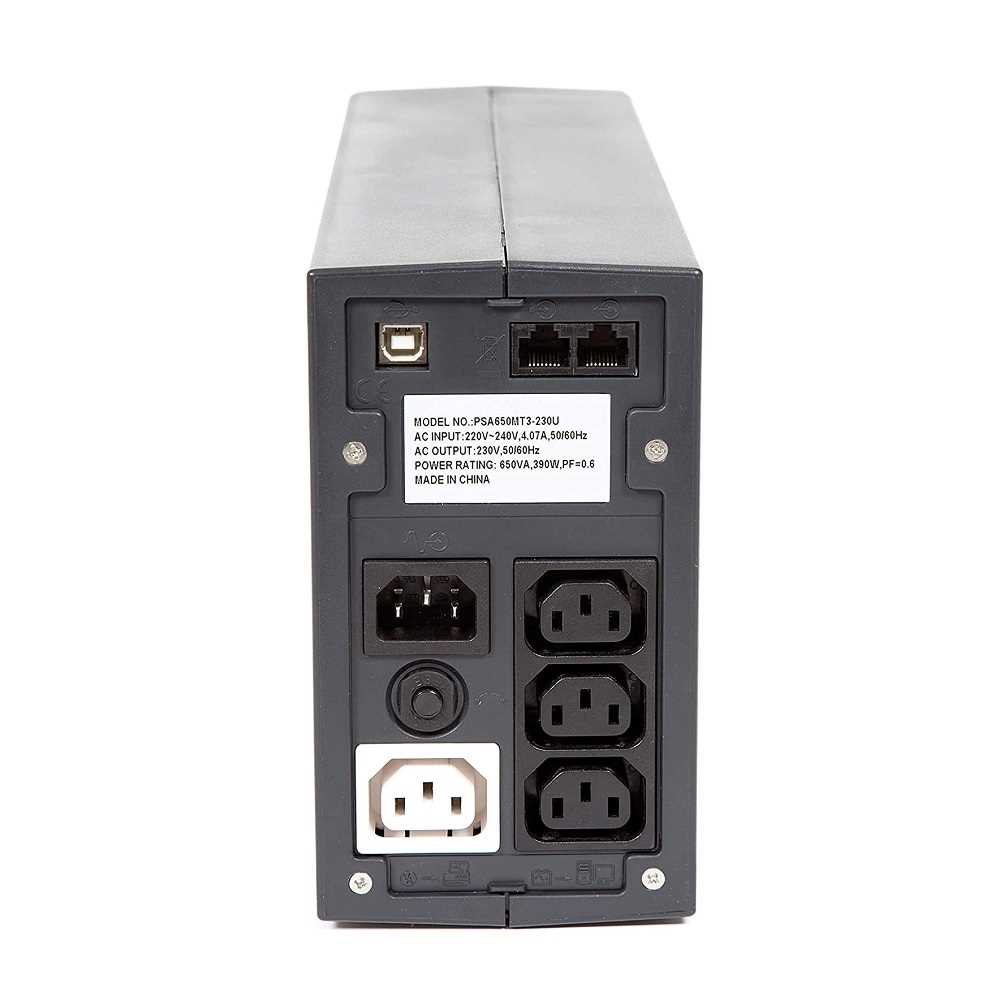

    Ports & interfaces
  • USB port: Yes
  • AC outlets quantity: 4 AC outlet(s)
  • AC outlet types: C13 coupler, IEC 320
  • Power plug: C14 coupler
  • USB 2.0 ports quantity: 1
  • Serial ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 2

    Battery
  • Number of batteries supported: 1
  • Battery voltage: 12 V
  • Battery capacity: 7 Ah
  • Battery technology: Sealed Lead Acid (VRLA)
  • Battery recharge time: 6 h
  • Typical backup time at half load: 10 min
  • Typical backup time at full load: 3 min

    Design
  • International Protection (IP) code: IP20
  • Form factor: Tower
  • LED indicators: Yes
  • Product colour: Black
  • Safety: IEC/EN/AS 62040-1-1
  • Cooling type: Active
  • Certification: CE

    Operational conditions
  • Operating temperature (T-T): 0 – 40 °C
  • Storage temperature (T-T): -15 – 40 °C
  • Operating relative humidity (H-H): 0 – 90%
  • Storage relative humidity (H-H): 0 – 90%
  • Operating altitude: 0 – 3000 m
  • Technical details
  • Output frequency: 50/60 Hz
  • Sustainability certificates: RoHS

    Cooling
  • Cooling type: Active
  • Weight & dimensions
  • Weight: 5.4 kg
  • Width: 99 mm
  • Height: 171 mm
  • Depth: 356 mm

Features

Brand:
Vertiv
Warranty:
1 Year
