Vertiv EDGELI-3000IRT2U 3kVA Lithium-Ion Rack/Tower UPS

• Server Racks: Provides backup power and voltage regulation for compatible rack-mounted IT equipment.
• Network Infrastructure: Supports power continuity for compatible switches, routers and network appliances.
• Small Data Rooms: Offers a 2U UPS option for space-conscious IT installations.
• Business IT Equipment: Helps protect compatible equipment from power interruptions and voltage fluctuations.
• Rack-Based Systems: Supports installations requiring a rack-mountable UPS with IEC output connections.

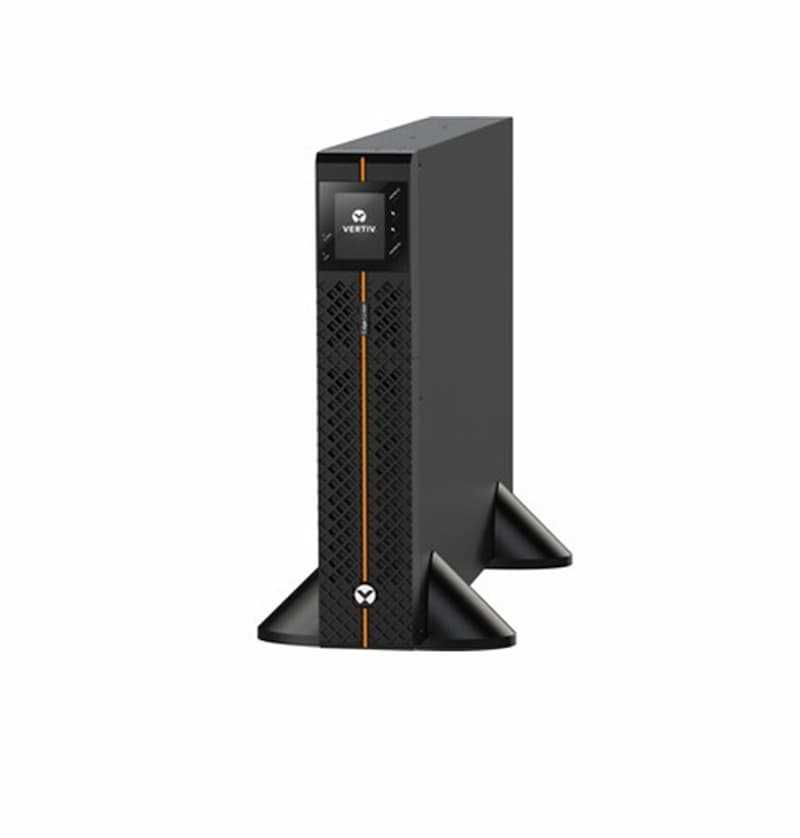

• Tower Deployments: The convertible design provides flexibility for supported tower configurations.
• IT Equipment Requiring 230V: Designed for compatible equipment operating on a nominal 230V supply.
• Managed Power Environments: USB connectivity and an LCD interface support local monitoring and compatible management workflows.

• Lithium-Ion Battery Technology: Uses lithium-ion batteries to support longer battery service life and fewer replacements compared with VRLA batteries.
• Hot-Swappable Battery: Allows user-replaceable battery changes without requiring the entire UPS to be replaced.
• Line-Interactive Topology: Provides power protection with automatic voltage regulation for connected equipment.

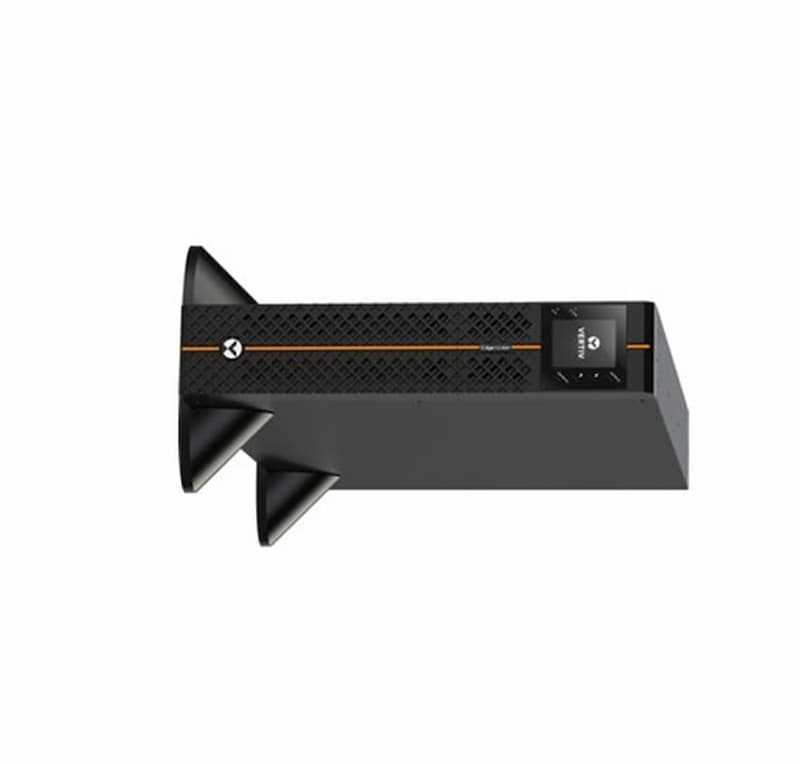

• Rack/Tower Deployment: The 2U design supports rack-mounted installation and flexible deployment configurations.
• 230V Nominal Output: Designed for IT equipment requiring a 230V power supply.
• Automatic Voltage Regulation (AVR): Helps regulate output voltage when input voltage fluctuates.
• LCD Display: Provides a local interface for viewing UPS information.
• USB Connectivity: Supports a USB connection for compatible monitoring and management functions.
• Emergency Power Off (EPO): Provides an emergency shutdown interface for supported installations.
• EMI/RFI Noise Filtering: Helps reduce electromagnetic and radio-frequency interference on the power line.
• Audible Alarm: Provides audible notifications about UPS conditions.
• Output Socket Groups: Supports organized power distribution across connected equipment.
• High Efficiency: Rated at up to 98.5% efficiency under specified operating conditions.

• Brand: Vertiv
• Product Series: Liebert EDGE
• Model: EDGELI-3000IRT2U
• Product Type: Line-Interactive Uninterruptible Power Supply
• Battery Technology: Lithium-Ion
• Nominal Output Voltage: 230V
• Output Capacity: 3000VA
• Output Power: 2700W
• UPS Topology: Line-Interactive
• Output Waveform: Pure Sine Wave
• Automatic Voltage Regulation (AVR): Yes
• Input Connection: IEC 60320 C20 inlet
• Output Connections: IEC 60320 C13 and C19 sockets
• Output Socket Configuration: 3 + 3 IEC C13 sockets, including one programmable group, and 1 IEC C19 socket
• USB Port: Yes
• Emergency Power Off (EPO): Yes
• EMI/RFI Noise Filtering: Yes
• LCD Display: Yes
• LED Indicators: Diagnostics
• Efficiency: Up to 98.5%
• Power Factor: 0.9
• Average Response Time: 6 ms
• Maximum Current: 10A
• Energy Rating: 624J
• Audible Alarm: Yes
• Full-Load Backup Runtime: 9.3 minutes
• Half-Load Backup Runtime: 20.2 minutes
• Hot-Swappable Battery: Yes
• Maximum Battery Life: Up to 5 years
• Form Factor: Rack-Mountable, Rack/Tower Convertible
• Rack Height: 2U
• Colour: Black
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 45°C
• Operating Relative Humidity: 8% to 90%
• Operating Altitude: 0 to 3000m
• Certifications: CE, EAC, RCM, CB report, ISTA 2A, UN38.3
• Sustainability Compliance: RoHS
• Dimensions (W × D × H): 438 × 510 × 86mm
• Product Weight: 17.5kg
• Package Dimensions (W × D × H): 565 × 700 × 240mm
• Packaged Weight: 25.2kg
• HS Code: 85078000
• Warranty: 5 years

WHY CHOOSE THIS PRODUCT?

• Lithium-Ion Battery Design: Supports longer battery service life and fewer battery replacements compared with VRLA technology.
• Hot-Swappable Batteries: Simplifies battery maintenance and helps reduce service interruptions.
• Flexible Installation: The 2U rack/tower format supports different IT equipment deployment requirements.
• Voltage Regulation: AVR helps manage input voltage fluctuations for connected equipment.
• Monitoring and Shutdown Interfaces: LCD, USB and EPO interfaces support monitoring and power management in compatible installations.
