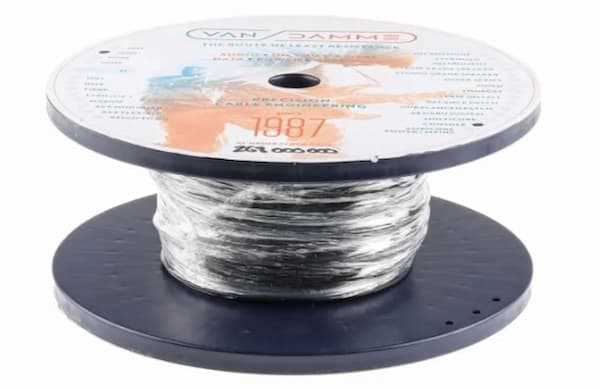

Van Damme Screened 2 Core Microphone Cable, 0.22 mm%B2 CSA, 2.7mm od, 100m, Black


Brand:

Specifications

   Product details:
  • Brand: Van Damme
   Product Details:
   Reduced OD Console Cable

  • Reduced overall diameter foil screened single pair installation cable for very high density fixed wiring applications - patch panels, outside broadcast vehicles, mixing consoles, internal equipment wiring
  • Foil screen and outer jacket bonded for easy stripping and quick preparation time
  • Linear crystal oxygen free copper conductors for excellent signal integrity
   Specifications:
  • Attribute: Value
  • Audio Cable Type: Microphone Cable
  • Number of Cores: 2
  • Cross Sectional Area: 0.22 mm²
  • Screened/Unscreened: Screened
  • Insulation Material: Polyolefin
  • Outer Diameter: 2.7mm
  • Length: 100m
  • Fire Behaviour: Low Smoke Zero Halogen (LSZH)
  • Sheath Colour: Black
  • American Wire Gauge: 24 AWG
  • Screen Type: Aluminium/PET Foil
  • Number of Strands: 28
  • Capacitance Core To Screen: 100pF/m
  • Capacitance Core To Core: 50pF/m
  • Size of Strands: 0.1 mm
  • Voltage Rating: 250 V
  • Conductor Material: Oxygen Free Copper
  • Core Strands: 28/0.10 mm
  • Conductor Resistance: 90 O/km
  • Sheath Material: PVC/Neoprene
  • Cable Shape: Twisted Pair
