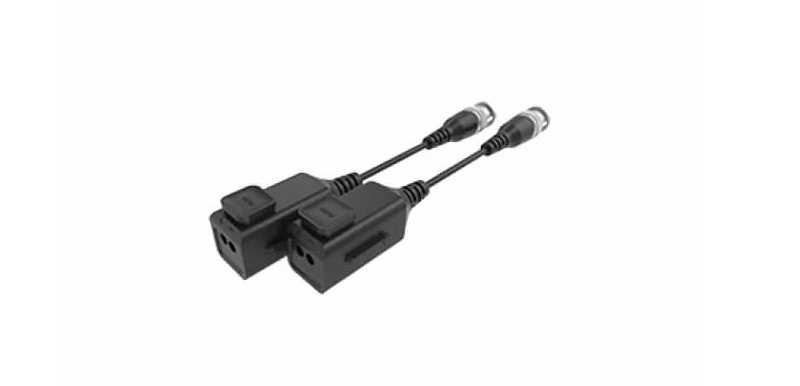

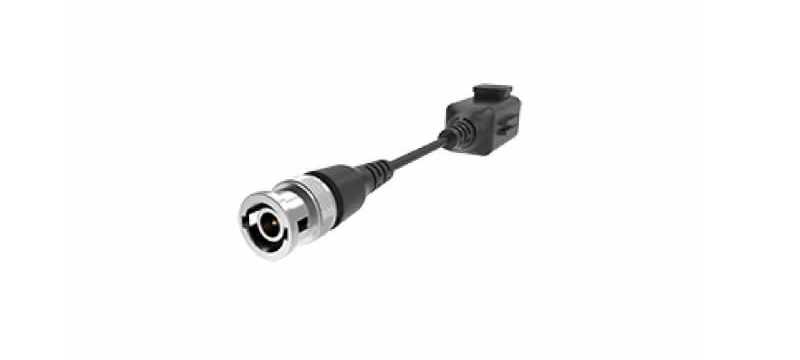

Utepo UTP101P-HD6 Passive Analog HD-Video UTP Transceiver (Black)


Brand:

Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Utepo
  • Model: UTP101P-HD6
  • Color: Black
      Specification:
  • Coaxial Video Port: Male BNC
  • Twisted-pair Video Port: 2-channel pushing terminal
  • Video Compatibility: HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video
  • Bandwidth: 0~75MHz
      Surge Immunity:
  • 2KV Per: IEC61000-4-5
      ESD Immunity:
  • Level 3,1a Contact Discharge
  • Level 3,1b Air Discharge
  • Operating Temperature: -10~55?
  • Storage Temperature: -40?~85?
  • Humidity(Non-condensing): 0~95%
  • Out Shell: ABS
  • Weight: 20g
      Transmission Distance (with passive product):
  • HDCVI-720P:400m;1080P:250m
  • 4MP:250m;8MP:200m
  • HDTVI-720P:250m;1080P:250m
  • 4MP:200m;8MP:160m
  • AHD-720P: 300m; 1080P:300m
  • 4MP: 270m; 8MP:250m
  • Analog Video:500m

Features

Brand:
Utepo
Color:
Black
Conditions:
New
Warranty:
1 Year
