UPC/APC OS2 Single Mode Industrial Armored TPU Fiber Optic Patch Cable With 1-24 Fibers - Black


Brand:
No Brand

Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Color: Black
     Specification:

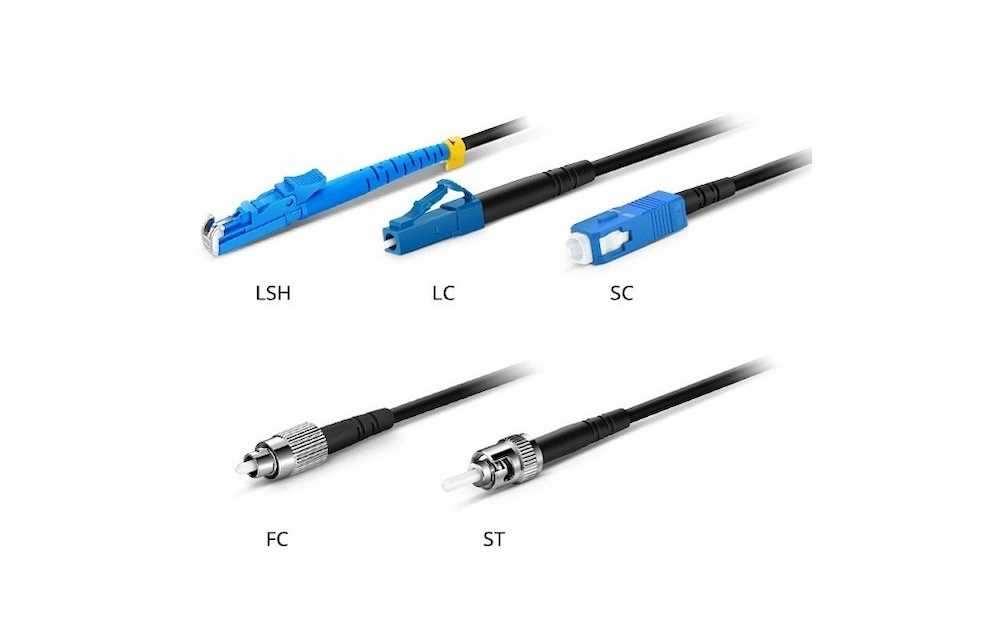

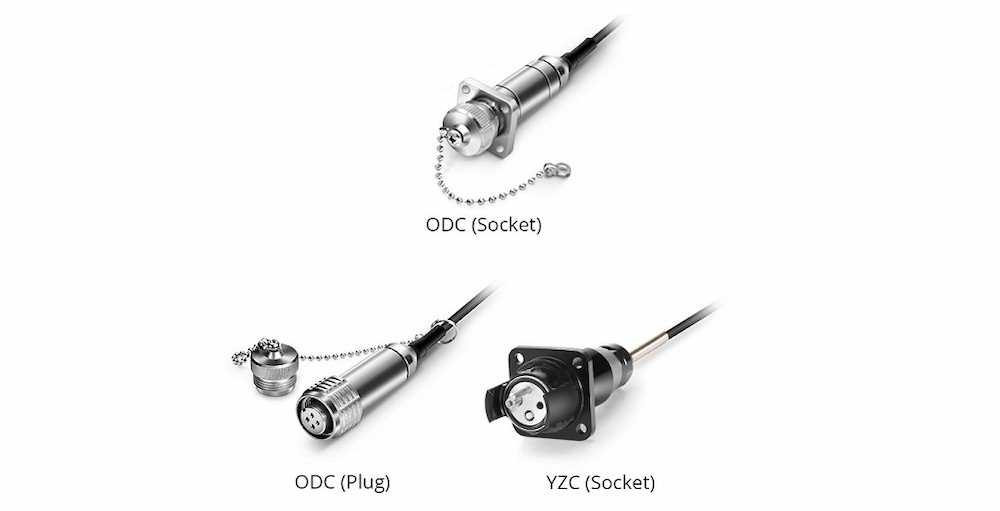

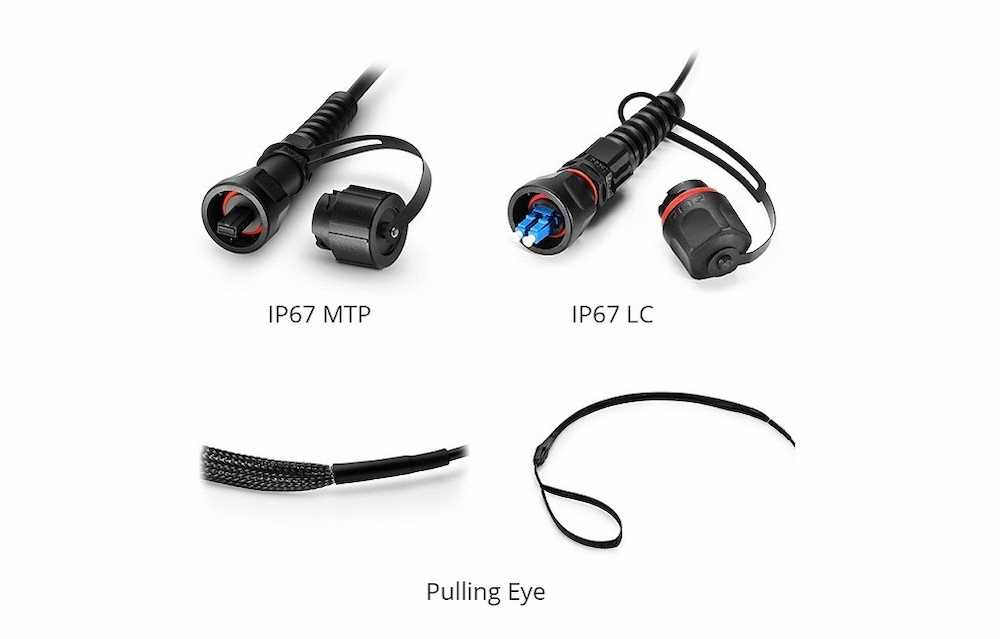

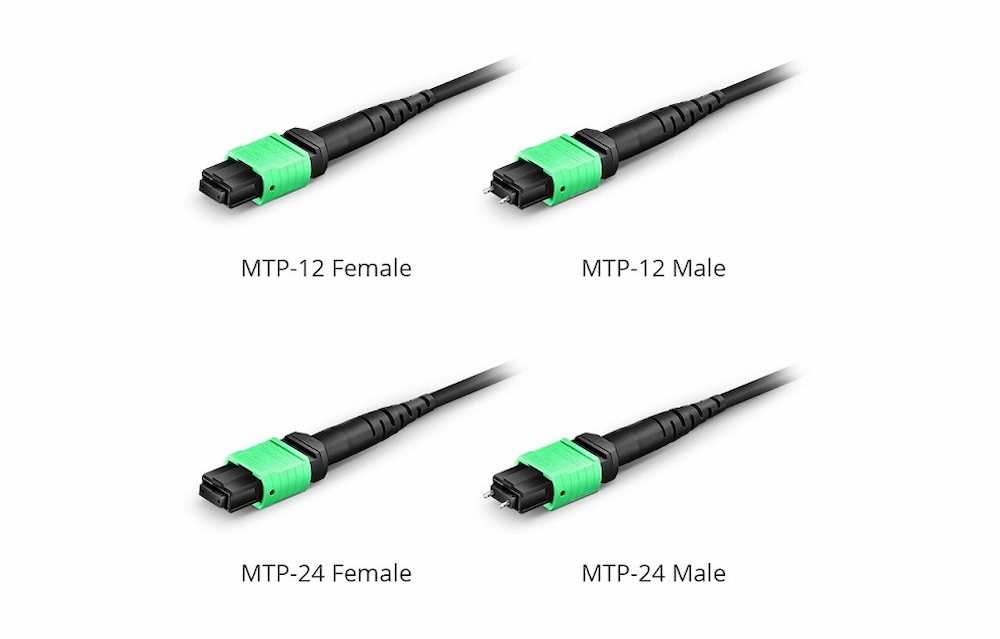

  • Connector Type: LC/SC/ST/FC/LSH/MTP/ODC/YZC/IP67
  • Polish Type: UPC/APC
  • Fiber Count: 1-24 Fibers
  • Cable Jacket: TPU (Thermoplastic Polyurethane)
  • Fiber Mode: OS2 9/125µm
  • Wavelength: 1310/1550nm
  • Attenuation at 1310nm: 0.36 dB/km
  • Attenuation at 1550nm: 0.22 dB/km
  • Bend Radius (Fiber Cable): 20/10D (Dynamic/Static)
  • Fiber Grade: G.657.A2
  • Insertion Loss: LC/SC/ST/FC/LSH/IP67 LC/IP67 SC=0.3dB, MTP®/IP67 MTP®=0.35dB, ODC/YZC=1.0dB
  • Return Loss: UPC=50dB, APC=60dB
  • Crush Resistance: 1000/3000 N/100mm
  • Tensile Load: 200/600N
  • Impact Resistance: 200 Impacts
  • Flex Resistance: 2000 Cycles
  • Trunk Diameter: 3.0-7.0mm
  • Breakout Diameter: 3.0mm (1-4 Fibers),2.5mm (6-24 Fibers)
  • Maximum Tension of Pulling Eye: 245N
  • Operating & Storage Temperature: -40-80°C
















Features

Brand:
No Brand
Color:
Black
Conditions:
New
Warranty:
1 Year
