Unitech Supplies Cable Fault Locator (Red)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Unitech Supplies
  • Color: Red

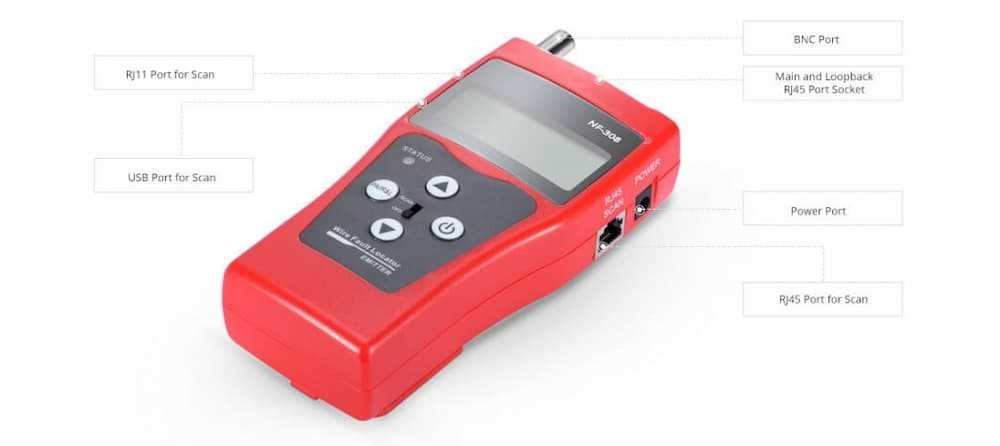

       Specification:
  • Indicator: LCD screen with backlight, 53mm x 25mm
  • Tone Frequency: 225kHz
  • Max Transmission Distance: Up to 2km
  • Max Cable Map Distance: Up to 1km
  • Max Working Current: Less than 70mA
  • Tone Mode: 2 Tones Adjustable
  • Compatible Connectors: RJ11,RJ45, BNC, USB
  • Max. Signal Voltage: 15Vp-p
  • Function Selection: 3 position buttons & 1 power switch
  • Function and Faults: LCD Display LCD Display ( Wiremap, Tone, Short, , No Adapter, Low Battery )
  • Cable Map Indication: LCD (#1-#8)
  • Shielded Indication: LCD (#9)
  • Battery Type: DC9.0V(NEDA 1604/6F22 DC9V x 1pcs)

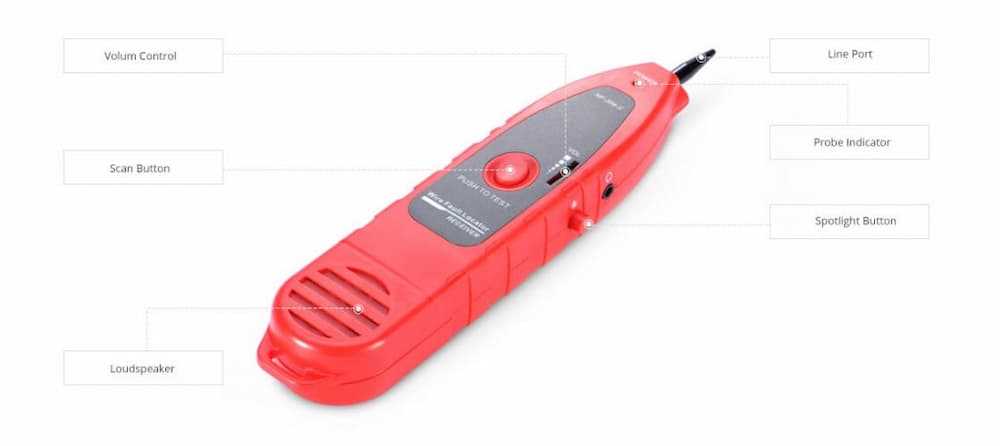

       NF-308 Receiver:
  • Frequency: 225kHz
  • The Max. working current: Less than 70mA
  • Earjack: 1
  • LED illumination: 2
  • Battery Type: DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
       Functions:
  • Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
  • Hub blink for locating network port by the flashing port light on Hub / Switch.
  • Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
  • Locate the wiring or connection error.
  • Measure cable length up to 1000m and locate the breakage point.
  • Polarity test function measure DC voltage.
  • Memory and storage for calibration data.
  • Automatically time-delay shut off and Low battery alarm function.




Features

Brand:
Unitech Supplies
Color:
Red
Conditions:
New
Warranty:
1 Year
