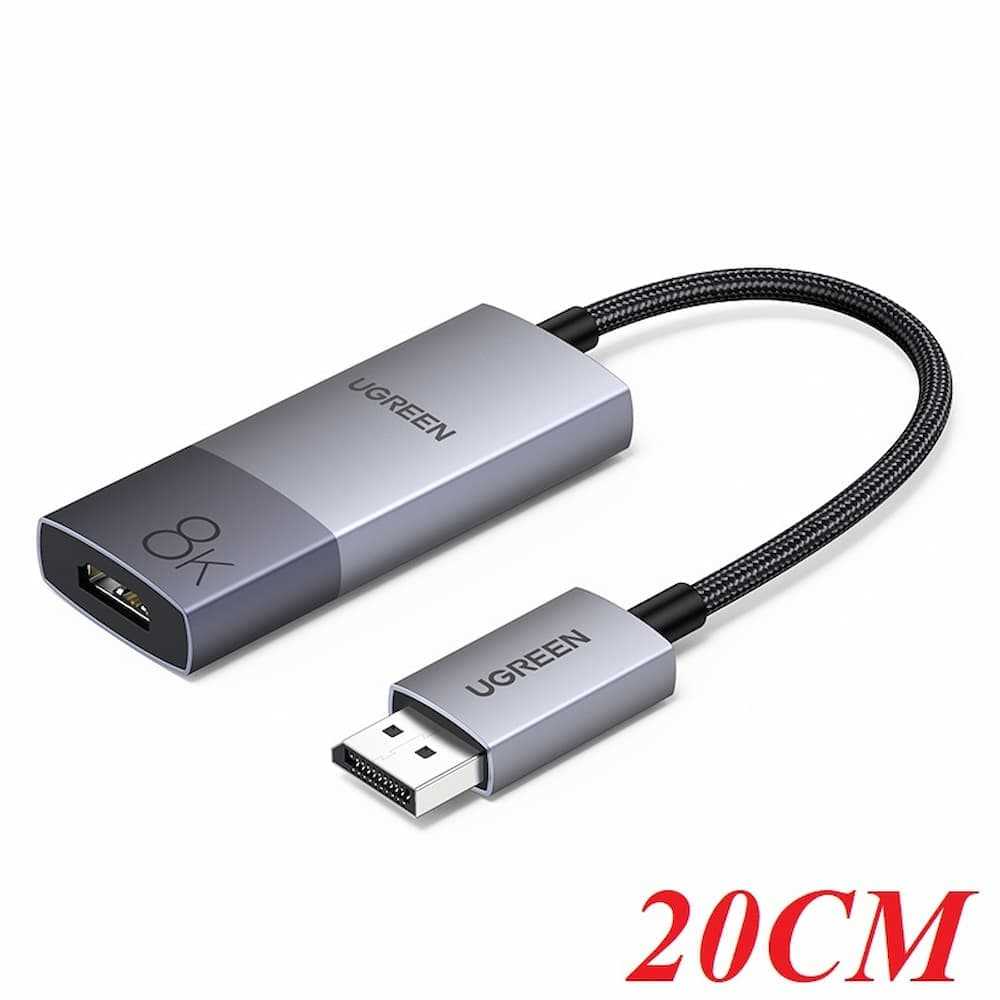

UGREEN MM137-40948 DisplayPort 1.4 to HDMI 2.1 8K 60Hz Adapter Silver

• Office Workstations: Connect compatible desktop computers to HDMI monitors for business applications.
• High-Resolution Monitors: Connect a DisplayPort-equipped system to an HDMI display that supports the required resolution and refresh rate.
• Meeting Rooms: Connect compatible computers to HDMI-equipped presentation displays.
• Training Rooms and Classrooms: Support computer-to-display connections for presentations and instructional content.
• Digital Content Workstations: Use with compatible source hardware and displays for high-resolution visual workflows.
• IT Deployment Projects: Procure adapters for standardised workstation and display connectivity after checking port requirements.

• High-Resolution Output: Supports up to 7680 × 4320 resolution at 60Hz, subject to compatible source, display, cable, and configuration.
• DisplayPort 1.4 Input: Connects to a compatible computer or device with a DisplayPort output.
• HDMI 2.1 Display Connection: Provides an HDMI female port for connecting a suitable HDMI cable to a compatible display.
• Directional Signal Conversion: Designed for DisplayPort source to HDMI display connections, not HDMI source to DisplayPort display connections.
• Aluminum Alloy Housing: Provides a durable enclosure for regular workstation and display connectivity.
• Shielded Construction: Uses shielding materials described in the supplied specifications to help limit electromagnetic interference.
• Compact Adapter Format: The listed adapter cable length is 20cm, making it suitable for setups where a short connection is preferred.
• Auxiliary Power Cable: The supplied specifications list a 1m Type-C power supply cable; confirm the power connection requirements for the exact product before installation.

• Brand: UGREEN
• Model: MM137-40948
• Product Type: DisplayPort to HDMI Video Adapter
• Input Connector: DisplayPort Male
• Output Connector: HDMI Female
• Input Interface Standard: DisplayPort 1.4
• Output Interface Standard: HDMI 2.1, as listed for this model
• Maximum Advertised Resolution: 8K (7680 × 4320) at 60Hz
• Other Listed Resolutions: 4K (3840 × 2160), 2K (2560 × 1440)
• Listed Bandwidth: 48Gbps in the supplied product specifications; confirm the exact model's supported video bandwidth and output modes before relying on this figure.
• Core Material: Tinned copper
• Shielding: Aluminium foil, ground wire, and metal braid
• Connector Finish: Nickel-plated, as listed
• Housing Material: Aluminium alloy
• Adapter Length: 20cm
• Type-C Power Cable Length: 1m
• Listed Weight: 248g
• Listed Dimensions: 25 × 12 × 4cm
• Colour: Silver

WHY CHOOSE THIS PRODUCT?

• Flexible Display Connectivity: Connects a compatible DisplayPort-equipped computer to an HDMI display without replacing the source device.
• High-Resolution Display Support: Suitable for evaluating 8K display setups where the source, display, and cable support the required resolution and refresh rate.
• Useful for Workstations and Meeting Rooms: Supports common display-connection needs for offices, presentation spaces, and compatible monitor installations.
• Compact Connection Design: The short adapter length helps keep the connection close to the source device.
• Practical Procurement Identification: The MM137-40948 model number helps purchasing teams check product compatibility and ordering accuracy.
