Home Networking Network Antennas Ubiquiti Networks RD-2G24 Rocket Dish Air Max 2x2 PtP Bridge Dish Antenna (White)

Ubiquiti Networks RD-2G24 Rocket Dish Air Max 2x2 PtP Bridge Dish Antenna (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Ubiquiti Networks
  • Model: RD-2G24
  • UPC: 810354021268
      Features:
  • 2 GHz Operating Frequency
  • 24 dBi Gain
  • Built-In Rocket Mount
  • Protective Shroud
  • For Outdoor Use
  • Compatible with Rocket M Base Station
      Air Max Technology:
  • Ubiquiti's Time Division Multiple Access (TDMA) air Max protocol allows each client to send and receive data using pre-designated timeslots scheduled by an intelligent AP controller
  • Eliminates hidden node collisions and maximizes airtime efficiency
  • Provides scalability, high throughput, and low latency in unlicensed multipoint networks
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Supports high-speed, carrier-class links

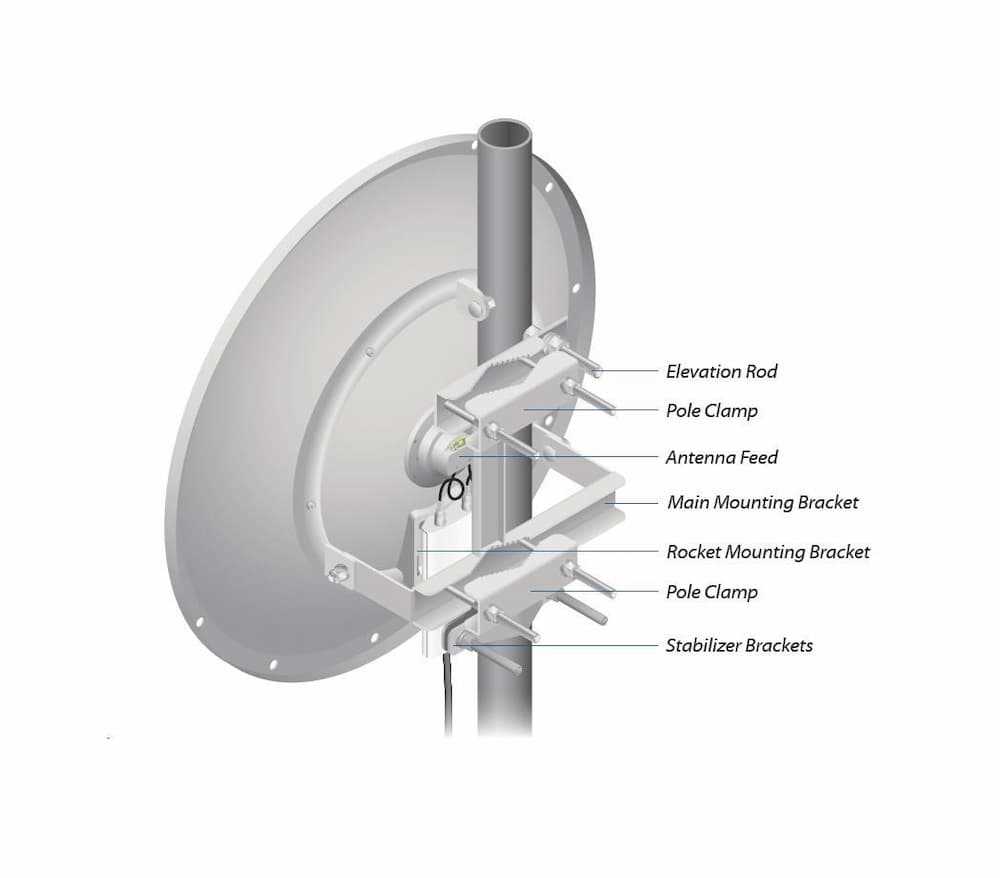

      Rocket Dish Antenna:
  • Robust mechanical design for outdoor application use
  • Plug-and-Play: Built-in Rocket mount so no tools are needed to install the Rocket Base Station
      Specification:
  • Frequency Range: 2.3 to 2.7 GHz
  • Gain: 24 dBi
  • H pol Beam width: 6.6° (3 dB)
  • V pol Beam width: 6.8° (3 dB)
  • Front-to-Back Ratio: 28 dB
  • Max VSWR: 1.4:1
  • Wind Loading: 177 lbf @ 125 mph
  • Wind Survivability: 125 mph
  • Polarization: Dual-linear
  • Cross-pol Isolation: 35 dB minimum
  • ETSI Specification: EN 302 326 DN2
  • Diameter: 25.6 x 25.6 x 11.6" (65 x 65 x 29.5 cm)
  • Weight: 21.6 lb (9.8 kg)

Features

Brand:
Ubiquiti Networks
Color:
White
Conditions:
new
GTIN, UPC, EAN, JAN or ISBN:
810354021268
Warranty:
1 Year
