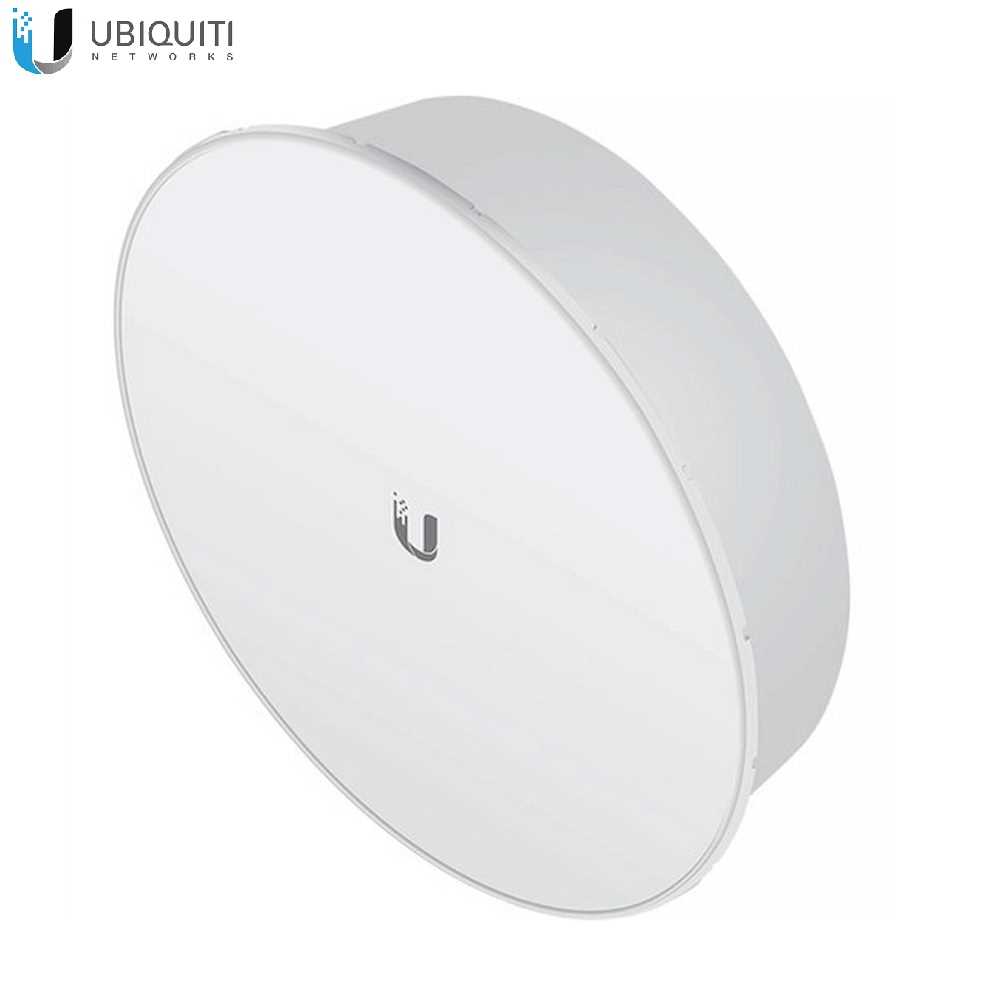

Ubiquiti Networks PBE-M5-300-ISO/ PBE-M5-400-ISO PowerBeam M5 ISO 5 GHz airMAX Bridge with RF Isolated Reflector (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Ubiquiti Networks
  • Model: PBE-M5-300-ISO/ PBE-M5-400-ISO
  • EAN Code: 8592457163053/ 810354025433

    KEY FEATURES
  • Atheros MIPS 74Kc, 560 MHz CPU
  • 64MB RAM / 8MB Flash Memory
  • 1 x 10/100 Ethernet Port
  • Passive PoE Power Method
  • 22 dBi Gain
  • 5725-5850 MHz Operating Frequency
  • Dual Linear Polarization
  • Pole Mounting Kit Included

    SPECIFICATIONS
  • Processor: Atheros MIPS 74Kc, 560 MHz
  • Memory: 64 MB DDR2, 8 MB flash
  • Networking Interface: 1 x 10/100 Ethernet port
  • Wireless Approvals: FCC, IC, CE
  • RoHS Compliance: Yes
  • Power Supply: 24 V, 0.5 A PoE
  • Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Voltage Range: 20-26 VDC
  • Power Consumption: 6 W (max.)
  • Gain: 22 dBi
  • Operating Frequency: Worldwide: 5170 - 5875 MHz
  • USA: 5725 - 5850 MHz
  • Wind Loading: 47 lbf @ 125 mph (210 N @ 200 km/h)
  • Wind Survivability: 125 mph (200 km/h)
  • LEDs: 1 x Power
  • 1 x LAN
  • 4 x WLAN
  • Signal Strength LEDs: Software-adjustable to correspond to custom RSSI levels
  • Channel Sizes: 5/8/10/20/30/40 MHz
  • Polarization: Dual Linear
  • Enclosure: Outdoor UV stabilized plastic
  • Mounting: Pole-mounted kit included
  • ESD/EMP Protection: Air: ± 24 kV
  • Contact: ± 24 kV
  • Temperature & Humidity: Operating Temperature: -40 to 158°F / -40 to 70°C
  • Operating Humidity: 5 to 95% non-condensing
  • Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
  • Vibration Test: IEC 68-2-6
  • Temperature Shock Test: IEC 68-2-14
  • UV Test: IEC 68-2-5 at 104° F (40° C), Equivalent: ETS 300 019-1-4
  • Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
  • Max VSWR: 1.5:1
  • Built-In Mechanical Downtilt: ±20°
  • Dimensions: 14.33 x 14.33 x 10.87" / 364 x 364 x 276 mm
  • Weight: 5.62 lb / 2.55 kg
  • Packaging Info
  • Package Weight: 38.2 lb
  • Box Dimensions (LxWxH): 17.7 x 15.6 x 15.1
  •

Features

Brand:
Ubiquiti Networks
Color:
White
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
8592457163053/ 810354025433
Warranty:
1 Year
