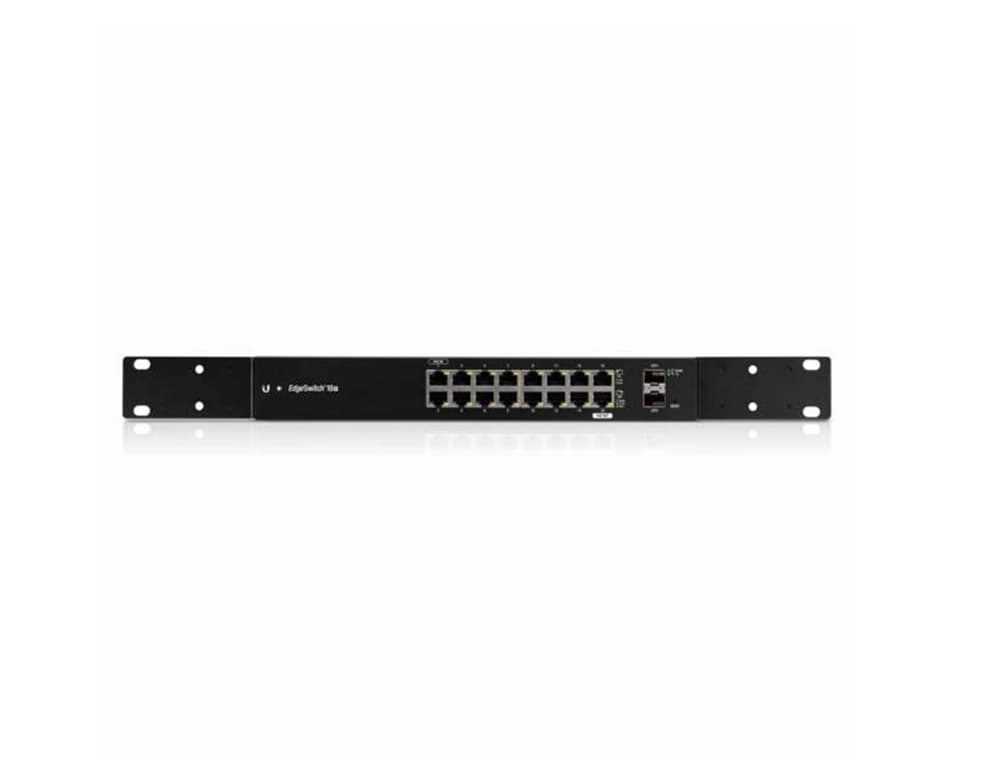

Ubiquiti Networks ES-18X EdgeSwitch 18 Port Gigabit Network Switch


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Ubiquiti Networks
  • Model: ES-18X
      Specification:
      Mechanical:
  • Dimensions: 299.8 x 160 x 43.7 mm (11.8 x 6.3 x 1.7")
  • Weight: Without Mount: 1.15 kg (2.54 lb)
  • With Mount: 1.43 kg (3.15 lb)
  • Enclosure Material: Metal
  • Mount Material: Metal
      Hardware:
  • Processor: MIPS 4Kc, 500 MHz
  • System Memory: 128 MB DDR3
  • On-Board Flash Storage: SPI 16 MB
  • Total Non-Blocking Throughput: 18 Gbps
  • Switching Capacity: 36 Gbps
  • Forwarding Rate: 26.78 Mpps
  • Max. Power Consumption: 14W (Excludes PoE Output)
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 8 kV
      Power Method External:
  • AC/DC Adapter
  • 24V Passive PoE
       Power Supply:
  • 24VDC, 1.0A Power Adapter (Included)
  • 24V Passive PoE
  • Supported Voltage Range: 9 - 30VDC
  • Passive PoE Max Wattage per Port: 15W
  • Passive PoE Voltage Range: 24V
  • Operating Temperature: -10 to 50° C
  • Operating Humidity 10: - 90% Noncondensing
      Software:
  • Mode: Layer 2 Ethernet Switch
  • VLAN: 4K VLANs
  • QoS: (16) Priority Queues per User Port
  • Jumbo Frame: 10 KB
  • PoE: Enable/Disable Passive PoE
  • Other: TFTP Recovery

Features

Brand:
Ubiquiti Networks
Conditions:
New
Warranty:
1 Year
