Home Networking Network Antennas Ubiquiti Networks AM-M-V5G-Ti AirMAX Titanium Sector Advanced RF Isolation Variable Beamwidth Antenna (White)

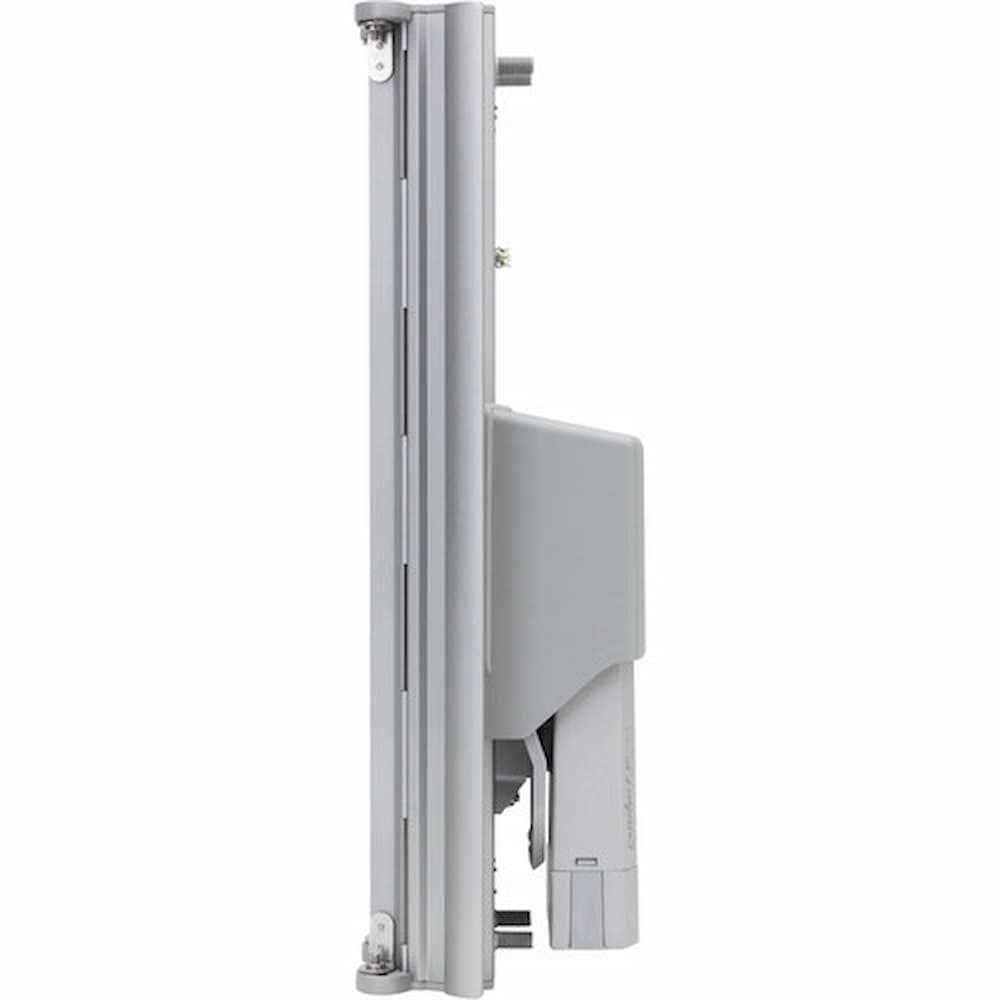

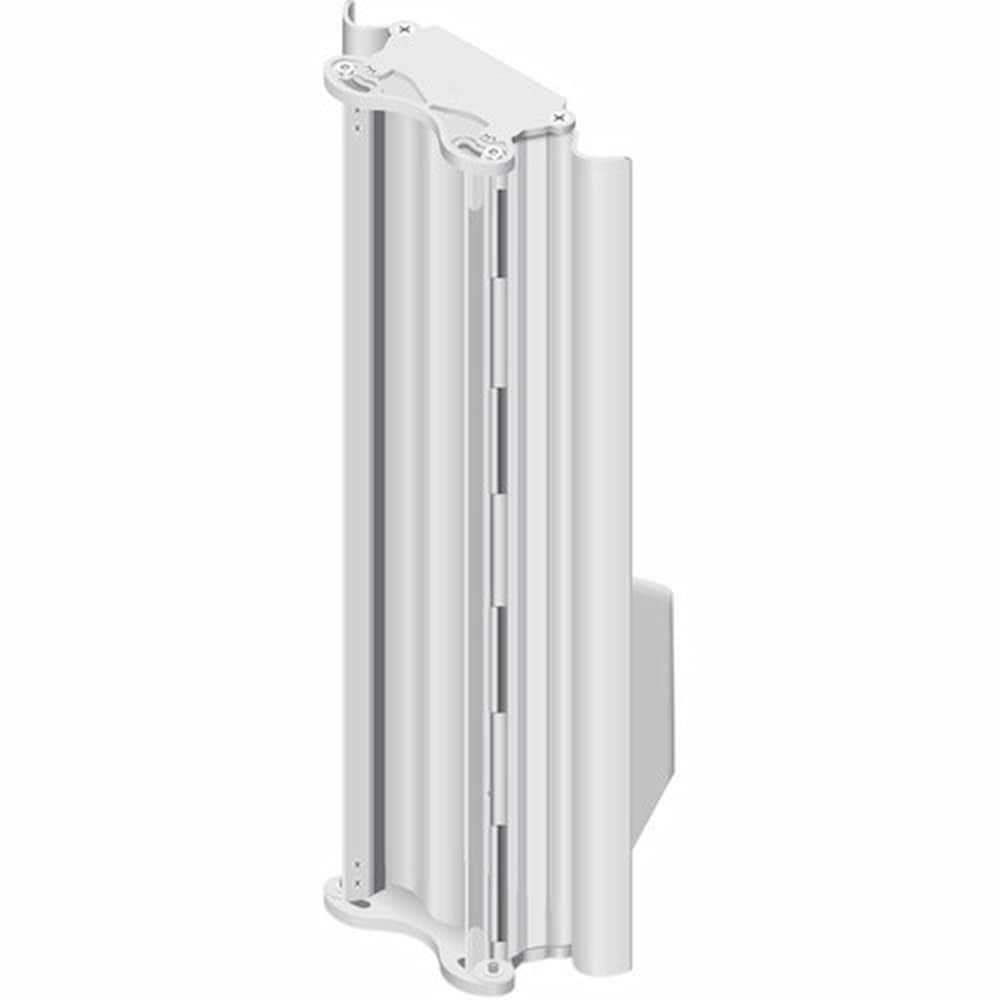

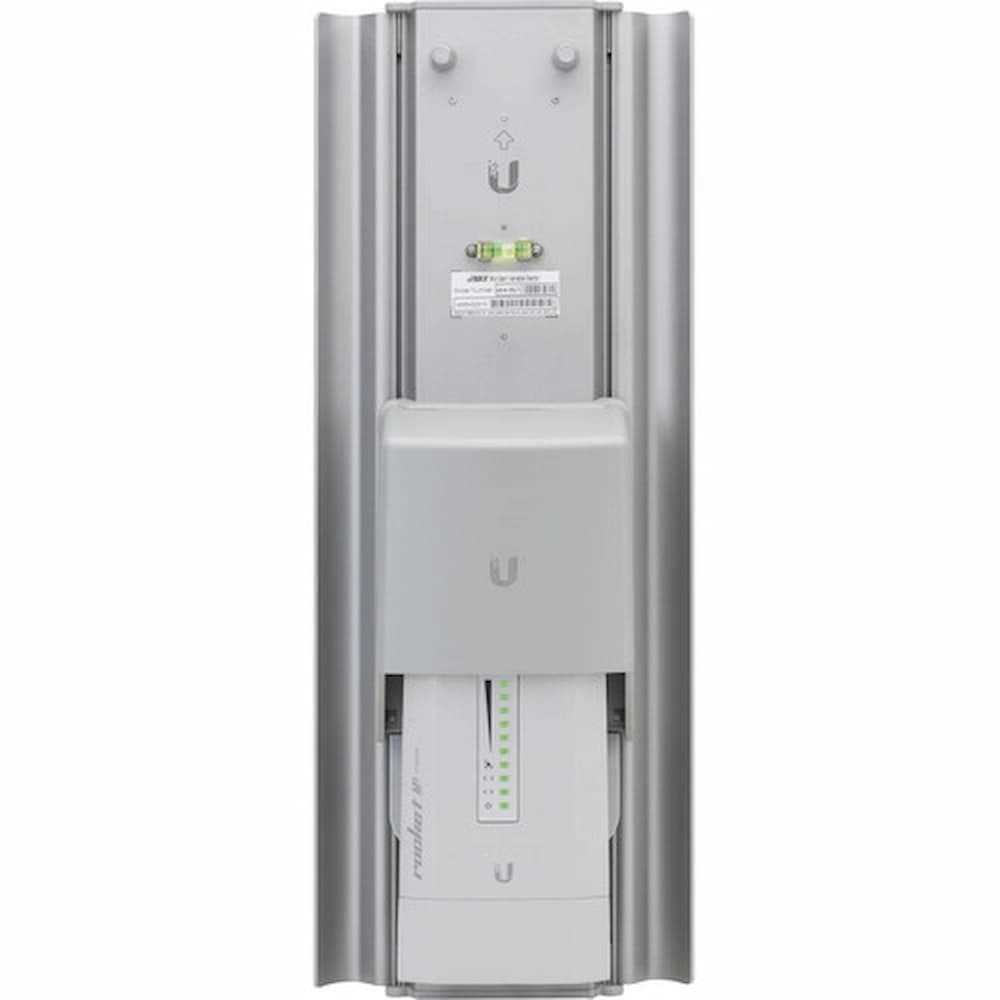

Ubiquiti Networks AM-M-V5G-Ti AirMAX Titanium Sector Advanced RF Isolation Variable Beamwidth Antenna (White)


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Ubiquiti Networks
  • Model: AM-M-V5G-Ti
  • UPC Code: 810354020940
  • Color: White
      Specifications:
  • Frequency Range: 5.4 to 5.85 GHz
      Beamwidth Angles:
  • 60°
  • 90°
  • 120°
      Gain (Beamwidth Dependent):
  • 17 dBi at 60°
  • 16 dBi at 90°
  • 15 dBi at 120°
  • Elevation Beamwidth: 8°
  • Electrical Downtilt: 3°
  • Wind Survivability: 125 mph (201 km/h)
  • Wind Loading: 15 lb/f (6.8 kg/f) at 100 mph (161 km/h)
  • Polarization: Dual Linear
  • Cross-Pol Isolation: 25 dB (typical)
  • Front-to-Back Ratio: 30 dB (typical)
  • Maximum VSWR: 1.7:1
  • RF Connectors: Weatherproof RP-SMA Connectors x 2
      Compatible Radios:
  • Rocket M5
  • Rocket M5 Titanium
  • Rocket M5 GPS
  • Mounting: Pole Mount Kit (included)
      Certifications:
  • CE
  • FCC
  • IC
      Key Features:
  • Carrier-Class 2x2 MIMO PtMP BaseStation
  • Works Seamlessly with Rocket M5 Radios
  • Frequency Range Is 5.4 to 5.85 Hz
  • Adjustable Beamwidth Configuration
  • Reduced Co-Location Interference
  • Equipped with Built-In Rocket Mount
  • Custom-Designed Protective Shroud
  • Pole Mount Kit Included













Features

Brand:
Ubiquiti Networks
Color:
White
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
810354020940
Warranty:
1Year
