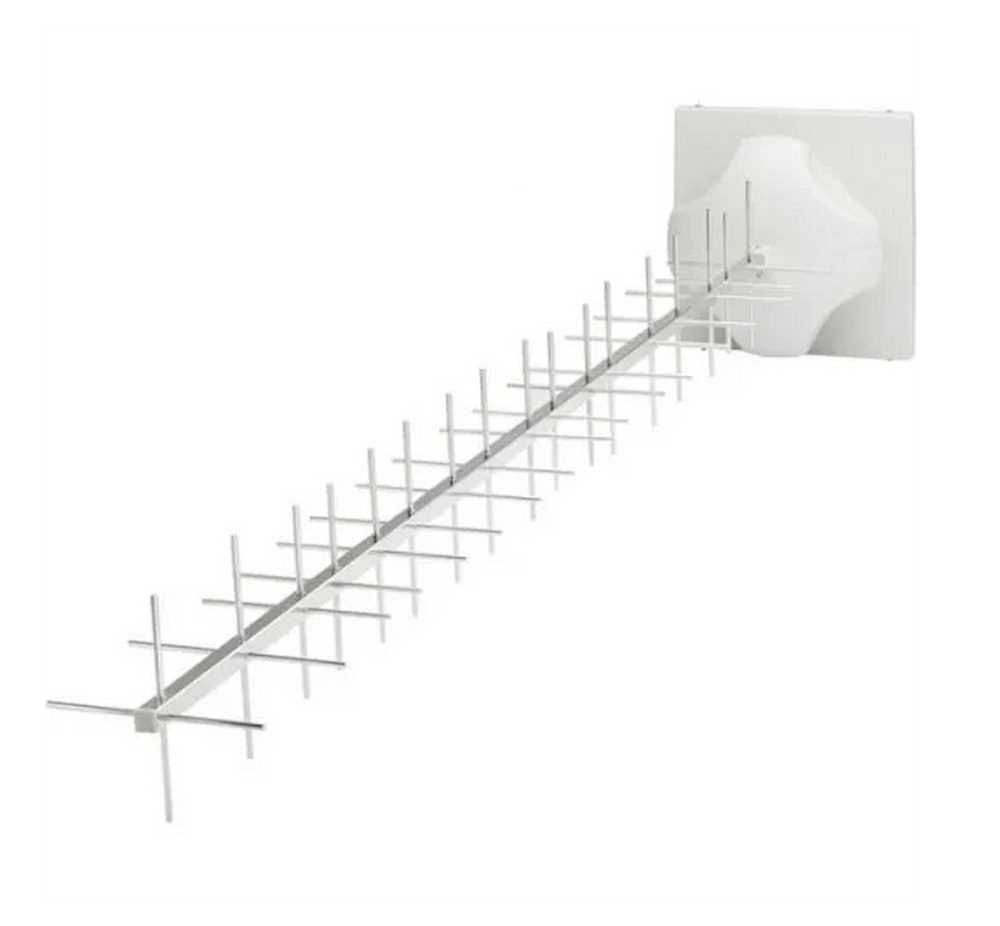

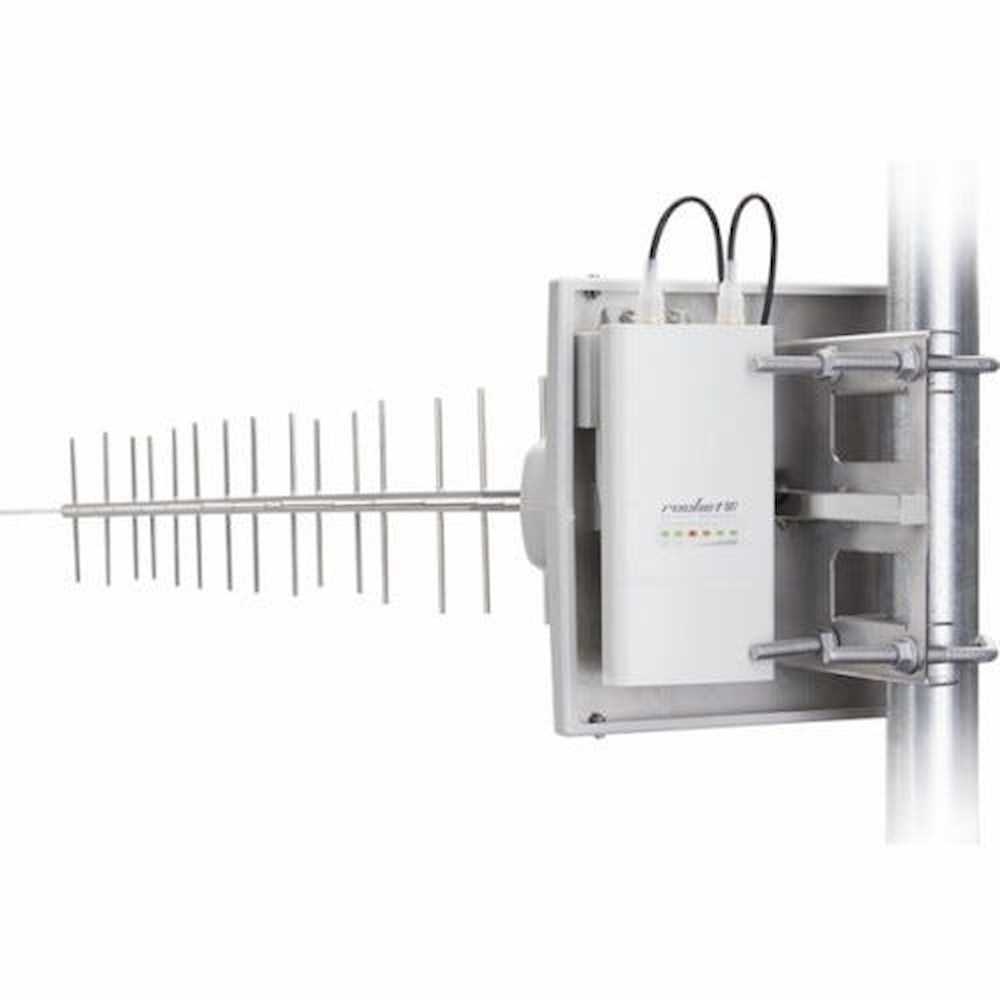

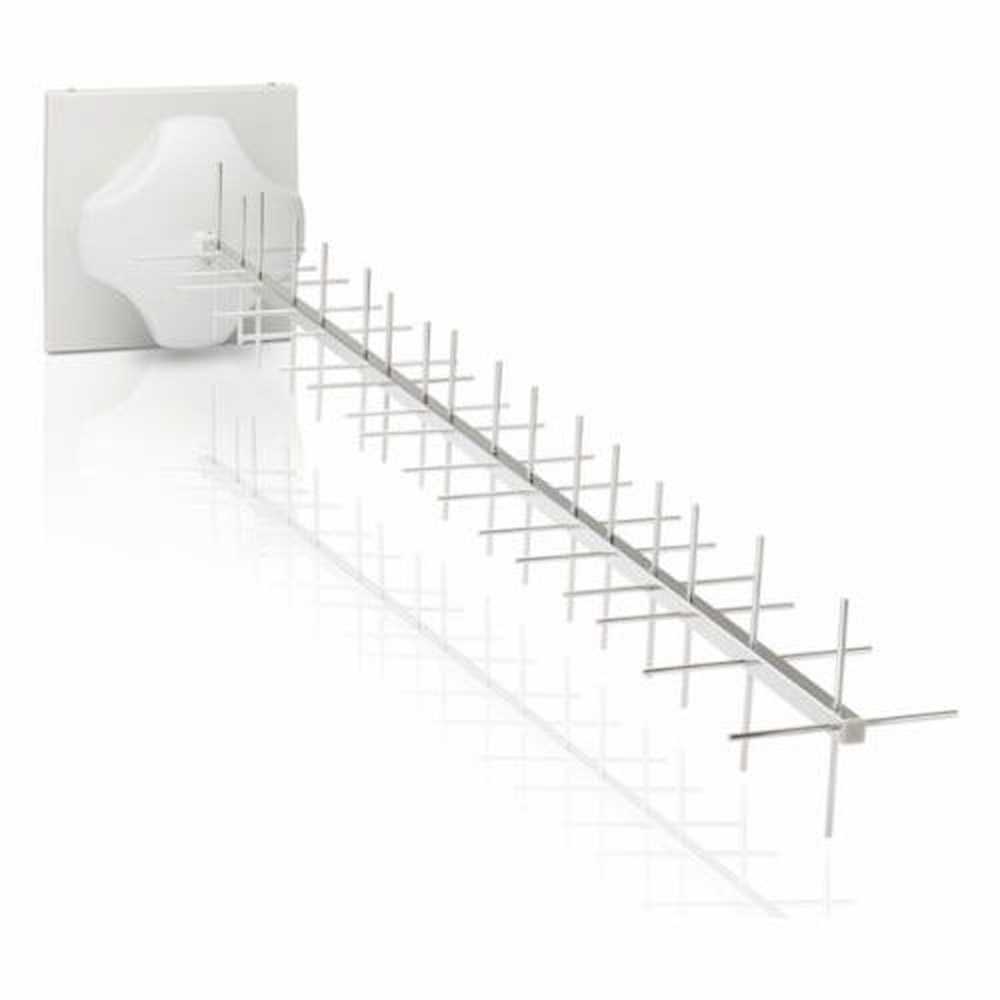

Ubiquiti Networks AirMAX AMY-9M16x2 Yagi MIMO Antenna (2 Pack)- White


Specifications

      Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 1 Year Warranty
  • Brand: Ubiquiti Networks
  • Model: AMY-9M16x2
  • Series: AirMAX
  • EAN Code: 810354021039

    KEY FEATURES
  • 902-928 MHz Antenna Frequency
  • 16 dBi Antenna Gain
  • 120 mph Wind Survivability
  • Dual Linear Polarization
  • 400 MHz Atheros MIPS 24KC Processor
  • 64MB SDRAM / 8MB Flash Memory
  • Pole Mounting Kit Included

    SPECIFICATIONS
    System Information
  • Processor: 400 MHz Atheros MIPS 24KC
  • Memory: 64 MB SDRAM, 8MB Flash
  • Networking Interface: 1 x 10/100 Ethernet port
  • Regulatory Compliance
  • Wireless Approvals: FCC Part 15.247, IC RS210
  • RoHS Compliance: Yes

    Enclosure
  • Enclosure Characteristics: Outdoor UV stabilized plastic
  • Mounting Kit: Pole mounting kit included
  • Max Power Consumption: 6.5 W
  • Power Supply: 24 V, 1 A PoE supply included
  • Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
  • Operating Temperature: -22 to 158°F / -30 to 70°C
  • Operating Humidity: 5 to 95%
  • Shock and Vibration: ETSI300-019-1.4
  • Dimensions: 6.30 x 3.15 x 1.18" / 16 x 8 x 3 cm
  • Weight: 1.1 lb / 0.5 kg

    Antenna
  • Frequency Range: 902 - 928 MHz
  • Gain: 16 dBi, both polarizations
  • Hpol Beam width: 29 to 34°
  • Vpol Beamwidth: 29 to 34°
  • F/B Ratio: 20 dB
  • Max VSWR: <1.5:1 Over Band
  • Wind Survivability: 120 mph
  • Wind Loading: 35 ft-lbs @ 100 mph
  • Polarization: Dual linear
  • Cross-pol Isolation: 20 dB
  • ETSI Specification: EN 302 326 DN2
  • Mounting: M8 U-Bolt pole mounting kit included

Features

Brand:
Ubiquiti Networks
Color:
White
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
810354021039
Warranty:
1 Year
