Home Networking Network Switches TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Previous
  1. TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
  2. TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch
Next

TP-Link TPL-TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

Brand:
TP-Link

Specifications

   Product details:
  • 1 Year Warranty
  • Brand: TP-Link
  • Model: TPL-TL-SX3016F
   16 x Full 10GE SFP+ Slots:
  • Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
   Abundant L2 and L2+ Features:
  • Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
   Robust Security Strategies:
  • Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.

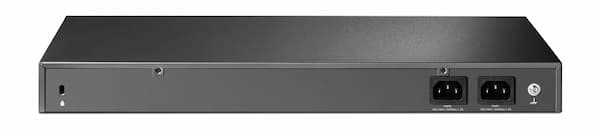

   Dual Redundant Power Supplies:
  • Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
   Centralized Cloud Management:
  • Integrates into Omada SDN for cloud access and remote management.
   Standalone Management:
  • Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
   TECHNICAL SPECIFICATIONS:
   HARDWARE FEATURES:
  • Fan Quantity: 1
  • Power Supply: 100-240 V AC~50/60 Hz
  • Dimensions ( W x D x H ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 32.74 W (220 V / 50 Hz)
  • Max Heat Dissipation: 111.71 BTU/hr (220 V / 50 Hz)
   Interface:
  • 16× 10GE SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
   PERFORMANCE:
  • Switching Capacity: 320 Gbps
  • Packet Forwarding Rate: 238.08 Mpps
  • MAC Address Table: 32 K
  • Jumbo Frame: 9 KB
   SOFTWARE FEATURES:
  • Quality of Service
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR
  • Bandwidth Control
  • Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark
   L2 and L2+ Features:
  • 802.3ad LACP
  • Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter, Root Protect
  • Loopback Detection
  • Port based
  • VLAN based
  • Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
  • Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Tx/Rx/Both
   L2 Multicast:
  • IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Fast Leave
  • IGMP Snooping Querier
  • IGMP Authentication
  • IGMP Authentication
  • MLD Snooping
  • MLD v1/v2 Snooping
  • Fast Leave
  • MLD Snooping Querier
  • Static Group Config
  • Limited IP Multicast
  • MVR
  • Multicast Filtering: 256 profiles and 16 entries per profile
   VLAN:
  • VLAN Group
  • Max 4K VLAN Groups
  • 802.1Q Tagged VLAN
  • MAC VLAN: 30 Entries
  • Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  • Private VLAN
  • GVRP
  • VLAN VPN (QinQ)
  • Port-Based QinQ
  • Selective QinQ
  • Voice VLAN
   Access Control List:
  • Time-based ACL
  • MAC ACL
  • Source MAC
  • Destination MAC
  • VLAN ID
  • User Priority
  • Ether Type
  • IP ACL
  • -Source IP
  • Destination IP
  • Fragment
  • IP Protocol
  • TCP Flag
  • TCP/UDP Port
  • DSCP/IP TOS
  • User Priority
  • Combined ACL
  • Packet Content ACL
  • IPv6 ACL
  • Policy
  • Mirroring
  • Redirect
  • Rate Limit
  • QoS Remark
  • ACL apply to Port/VLAN
   Security:
  • IP-MAC-Port Binding
  • 512 Entries
  • DHCP Snooping
  • ARP Inspection
  • IPv4 Source Guard: 100 Entries
  • IPv6-MAC-Port Binding
  • 512 Entries
  • DHCPv6 Snooping
  • ND Detection
  • IPv6 Source Guard: 100 Entries
  • DoS Defend
  • Static/Dynamic Port Security
  • Up to 64 MAC addresses per port
  • Broadcast/Multicast/Unicast Storm Control
  • kbps/ratio control mode
  • 802.1X
  • Port base authentication
  • Mac base authentication
  • VLAN Assignment
  • MAB
  • Guest VLAN
  • Support Radius authentication andaccountability
  • AAA (including TACACS+)
  • Port Isolation
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • IP/Port/MAC based access control
   IPv6:
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACL
  • IPv6 Interface
  • Static IPv6 Routing
  • IPv6 neighbor discovery (ND)
  • Path maximum transmission unit (MTU) discovery
  • Internet Control Message Protocol (ICMP) version 6
  • TCPv6/UDPv6
  • IPv6 applications
  • DHCPv6 Client
  • Ping6
  • Tracert6
  • Telnet (v6)
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • Http/Https
  • IPv6 TFTP
   L3 Features:
  • 16 IPv4/IPv6 Interfaces
  • Static Routing
  • 48 static routes
  • Static ARP
  • 128 Static Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
  • DHCP L2 Relay
   Management:
  • Web-based GUI
  • Command Line Interface (CLI) through the console port, telnet
  • SNMP v1/v2c/v3
  • Trap/Inform
  • RMON (1,2,3,9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Cable Diagnostics
  • EEE
  • Password Recovery
  • SNTP
  • System Log
   Advanced Features:
  • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Intelligent Network Monitoring
  • Abnormal Event Warnings
  • Unified Configuration
  • Reboot Schedule
  • ZTP (Zero-Touch Provisioning)
   MIBs:
  • MIB II (RFC1213)
  • Interface MIB (RFC2233)
  • Ethernet Interface MIB (RFC1643)
  • Bridge MIB (RFC1493)
  • P/Q-Bridge MIB (RFC2674)
  • RMON MIB (RFC2819)
  • RMON2 MIB (RFC2021)
  • Radius Accounting Client MIB (RFC2620)
  • Radius Authentication Client MIB (RFC2618)
  • Remote Ping, Traceroute MIB (RFC2925)
  • Support TP-Link private MIB
   OTHERS:
  • Certification: CE, FCC, RoHS
   PACKAGE INFO:
  • TL-SX3016F Switch
  • 2× Power Cords
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
   ENVIRONMENT:
  • Operating Temperature: 0–45 (32–113 );
  • Storage Temperature: -40–70  (-40–158 )
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing


Features

Brand:
TP-Link
GTIN, UPC, EAN, JAN or ISBN:
840030702488
Warranty:
1 Year
