Home Networking Network Switches TP-Link TPL-TL-SG2218P 16 Port Gigabit Smart Managed Switch (Black)

TP-Link TPL-TL-SG2218P 16 Port Gigabit Smart Managed Switch (Black)


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: TP-Link
  • Model: TPL-TL-SG2218P
  • UPC Code: 840030702471
   Specification:
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
  • Fan Quantity: 1
  • Power Supply: 100-240V AC, 50/60Hz
   Interface:

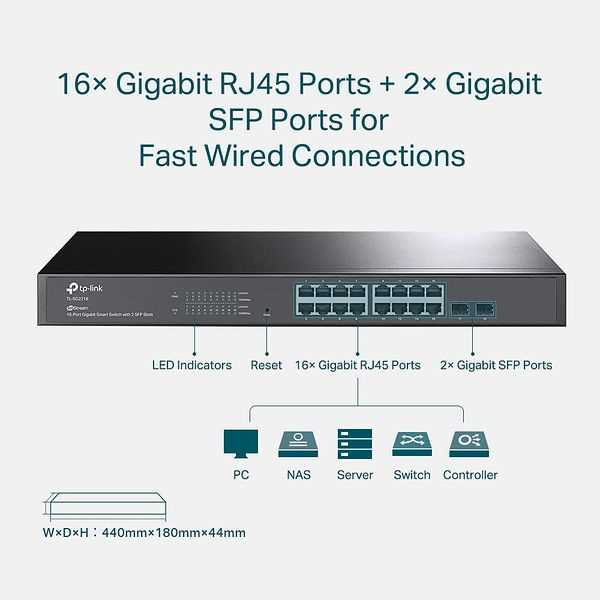

  • 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2× Gigabit SFP Slots
  • Mounting: Rack Mountable
        Max Power Consumption:
  • 181.4 W (110 V/60 Hz) (with 150 W PD connected)
  • 178.3 W (220 V/50 Hz) (with 150 W PD connected)
   Max Heat Dissipation:
  • 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
  • 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)
   PERFORMANCE:
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.78 Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1 Mbit
  • Jumbo Frame: 9 KB
   Quality of Service:
  • 802.1p CoS/DSCP priority
  • 8 priority queues
  • Priority Schedule Mode
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • Queue Weight Config
  • Bandwidth Control
  • Port/Flow based Rating Limit
  • Smoother Performance
  • Storm Control
  • Multiple Control Modes(kbps/ratio)
  • Broadcast/Multicast/Unknown-Unicast Control
   L2 and L2+ Features:
  • 16 IP Interfaces
  • Support IPv4/IPv6 Interface
  • Static Routing
  • 32 IPv4/IPv6 Static Routes
  • DHCP Server
  • DHCP Relay
  • DHCP Interface Relay
  • DHCP VLAN Relay
  • DHCP L2 Relay
  • Static ARP
  • Proxy ARP
  • Gratuitous ARP
  • Link Aggregation
  • Static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups and up to 8 ports
  • per group
  • Spanning Tree Protocol
  • 802.1D STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter/Protect,
  • Root Protect
  • Loopback Detection
  • Flow Control
  • 802.3x Flow Control
  • Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Flow-Based
  • Ingress/Egress/Both
  • Device Link Detect Protocol (DLDP)
  • 802.1ab LLDP/ LLDP-MED



Features

Brand:
TP-Link
Color:
Black
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
840030702471
Warranty:
3 Years
