Home Networking Network Switches TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots (Black)

TP-Link TL-SG3428XF JetStream 24-Port SFP L2+ Managed Switch With 4 10GE SFP+ Slots (Black)


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: TP-Link
  • Model: TL-SG3428XF
  • UPC Code: 084003070330
   Specification:
  • Fan Quantity: 1 Fan

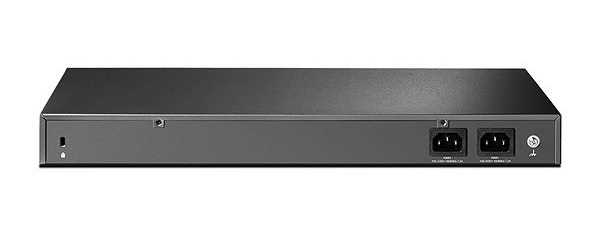

  • Power Supply: Dual Reduant Power Supplies
  • Mounting: Rack Mountable
  • Max Power Consumption: 35.7 W (110 V/60 Hz)
  • Max Heat Dissipation: 121.81 BTU/hr (110 V/60 Hz)
   Interface:
  • 20× Gigabit SFP Ports
  • 4× Gigabit SFP/RJ45 Combo Ports
  • 4× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
   PERFORMANCE:
  • Switching Capacity: 128 Gbps
  • Packet Forwarding Rate: 95.23 Mpps
  • MAC Address Table: 16 K
  • Packet Buffer Memory: 12 Mbit
  • Jumbo Frame: 9 KB
   Quality of Service:
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling
  • SP (Strict Priority)
  • WRR (Weighted Round Robin)
  • SP+WRR
  • Bandwidth Control
  • Port/Flow based Rating Limiting
  • Smoother Performance
  • Action for Flows
  • Mirror (to supported interface)
  • Redirect (to supported interface)
  • Rate Limit
  • QoS Remark
   L2 and L2+ Features:
  • Link Aggregation
  • static link aggregation
  • 802.3ad LACP
  • Up to 8 aggregation groups, containing 8 ports per group
  • Spanning Tree Protocol
  • 802.1d STP
  • 802.1w RSTP
  • 802.1s MSTP
  • STP Security: TC Protect, BPDU Filter, Root Protect
  • Loopback Detection
  • Port based
  • VLAN based
  • Flow Control
  • 802.3x Flow Control
  • HOL Blocking Prevention
  • Mirroring
  • Port Mirroring
  • CPU Mirroring
  • One-to-One
  • Many-to-One
  • Tx/Rx/Both



Features

Brand:
TP-Link
Color:
Black
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
084003070330
Warranty:
3 Years
