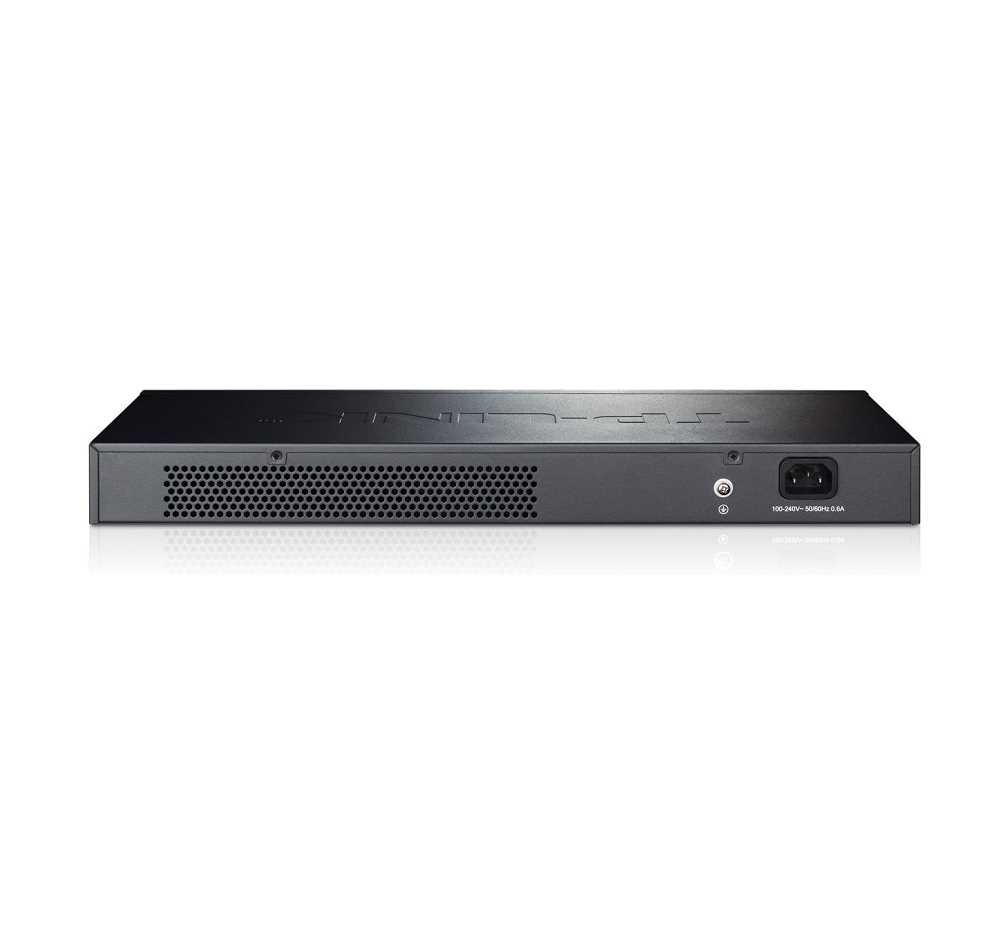

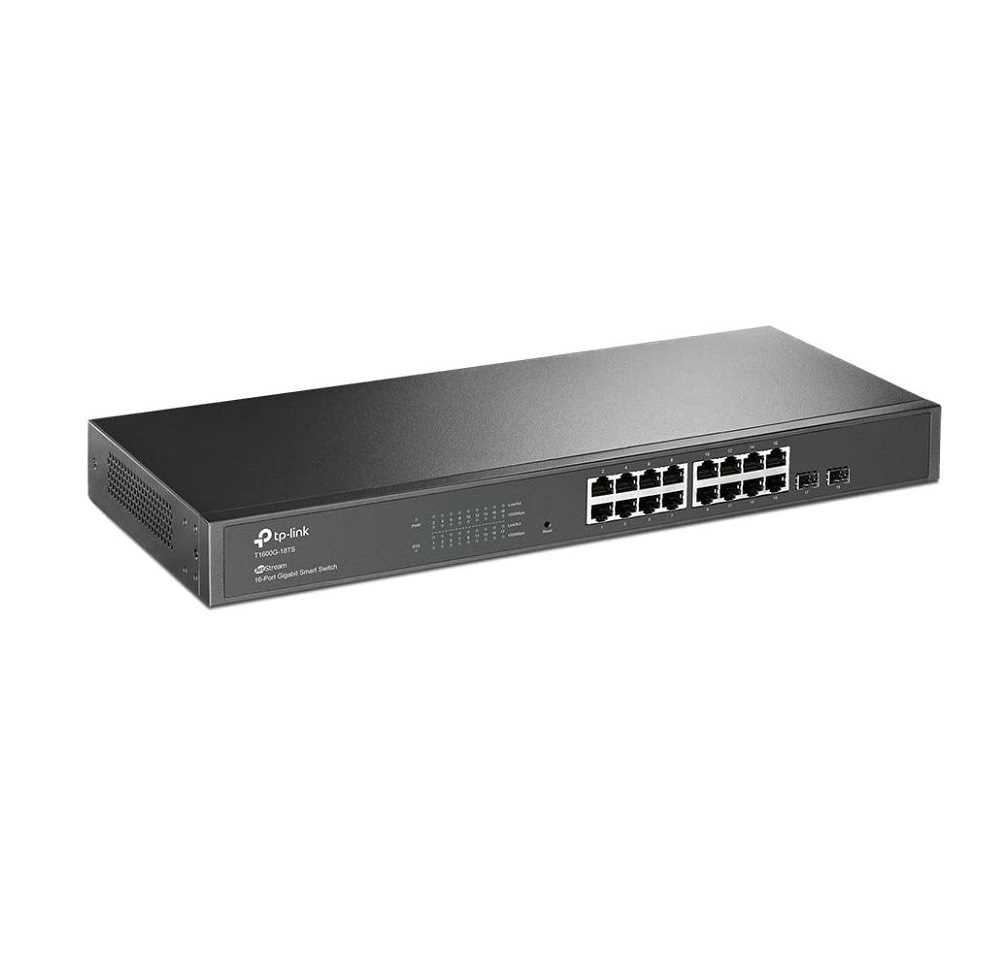

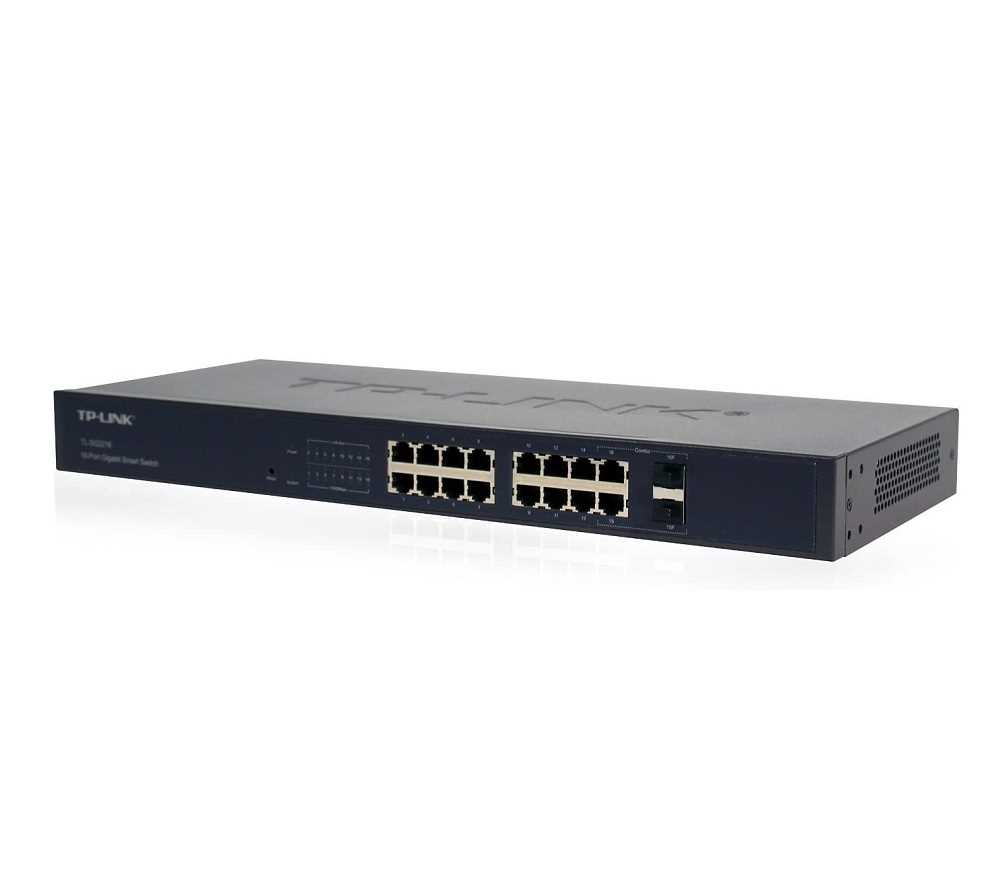

TP-Link TL-SG2016P JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+ (Black)

Monitor

Printer and Scanner

Printer Accessories

Computer Peripherals

Mounts, Stands & Racks

Desktop

Workstations

Mobiles & Tablets

Adapters & Cables

Services & Supports

Barcode Scanners & Mobile Computers

Security Software

MTP/MPO Fiber Cables

MTP/MPO Cables Custom Hot

Fiber Patch Cables

Specialty Fiber Cables

Armored Cables Hot

Industrial Cables Hot

High Density Cables

FTTA Cables

Multifiber Cables

Mode Conditioning Cables

PM Cables

Fiber Pigtails

12 Fibers Pigtails Hot

Simplex Pigtails Hot

Pigtails Custom

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks

Reel Type Cleaners

Accessories

Fiber Adapters Hot

PLC Splitters Hot

Fiber Attenuators Hot

Cameras & Surveillance

Digital Cameras

Film Cameras

IP Camera - Wifi Spy Camera

Explosion Protected Camera

Network Antennas

Networking Cards

Hardware Firewalls

Wireless

License

Accessories

Indoor Access Points

Outdoor Access Points

Wireless Controllers

Airware Cloud

Wi-Fi Routers

Network Switches

License

Network Switch Accessories

Switch Modules & Line Cards

Wired Routers

Gateways/controllers

Media Converters, Extenders

Copper to Fiber Media Converters Hot

Media Converter Chassis

PoE Extenders

Modems

PoE Adapters

Smart Power Socket

Repeater

Wireless Adapter

USB Hubs

Sensor

wireless routers

License

Network Adapter

Mellanox NICsHot

InfiniBand Adapters

QLogic FC HBAs

Intel%AE/Intel Based NICsHot

Mobile Wi-Fi Hotspots

Transceiver

Networking Accessories

Network Software Licenses

Network Audio

Network Speaker

Satellite Radios

Servers & Storage

Storage Array Modules

Power

UPS Systems

Auto Transfer SwitchNew

Hospital-Grade Power Cords

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Fiber TAPs

Conferencing, Phones

Wireless & Access

50G SFP56 for 5G Wireless

25G SFP28 for 5G Wireless

10G SFP+ for 4G Wireless

GPON Hot

XGSPON Ho

XGPON & XGPON Combo New

EPON & 10G EPON New

Wireless & Access Custom Hot

XGSPON Combo

100/200/400/800G Modules

Industrial 100G QSFP28

Converter/Fibre Channel

100/200/400/800G Custom

10/25/40G Modules

10G CWDM/DWDM SFP+ Hot

Converter/Fibre Channel

10/25/40G Custom

1/2/4G Modules

Optical Transmission

10G CWDM/DWDM SFP+ Hot

25G CWDM/DWDM SFP28

100G DWDM QSFP28

1G CWDM/DWDM SFP

Coherent 200/400G DWDM Hot

Optical Transmission Custom

Data Center

Intel AE/Intel Based NICs Hot

DAC/AOC/AEC Cables

Others

10G XFP/X2/XENPAK Hot

Accessories

Fiber Optic Panels

LC Fiber Optic Panels

SC Fiber Optic Panels

ST Fiber Optic Panels

MTP/MPO Fiber Optic Panels

MDC Fiber Optic Panels

Multimedia Copper/Fiber Panels

Fiber Optic Cassettes

MTP/LC/SC/MDC Cassettes Hot

MTP Conversion Cassettes

MTP Mesh Cassettes

LC Splice Cassettes

TAP Cassettes

Fiber Optic Enclosures

Rack Mount Hot

Wall Mount

Accessories

Cable Management

Label Printers & Accessories

Racks & Cabinets

Enterprise Switches

1/2.5G Enterprise SwitchesHot

10G Enterprise SwitchesHot

25G Enterprise Switches

40G Enterprise Switches

100G Enterprise Switches

Modular Enterprise Switches

Accessories

PoE+ Switches

Data Center Switches

10G Data Center SwitchesHot

25G Data Center SwitchesHot

40G Data Center SwitchesHot

100G Data Center SwitchesHot

400G Data Center Switches

Modular Data Center Switches

InfiniBand Switches

Accessories

Small Business

Industrial Ethernet Switches

1G Industrial Switches Hot

2.5G Industrial Switches

10G Industrial Switches

Accessories

Router, Security, NPB

Routers

Firewalls

Network Packet Brokers

Cooling Solutions

Fiber Testers

Fiber Optic Tools

Fiber Optic Cleaners

Pen Cleaners Hot

Sticks&Wipes

Reel Type Cleaners

Copper Tools

Network Tool Kits Hot

Punch Down Tools

Cable Strippers Hot

Copper Testers

Cable Testers Hot

Cable Qualifiers Hot

Cable Certifiers

Access Networks

FMT Series Hot

M6200 Series Hot

MS8100 Series

Data Center Interconnect

PON Networks

GPON & EPON OLT Hot

GPON & EPON ONT/ONU Hot

ODN

PON Transceivers

Passive Components

PLC Splitters Hot

Fiber Attenuators Hot

FWDM Filters

xWDM/xPON

Splice Closures

Transceivers

Open Line System

Optical Amplifiers Hot

Dispersion Compensation

Fiber Monitoring

Optical Protection

DWDM Open Line System

Chassis & Accessories

Mux Demux & OADM

DWDM Mux Demux Hot

CWDM Mux Demux Hot

DWDM/CWDM OADM

Custom Mux Demux & OADM

Chassis & Accessories

Transponders & Muxponders

1G/10G/25G Transponder

100G/200G/400G Transponder

10G/200G/400G Muxponder

Chassis & Accessories

Specifications

Product details:

100% brand new from factory and high quality
Economical Price
Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
3 Years Warranty
Brand: TP-Link
Model: TL-SG2016P

Features
120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Specifications
Standards and Protocols: IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface
16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Power Supply
External Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45)

Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 120 W*

General
Dimensions ( W x D x H ): 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
Max Power Consumption: 146.5 W (110 V/60 Hz) (with 120 W PD connected)
Max Heat Dissipation: 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
Fan Quantity: Fanless

Performance
Bandwidth/Backplane: 16 Gbps
MAC Address Table: 8k
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB

Software Features
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limit
Smoother Performance
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
DHCP Relay
DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports

Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter/Protect,

Root Protect
Loopback Detection

Flow Control
802.3x Flow Control

Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Flow-Based
Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast
511 IPv4, IPv6 shared multicast groups
IGMP Snooping
IGMP v1/v2/v3 Snooping

Fast Leave
IGMP Snooping Querier
Static Group Config
Multicast VLAN Registration (MVR)
Multicast Filtering

MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP)

Version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

VLAN
VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN: 12 Entries
Protocol VLAN
GVRP
Voice VLAN

Access Control List
Support up to 230 entries
Time-Range
Time Slice
Week Time-Range
Absolute Time-Range
Holiday
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
IP Protocol
TCP Flag
TCP/UDP Source Port
TCP/UDP Destination Port
DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
Permit/Deny
Policy Action
Mirror
Rate Limit
Redirect
QoS Remark
ACL Rules Binding
Port Binding
VLAN Binding
Actions for flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

Security
AAA
802.1X
Port-based authentication
MAC (Host) based authentication
Authentication Method includes PAP/EAP-MD5
MAB
Guest VLAN
Support Radius authentication and
IP/IPv6-MAC Binding
512 Binding Entries
DHCP Snooping
DHCPv6 Snooping
ARP Inspection
ND Detection
IP Source Guard
253 Entries
Source IP+Source MAC
IPv6 Source Guard
183 Entries
Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with
SSLv3/TLS 1.2
Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
IP/Port/MAC-based access control

Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)

Management
Omada App
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1,2,3,9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

Others
Certification: CE, FCC, RoHS

System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment
Operating Temperature: 0–40 Degree C (32–104 Degree F);
Storage Temperature: -40–70 Degree C (-40–158 Degree F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Package Contents
TL-SG2016P
Power Adapter
Installation Guide
Rubber Feet

Features

Brand:

TP-Link

Color:

Black

Conditions:

New

Warranty:

3 Years
