Home Networking Network Switches TP-Link TL-SG108E 8-Port Gigabit Switch | Easy Smart Managed | Plug & Play | Desktop/Wall-Mount | Sturdy Metal w/Shielded Ports | Support QoS, Vlan, I...

TP-Link TL-SG108E 8-Port Gigabit Switch | Easy Smart Managed | Plug & Play | Desktop/Wall-Mount | Sturdy Metal w/Shielded Ports | Support QoS, Vlan, IGMP and LAG | Black


Brand:

Specifications

       Product details:
  • 100% brand new from factory and high quality
  • Economical Price
  • Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
  • 3 Years Warranty
  • Brand: TP-Link
  • Model: TL-SG108E
  • UPC Code: 6935364021856

    Features:

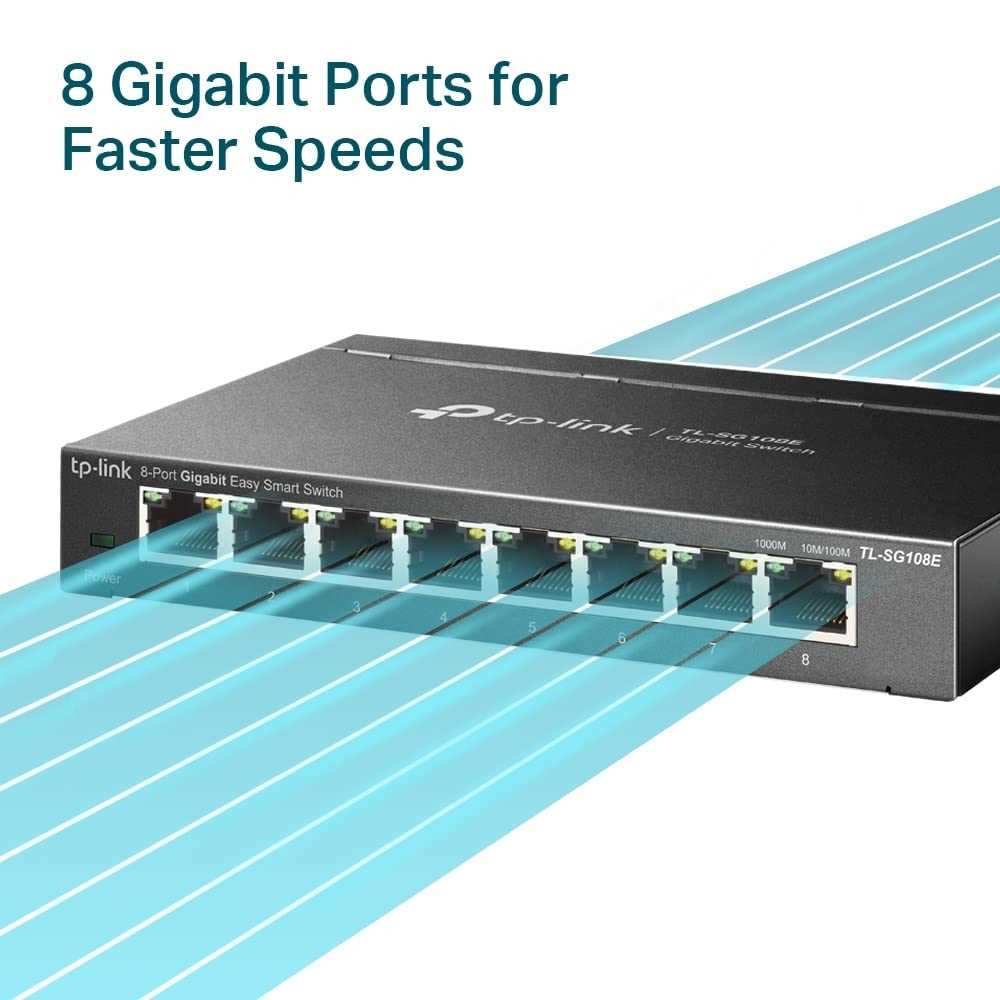

  • 8 10/100/1000Mbps RJ45 ports
  • Provides network monitoring, traffic prioritization and VLAN features
  • Innovative energy-efficient technology reduces power output by up to 58%

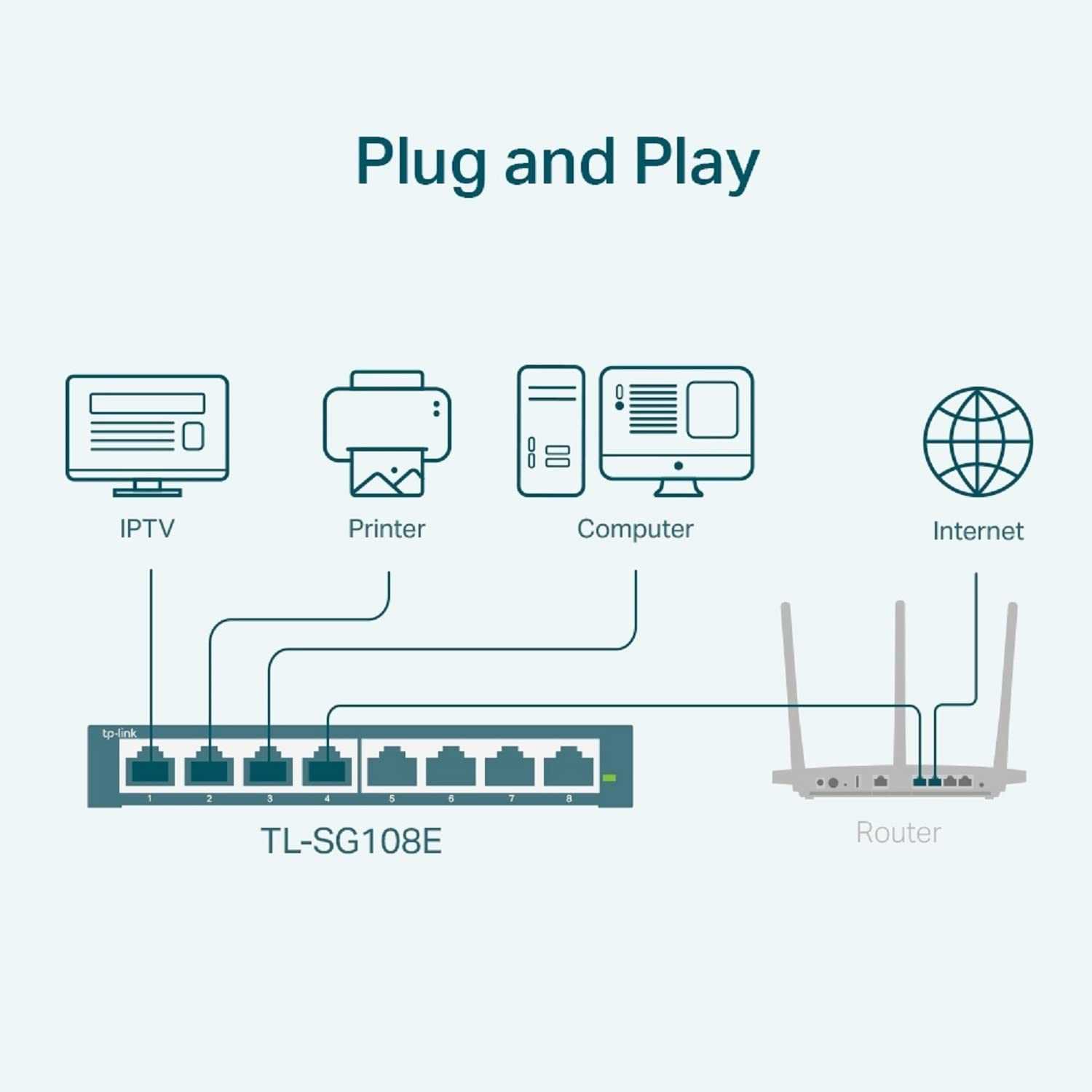

  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface1 and management utility simplify configuration

    Specifications:
    Hardware:
  • Standards and Protocols:
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

    Interface:
  • 8 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX

    Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100 STP (maximum 100m)
  • Fan Quantity: Fan less

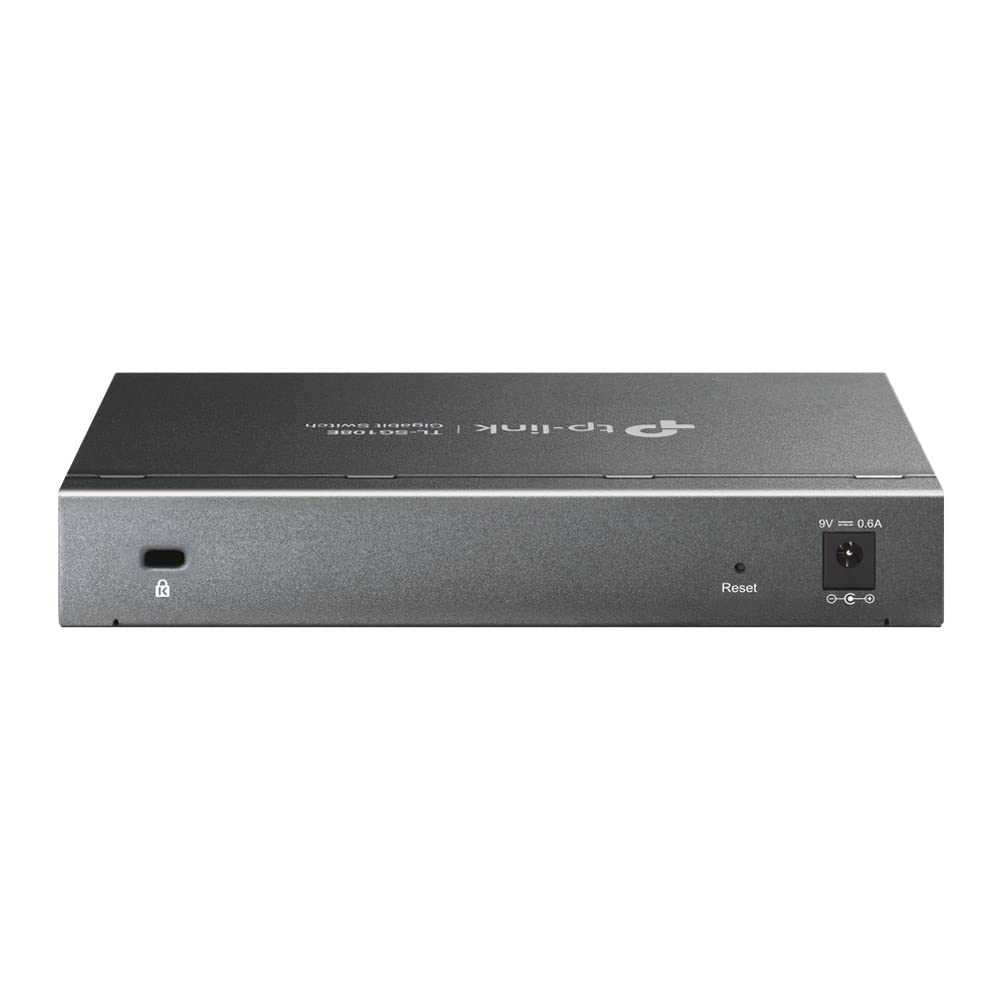

  • Power Supply: External Power Adapter(Output: 9VDC/0.6A)
  • Power Consumption: Maximum: 4.48W (220V/50Hz)
  • Dimensions ( W x D x H ): 158*101*25 mm
  • Max Power Consumption: 3.68 W (220 V/ 50 Hz)
  • Max Heat Dissipation: 12.55 BTU/h

    Performance:
  • Switching Capacity: 16Gbps
  • Packet Forwarding Rate: 11.9Mpps
  • MAC Address Table: 4K
  • Packet Buffer Memory: 1.5Mb
  • Jumbo Frame: 15KB

    Software Features:
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control

    L2 Features:
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention

    VLAN:
  • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
  • Transmission Method: Store-And-Forward

    Others:
  • Certification: FCC, CE, RoHS
  • System Requirements: Microsoft® Windows® for running Utility

    Environment:
  • Operating Temperature: 0 Degree C ~ 40 Degree C (32 Degree F ~ 104 Degree F)
  • Storage Temperature: -40 Degree C  ~70 Degree C (-40 Degree F ~ 158 Degree F)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

    Package Contents:
  • TL-SG108E
  • Power Cord
  • Installation Guide
  • Resource CD
  • Rubber Feet

Features

Brand:
TP-Link
Color:
Black
Conditions:
New
GTIN, UPC, EAN, JAN or ISBN:
6935364021856
Warranty:
3 Years
