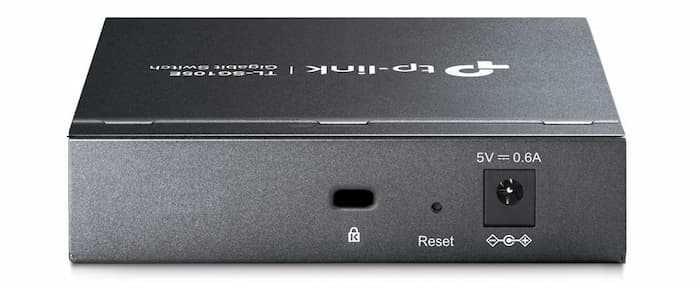

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch


Brand:

Specifications

   Product details:
  • 3 Years Warranty
  • Brand: TP-Link
  • Model: TL-SG105E
   Physical Features:
  • 10/100/1000Mbps RJ45 Ports: 5
  • Power Supply: 100-240VAC, 50/60Hz
  • Fan Quantity: Fanless
  • Certication: CE, FCC
  • Dimensions: 3.9 * 3.9 * 1.0 in. (100 * 98 * 25 mm)
   Environment:
  • Operating Temperature: 0 ~40 (32  ~104  )
  • Storage Temperature: -40 ~70 (-40  ~158  )
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~95% non-condensing
   Performance:
  • Switching Capacity: 10Gbps
  • Forwarding Rate: 7.4Mpps
  • MAC Address Table: 2K
  • Packet Buffer Memory: 1.5Mb
  • Jumbo Frame: 15KB
   L2 Switching Features:
  • IGMP Snooping: IGMP Snooping, Supports 128 Groups
  • Link Aggregation: Supports static link aggregation; 1 aggregation group, containing 4 ports per group
  • Port Mirroring: One to One, Many to One
  • Cable Test
  • Loop Prevention
   VLAN:
  • Supports up to 32 VLANs (out of 4K VLAN IDs)
  • MTU/Port/802.1Q tag VLAN
   Quality of Service (QoS):
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
   Ethernet Protocols:
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3x Flow Control
  • IEEE 802.1q VLANs/VLAN tagging
  • IEEE 802.1p QoS


Features

Brand:
TP-Link
GTIN, UPC, EAN, JAN or ISBN:
6935364022037
Warranty:
3 Years
