Home Networking Power TE Connectivity 2106135-4 SlimSeal Series, Lighting Connector, Receptacle With Solder, 1 Rows, 3.5mm - Black

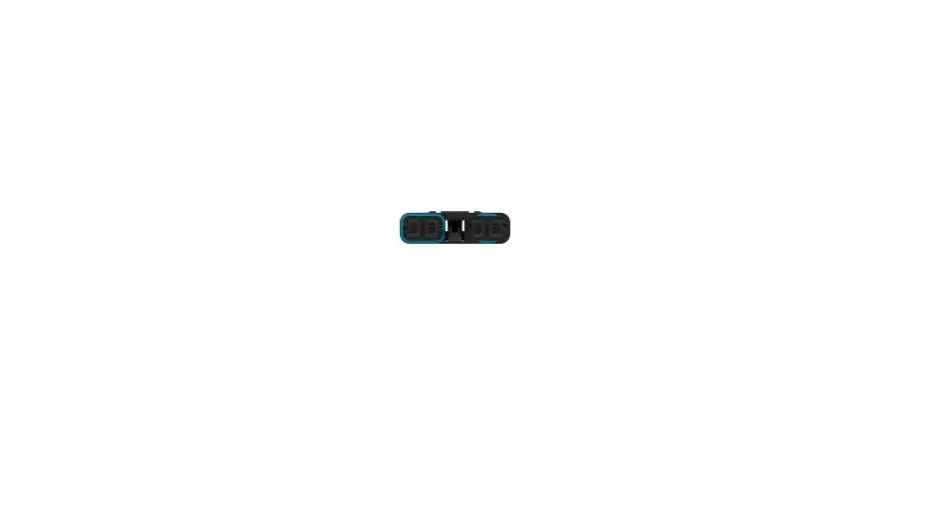

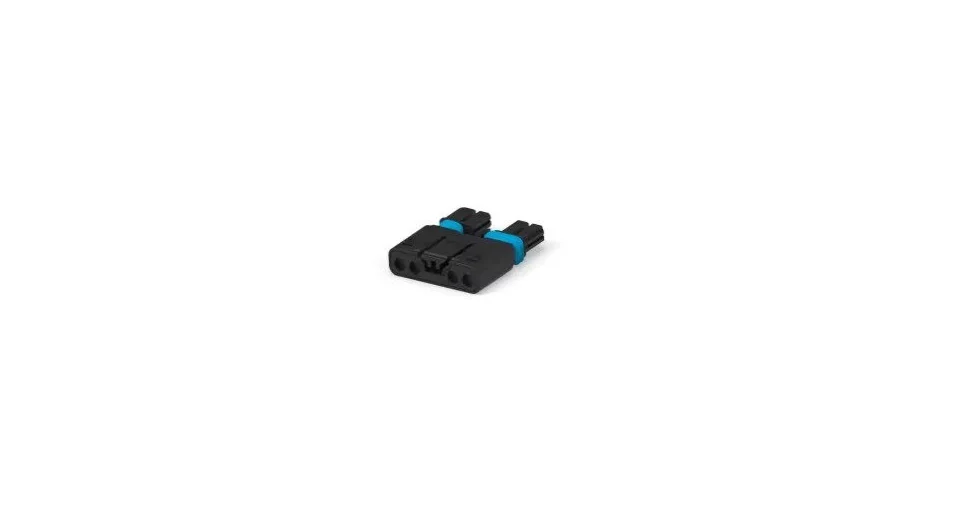

TE Connectivity 2106135-4 SlimSeal Series, Lighting Connector, Receptacle With Solder, 1 Rows, 3.5mm - Black


Specifications

      Product Details:
  • 100% brand new from factory and high quality.
  • Economical Price
  • Sold and Shipped from Singapore (hence faster delivery, Easy to Exchange)
  • No Warranty
  • Brand: TE Connectivity
  • Model: 2106135-4
  • Color: Black
      Features:
  • 1-position Designed for daisy chaining adjacent LED modules in a single fixture
  • SMT and thru hole versions permits assembly to SMT metal clad and FR4 thru hole pc boards
  • Polarized connections eliminates the possibility of mis-mating connectors
  • Positive integral latching prevents inadvertent unmating of connectors
  • Pre-assembled seals and wire guides reduces assembly time
  • IP67 Seal rating
     Specification:
  • Product Range: SlimSeal Series
  • No. of Contacts: 4Contacts
  • Gender: Receptacle (View Associated Connectors)
  • Pitch Spacing: 3.5mm
  • Contact Termination Type: Solder
  • No. of Rows: 1Rows
  • Connector Mounting: Surface Mount
  • Contact Plating: Tin Plated Contacts
  • Operating Temperature Range: -40 – 105°C[-40 – 221°F]
  • Connector System: Wire-to-Wire
  • Sealable: Yes
  • Connector & Contact Terminates To: Wire & Cable
  • Lighting Connector Style: Plug












Features

Brand:
TE Connectivity
Color:
Black
Conditions:
New
Warranty:
No Warranty
