Home Electronics Computer Peripherals Docking Station StarTech USB-C Dock 4K HDMI, Gigabit Ethernet, 100W PD

StarTech USB-C Dock 4K HDMI, Gigabit Ethernet, 100W PD

Brand:
StarTech.com

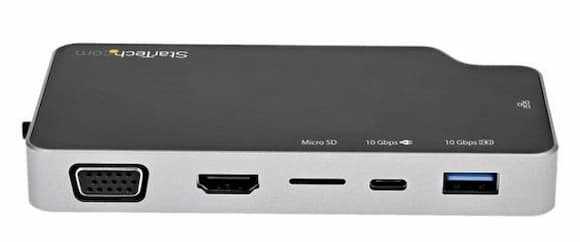

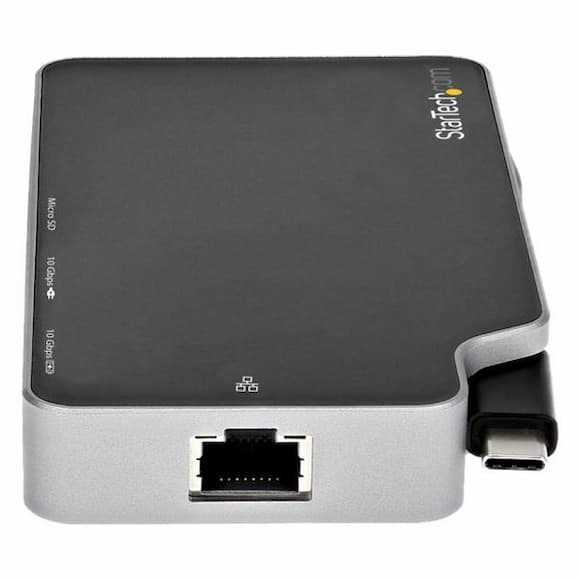

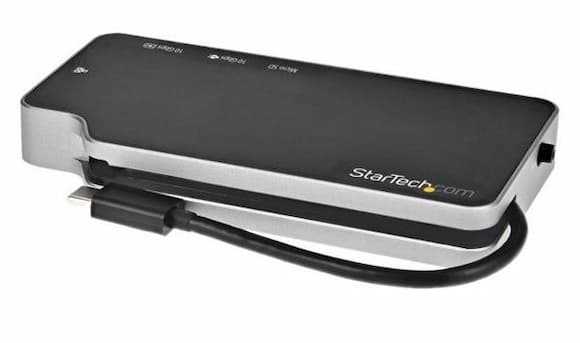

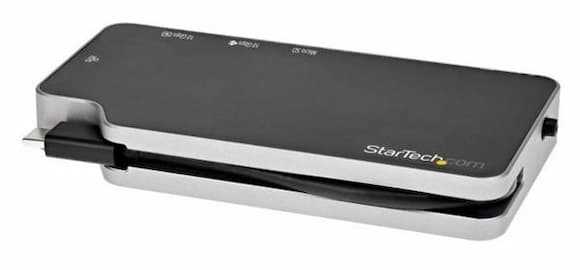

StarTech.com CDP2HVGUASPD is a 7-in-1 USB-C multiport adapter designed to expand a compatible laptop through one USB-C connection. It combines 4K HDMI, 1080p VGA, Gigabit Ethernet, USB-A 10Gbps, USB-C 10Gbps, microSD and 100W Power Delivery pass-through. A presentation-mode switch helps prevent sleep interruptions during meetings, while the compact design supports mobile professionals, IT deployments, conference rooms and hybrid workstations.

View Ratings :

OVERVIEW

  • StarTech.com CDP2HVGUASPD is a 7-in-1 USB-C mini/travel dock for adding display, Ethernet, USB, microSD and power connectivity through one USB-C port. Compatibility: USB-C hosts supporting the required display and Power Delivery functions; Thunderbolt 3 systems are supported. Model comparison: choose this model for HDMI/VGA plus GbE, 10Gbps USB and microSD; choose a full desktop dock when more displays and expansion ports are required.

USE CASES

  • Business laptop expansion: Adds essential display, networking, USB and storage connectivity to laptops with limited built-in ports.
  • Conference-room presentations: Connects compatible laptops to HDMI displays or projectors, while Presentation Mode helps prevent the host from entering sleep or power-saving modes during presentations.
  • 4K office workstations: Connects a compatible laptop to a 4K HDMI display at up to 30Hz for office productivity and visual workflows.
  • Legacy VGA display deployment: Provides up to 1920 × 1080p at 60Hz through VGA, helping organizations continue using compatible existing displays and projectors.
  • Wired enterprise networking: Provides 10/100/1000 Mbps Ethernet for users who need a wired network connection from a USB-C laptop.
  • Hybrid-work deployments: Combines several commonly required connectivity options in one compact adapter, reducing the number of accessories employees need to carry.
  • High-speed USB peripherals: Provides USB-A and USB-C 10Gbps ports for compatible storage devices and peripherals.
  • MicroSD data transfer: Provides direct access to microSD cards for transferring presentations, media and other files.
  • Laptop charging while connected: Supports up to 100W PD pass-through and up to 85W charging to the host laptop when an appropriate USB-C power adapter is connected.

KEY FEATURES

  • 7-in-1 connectivity: Combines HDMI, VGA, Gigabit Ethernet, USB-A, USB-C, microSD and USB-C PD in one adapter, reducing the need for multiple separate accessories.
  • 4K HDMI output: Supports up to 3840 × 2160 at 30Hz, providing high-resolution digital display connectivity for compatible monitors, TVs and projectors.
  • 1080p VGA output: Supports up to 1920 × 1080 at 60Hz, helping organizations connect compatible legacy display equipment.
  • One-display support: Supports one display, keeping the product configuration straightforward for single-monitor or presentation deployments.
  • Gigabit Ethernet: Supports 10/100/1000 Mbps wired networking, providing a stable LAN connection for compatible laptops.
  • USB-A 10Gbps port: Provides high-speed connectivity for compatible USB peripherals and storage devices.
  • USB-C 10Gbps port: Provides another high-speed USB connection and can support PD pass-through when used with a USB-C power adapter.
  • 100W Power Delivery pass-through: Accepts up to 100W of USB-C PD power, allowing a compatible laptop to remain powered while using the adapter.
  • Up to 85W laptop charging: Delivers up to 85W to the host after the adapter reserves 15W for its own operation, supporting compatible higher-power laptops.
  • MicroSD 4.0 card reader: Provides convenient memory-card access for compatible microSD media and file transfers.
  • Presentation Mode switch: Helps keep the connected computer from entering sleep, standby or power-saving mode during presentations.
  • PXE support: Supports compatible network-based boot environments, providing additional deployment flexibility for managed IT environments.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / Product ID: CDP2HVGUASPD
  • Product Type: USB-C Multiport Adapter / Mini Travel Dock
  • Number of Functions: 7-in-1
  • Host Interface: USB-C, USB 3.2 Gen 2, 10Gbps
  • Host Connector: USB-C
  • HDMI Port: 1
  • HDMI Maximum Resolution: 3840 × 2160 @ 30Hz
  • VGA Port: 1
  • VGA Maximum Resolution: 1920 × 1080 @ 60Hz
  • Displays Supported: 1
  • Ethernet Port: 1 × Gigabit RJ45
  • Ethernet Speed: 10/100/1000 Mbps
  • Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab
  • USB-A Port: 1 × USB 3.2 Gen 2, 10Gbps
  • USB-C Port: 1 × USB 3.2 Gen 2, 10Gbps
  • MicroSD: 1 × MicroSD card slot
  • Power Delivery: 100W pass-through
  • Host Laptop Charging: Up to 85W
  • Adapter Power Consumption: 15W
  • Fast Charging: Yes
  • PXE: Yes
  • Wake-on-LAN: Yes
  • Presentation Mode: Yes
  • USB Pass-Through: Yes
  • Chipset Realtek: RTD2141DS, RTS5423, RTL8153B, RTS5306
  • Network LEDs: Green Link, Amber Activity
  • Cable Length: 130 mm / 5.1 in
  • Product Dimensions: 125 × 68 × 16 mm
  • Product Weigh: 126 g / 4.4 oz
  • Housing: Aluminum and Plastic
  • Color: Black and Gray
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -10°C to 55°C
  • Humidity: 5%–90% RH, non-condensing
  • Compatibility: USB-C hosts; supported Windows, macOS and Chrome OS

Why Choose This Product?

  • 7-in-1 expansion: Adds display, Ethernet, USB, microSD and charging functions through one USB-C connection.
  • 4K HDMI: Supports up to 4K at 30Hz for compatible displays and presentation equipment.
  • Gigabit Ethernet: Provides reliable wired LAN connectivity for compatible business laptops.
  • USB 10Gbps: Offers high-speed USB-A and USB-C connectivity for compatible peripherals and storage.
  • 85W laptop charging: Keeps compatible laptops powered while connected when an appropriate PD adapter is used.
  • Presentation Mode: Helps prevent sleep-related interruptions during presentations.
  • Compact travel design: 126 g construction is practical for mobile workers and IT deployment kits.
  • Longer warranty: Three-year manufacturer warranty supports business lifecycle planning.

CUSTOMER REVIEW

"I used the StarTech.com CDP2HVGUASPD 7-in-1 USB-C Dock with my work laptop for meetings and daily office tasks. With 4K HDMI, Gigabit Ethernet, and 100W Power Delivery in one compact adapter, it was much easier to connect my monitor, wired network, and charger without carrying several separate accessories."

Ethan w

FAQ

No FAQs Found
