StarTech.com USBA2DPGB USB-A Dual 4K Display Docking Station

Brand:
StarTech.com

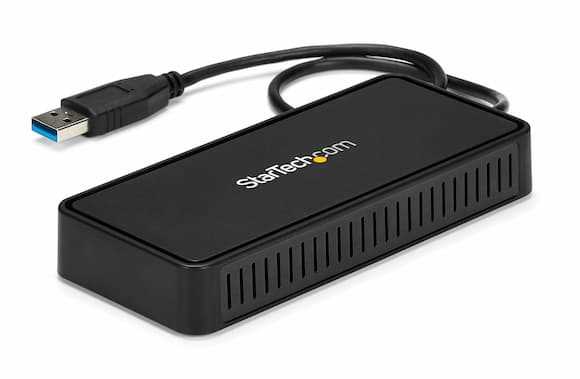

The StarTech.com USBA2DPGB is a compact USB 3.0 Type-A docking station that expands a compatible notebook, ultrabook, Chromebook or Surface device into a dual-monitor workstation. It provides two DisplayPort outputs with support for dual 4K at 60Hz, Gigabit Ethernet and an additional USB-A 5Gbps port. DisplayLink DL-6950 technology enables USB-based multi-display connectivity, while the 30 cm attached cable supports flexible placement and helps reduce strain on the host port. The dock is bus-powered, TAA compliant and backed by a 3-year warranty.

OVERVIEW

  • The StarTech.com USBA2DPGB is a portable USB 3.0 Type-A mini docking station for adding dual DisplayPort monitors, Gigabit Ethernet and USB connectivity to compatible laptops. DisplayLink technology enables dual 4K 60Hz output through USB. Compatibility: USB-A 3.0 host required; supports Windows, macOS, Chrome OS and Ubuntu. Model comparison: this dock supports two DisplayPort displays; USB-C docks are required for USB-C host connectivity.

USE CASES

  • Dual-monitor office workstations: Add two external 4K displays to compatible USB-A notebooks for expanded application and document visibility.
  • Corporate hot-desking: Provide a compact docking solution that employees can carry between shared workstations.
  • Remote and hybrid work: Turn a compatible USB-A laptop into a dual-monitor home-office setup without requiring a full-size desktop dock.
  • Financial and productivity workstations: Dual displays allow users to keep spreadsheets, dashboards, communication tools and reference information visible simultaneously.
  • Wired enterprise networking: Gigabit Ethernet provides a physical LAN connection for compatible laptops without an integrated Ethernet port.
  • Business travel: The compact mini-dock and attached 30 cm cable make it practical for mobile professionals moving between locations.
  • Surface Pro and similar USB-A devices: The extended cable can provide more flexible positioning for devices with USB-A connectivity.
  • Digital productivity environments: Dual DisplayPort outputs support high-resolution external displays for applications requiring additional screen space.
  • Small office deployments: Consolidates dual-display, wired networking and USB connectivity into a compact accessory.
  • Shared workstation standardization: Provides a repeatable USB-A docking configuration for compatible endpoint fleets.

KEY FEATURES

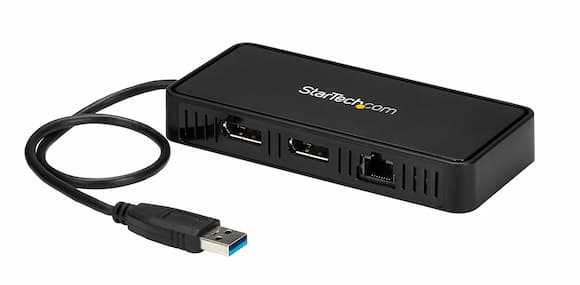

  • Dual DisplayPort outputs: Provides two independent DisplayPort connections, allowing a compatible USB-A laptop to drive two external displays.
  • Dual 4K at 60Hz: Supports up to 4096 × 2160 or 3840 × 2160 at 60Hz on dual displays, giving productivity users high-resolution workspace expansion.
  • DisplayLink DL-6950 technology: Uses DisplayLink USB graphics technology to deliver multi-monitor video from a USB-A host, expanding display capability beyond the laptop's native ports.
  • Gigabit Ethernet: Adds 10/100/1000 Mbps wired networking to compatible laptops, providing a physical network connection where the notebook lacks an RJ-45 port.
  • USB 3.0 5Gbps connectivity: Provides an additional USB-A port for compatible peripherals and data devices while maintaining up to 5Gbps USB link speed.
  • 30 cm attached USB-A cable: Provides additional reach between the dock and host device, helping accommodate laptops positioned on stands or in compact workspaces.
  • USB bus-powered design: Draws operating power through the USB host connection, eliminating the need for a separate dock power adapter.
  • Compact mini-dock form factor: Reduces desk and travel footprint compared with larger desktop docking stations.
  • Broad OS support: StarTech lists support for Windows, macOS, Chrome OS and Ubuntu, helping organizations deploy the dock across compatible operating environments.
  • TAA compliance: Supports procurement requirements where Trade Agreements Act-compliant connectivity equipment is specified.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model: USBA2DPGB
  • Product Type: USB 3.0 Mini Docking Station
  • Host Interface: USB Type-A
  • USB Standard: USB 3.0 / USB 3.1 Gen 1 / USB 3.2 Gen 1
  • Maximum USB Data Rate: 5Gbps
  • Video Outputs: 2 × DisplayPort
  • Maximum Displays: 2
  • Dual Display Resolution: Up to 4096 × 2160 @ 60Hz or 3840 × 2160 @ 60Hz
  • Single Display Resolution: Up to 5120 × 2880 @ 60Hz using two DP ports
  • Display Technology: DisplayLink
  • DisplayLink Chipset: DL-6950
  • Ethernet Port: 1 × RJ-45
  • Ethernet Speed: 10/100/1000 Mbps
  • Ethernet Full Duplex: Yes
  • Auto MDI/MDIX: Yes
  • USB-A Downstream: 1 × USB 5Gbps
  • USB-A Output Power: 5V / 0.9A, 4.5W
  • UASP: No
  • Power Source: USB-powered
  • Power Delivery: Not supported
  • Laptop Charging: No
  • Attached Cable Length: 30 cm / 11.8 in
  • Host Requirement: Available USB-A port
  • USB Backward Compatibility: USB 2.0 and USB 1.1
  • Network Standards: IEEE 802.3, 802.3u, 802.3ab
  • Compatibility: USB-A 3.0 host; Windows, macOS, Chrome OS and Ubuntu
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -10°C to 60°C
  • Operating Humidity: 10–90% RH
  • Product Length: 130 mm
  • Product Width: 58 mm
  • Product Height: 20 mm
  • Product Weight: 126 g

Why Choose This Product?

  • Dual 4K workstation expansion: Adds two high-resolution DisplayPort outputs to a compatible USB-A notebook, enabling a larger desktop workspace.
  • DisplayLink-based architecture: Provides USB graphics expansion for systems where native video outputs are limited.
  • Integrated Gigabit Ethernet: Adds wired network access without requiring a separate USB Ethernet adapter.
  • Compact deployment: The mini-dock form factor is well suited to mobile users, hot desks and space-constrained workstations.
  • No separate power brick: USB bus-powered operation reduces accessories and simplifies deployment.
  • USB peripheral expansion: The additional 5Gbps USB-A port provides connectivity for compatible peripherals and storage devices.
  • Enterprise procurement suitability: TAA compliance and a 3-year warranty support organizational purchasing and lifecycle requirements.
  • Flexible positioning: The attached 30 cm cable allows the dock to sit away from the host device, particularly useful with laptop stands and compact work areas.

CUSTOMER REVIEW

No Reviews Found

FAQ

No FAQs Found
