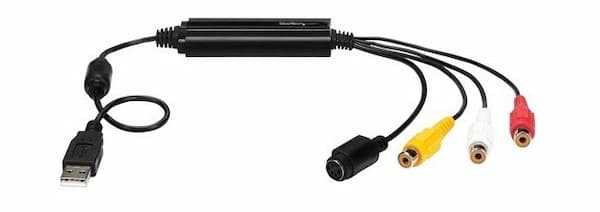

StarTech SVID2USB232 USB 2.0 Video Capture Device

• VHS tape digitization
• VCR media conversion
• Camcorder video capture
• Legacy media archiving
• Training video preservation
• Educational content conversion
• Corporate video archival
• Analog video editing
• Standard-definition streaming
• Still-image snapshot capture

• USB 2.0 video capture
• S-Video input
• Composite video input
• Stereo RCA audio input
• NTSC, PAL and SECAM support
• Up to 720×480 NTSC capture
• Up to 720×576 PAL/SECAM capture
• Up to 30 fps NTSC capture
• MPEG-1, MPEG-2 and MPEG-4 encoding
• TWAIN support
• DirectShow compatibility
• USB bus-powered design
• Compact portable form factor
• Windows 7/8/10/11 support

• Brand: StarTech.com
• Model: SVID2USB232
• Product Type: USB 2.0 analog video capture device
• USB Interface: USB 2.0 Type-A, 480Mbps
• Video Inputs: S-Video, Composite RCA
• Audio Input: Stereo RCA
• Video Standards: NTSC, PAL, SECAM
• Maximum Analog Resolution: 720×480 NTSC / 720×576 PAL
• Frame Rate: Up to 30 fps NTSC / 25 fps PAL/SECAM
• Video Encoding: MPEG-1, MPEG-2, MPEG-4
• TWAIN Support: Yes
• DirectShow: Yes
• Chipset: EM28281
• Power: USB bus powered, 5V DC
• Cable Length: 260 mm / 10.2 in
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity: 5–85% RH, non-condensing
• Product Dimensions: 100 × 35 × 14 mm
• Color: Black
• Compatibility: Windows 7/8/10/11
• macOS Support: No
• Compliance: RoHS, REACH, CE, FCC, WEEE, RCM
• Included: USB capture device, user guide, software CD, driver CD

Why Choose This Product?

• Converts legacy analog video to digital files
• Supports both S-Video and composite sources
• Captures stereo RCA audio
• Works with NTSC, PAL and SECAM sources
• Supports MPEG-1, MPEG-2 and MPEG-4 encoding
• TWAIN support enables compatible third-party workflows
• USB-powered for simple deployment
• Compact design is easy to move between workstations
