Home Networking Transceiver StarTech SFP10GSREMST 10GBASE-SR SFP+ Transceiver

StarTech SFP10GSREMST 10GBASE-SR SFP+ Transceiver

Brand:

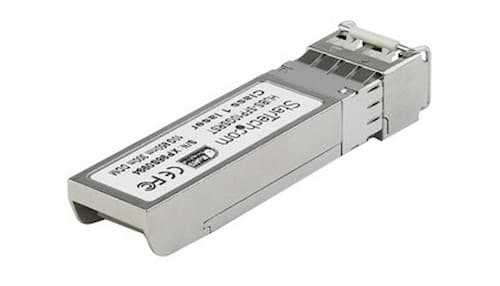

StarTech SFP10GSREMST is a Dell EMC SFP-10G-SR compatible 10GbE SFP+ fiber transceiver for 10GBASE-SR networks. It uses 850nm multimode fiber with an LC interface, supports up to 400m (1312ft.), provides Digital Diagnostic Monitoring (DDM), consumes less than 1W, and is hot-swappable for streamlined enterprise network upgrades and replacements.

OVERVIEW

  • SFP10GSREMST is a 10GbE 10GBASE-SR SFP+ transceiver for enterprise switches and routers, using 850nm multimode fiber and LC connectivity up to 400m. Compatibility: Designed, programmed and tested for Dell EMC SFP-10G-SR-compatible switches/routers; it also supports MSA-compliant equipment accepting uncoded modules. Model comparison: Choose this SR/850nm model for multimode-fiber links; verify the host and fiber requirements before purchase.

USE CASES

  • Data Center Switch Interconnects: Connect compatible 10GbE switches over multimode fiber for high-bandwidth rack and infrastructure networking.
  • Server-to-Switch Networking: Provide 10GbE optical connectivity between compatible servers, network adapters, and SFP+ switches.
  • Dell EMC Network Infrastructure: Deploy as an SFP-10G-SR-compatible replacement or expansion module in supported Dell EMC networking environments.
  • Data Center Rack Connectivity: Use 10GBASE-SR multimode-fiber links for suitable intra-data-center connections.
  • Enterprise Network Upgrades: Add 10GbE optical connectivity to compatible existing SFP+ networking equipment without replacing the entire platform.
  • Network Expansion Projects: Populate available SFP+ ports with 10GBASE-SR optical connectivity as bandwidth requirements increase.
  • Optical Module Replacement: Replace a compatible 10GbE SR transceiver while maintaining the existing multimode-fiber and LC infrastructure.
  • Network Monitoring Environments: Use DDM-supported deployments where administrators need transceiver diagnostic information through compatible management systems.
  • High-Density Switching: The sub-1W power specification can help organizations manage optical-module power requirements when deploying multiple SFP+ modules.
  • Enterprise Infrastructure Modernization: Extend existing 10GbE multimode-fiber infrastructure while maintaining compatibility with supported SFP+ platforms.

KEY FEATURES

  • 10GBASE-SR 10GbE Connectivity: Provides 10 Gigabit Ethernet optical connectivity for compatible enterprise switches, routers, and network infrastructure.
  • 850nm Multimode Fiber: Designed for 850nm multimode-fiber networks, making it suitable for established data center and enterprise MMF deployments.
  • Up to 400m Transmission Distance: Supports links up to 400m (1312ft.), providing practical reach for many data center and campus network connections.
  • LC Duplex Interface: Uses an LC fiber connector for integration with compatible LC-terminated multimode-fiber cabling.
  • Dell EMC SFP-10G-SR Compatibility: Designed, programmed, and tested for compatible Dell EMC switches and routers using the SFP-10G-SR specification.
  • MSA-Compliant Compatibility: Supports compatible MSA-compliant networking equipment that accepts uncoded SFP+ modules, subject to host-device validation.
  • Digital Diagnostic Monitoring: DDM provides optical-module diagnostic information through supported network equipment, improving operational visibility.
  • Less Than 1W Power Consumption: Low module power demand helps support efficient operation in high-density switch and data center environments.
  • Hot-Swappable Design: Allows compatible network equipment to support module replacement or installation without requiring a complete system replacement.
  • 10GbE Network Upgrade: Provides a dedicated 10GbE optical option for organizations upgrading compatible SFP+ infrastructure.
  • Lifetime Warranty: Includes StarTech.com's lifetime warranty, supporting long-term enterprise deployment and replacement planning.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • SKU / Product ID: SFP10GSREMST
  • Product Type: SFP+ fiber transceiver module
  • Network Technology: 10 Gigabit Ethernet
  • Ethernet Standard: IEEE 802.3ae 10GBASE-SR
  • Maximum Data Rate: 10 Gbps
  • Fiber Type: Multimode Fiber (MMF)
  • Optical Wavelength: 850nm
  • Maximum Transfer Distance: 400m / 1312ft.
  • Connector: LC
  • Fiber Operating Mode: Full-duplex
  • DDM: Yes
  • Power Consumption: <1W
  • MTBF: 38,631,862 hours
  • Compatible Brand: Dell EMC
  • Compatibility: Dell EMC SFP-10G-SR-compatible switches/routers; MSA-compliant hosts accepting uncoded modules
  • Form Factor: Plug-in SFP+ module
  • Hot-Swappable: Yes
  • Material: Steel
  • Product Dimensions: 1.4 × 5.8 × 1.3cm
  • Package Quantity: 1
  • Included: 1 × SFP+ transceiver
  • Technical Support: Free lifetime multilingual technical support
  • Standards/Compliance: IEEE 802.3ae, MSA; StarTech documentation also lists RoHS, REACH, CE, FCC and related compliance documentation
  • Ultra-short compatibility note: Dell EMC SFP-10G-SR compatible; verify host SFP+ support before purchase.

Why Choose This Product?

  • Purpose-built 10GbE optical connectivity: 10GBASE-SR support targets established 10GbE multimode-fiber infrastructure rather than requiring an entirely new optical architecture.
  • Dell EMC deployment focus: SFP10GSREMST is specifically designed, programmed and tested for compatible Dell EMC switches and routers.
  • Useful 400m reach: The 400m maximum transfer distance can cover substantially more than typical intra-rack requirements when the appropriate multimode fiber is installed.
  • Operational monitoring: DDM provides additional visibility into the optical module for compatible management environments.
  • Low module power: Less than 1W consumption can be useful when deploying multiple optical modules in high-density switching environments.
  • Maintenance flexibility: Hot-swappable operation can simplify field replacement and network maintenance.
  • Procurement flexibility: In addition to Dell EMC compatibility, StarTech.com identifies support for MSA-compliant switches that accept uncoded modules.
  • Long-term support: A lifetime warranty on the module and lifetime multilingual technical support can reduce replacement-planning and support concerns.
