StarTech HD2VGAMM6 HDMI to VGA Active Cable 1.8m 1080p

Brand:

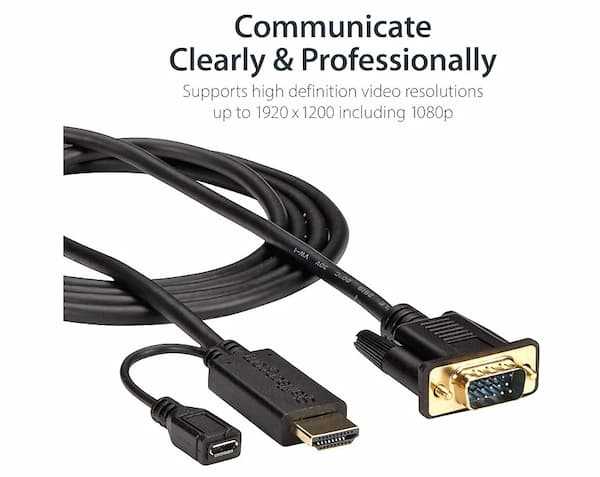

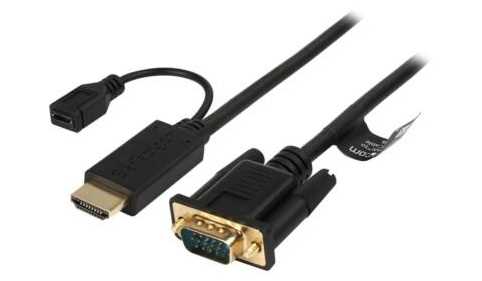

StarTech HD2VGAMM6 is a 1.8-meter HDMI to VGA active converter cable designed to connect modern HDMI-equipped computers, laptops, and Chromebooks to existing VGA monitors, projectors, and displays. It performs active digital HDMI-to-analog VGA conversion and supports resolutions up to 1920 × 1200, including 1080p, helping organizations extend the useful life of legacy VGA display infrastructure instead of replacing functional displays. The integrated cable design combines the converter and connection cable in one unit, reducing additional adapters and cable clutter in boardrooms, classrooms, workstations, training rooms, and IT environments. Its 6-foot length sits between the shorter HD2VGAMM3 and longer HD2VGAMM10 models, providing a practical balance for standard workstation and presentation installations.

OVERVIEW

  • StarTech HD2VGAMM6 provides a direct HDMI-to-VGA connection for organizations maintaining VGA monitors and projectors while deploying HDMI-equipped computers and laptops. Its active conversion technology changes the digital HDMI signal to analog VGA and supports PC resolutions up to 1920 × 1200 at 60Hz, making it suitable for business presentations, classrooms, workstations, meeting rooms, and legacy display environments. The integrated 1.8m cable eliminates the need for a separate HDMI-to-VGA adapter and VGA cable, helping simplify installations and reduce connection clutter. Unlike the 3ft HD2VGAMM3 and 10ft HD2VGAMM10 variants, the 6ft HD2VGAMM6 provides a mid-length option for standard equipment-to-display layouts. It can also reduce upgrade expenditure by allowing compatible VGA displays and projectors to remain in service when the source equipment moves to HDMI.

USE CASES

  • HDMI laptop to VGA monitor
  • HDMI computer to VGA projector
  • Boardroom presentation systems
  • Classroom projector connectivity
  • Corporate training rooms
  • Legacy VGA workstation displays
  • Conference room display upgrades
  • IT equipment refresh projects
  • Existing VGA display reuse
  • Temporary presentation setups

KEY FEATURES

  • HDMI to VGA conversion
  • Active digital-to-analog conversion
  • 1.8m / 6ft cable
  • Up to 1920 × 1200 resolution
  • Supports 1080p video
  • HDMI male connector
  • VGA male connector
  • Integrated adapter and cable
  • Plug-and-play installation
  • USB power option
  • No external power in most installations
  • OS-independent operation
  • Chrontel 7101A chipset
  • No additional VGA cable required

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Part Number: HD2VGAMM6
  • SKU: 4686964
  • Product Type: HDMI to VGA Active Converter Cable
  • Cable Length: 1.8 m / 6 ft
  • Product Length: 1.9 m / 6.1 ft
  • Input: HDMI
  • Output: VGA
  • Conversion Type: Active
  • Maximum Analog Resolution: 1920 × 1200
  • Maximum Digital Resolution: PC resolutions up to 1920 × 1200 @ 60 Hz
  • Audio Support: No
  • Chipset: Chrontel 7101A
  • Connector A: HDMI 19-pin
  • Connector B: VGA 15-pin High Density D-Sub
  • Additional Connector: USB Micro-B 5-pin
  • USB Power: 2.5W
  • Power Source: USB-Powered
  • Color: Black
  • Product Weight: 112.8 g
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -10°C to 70°C
  • Humidity: 40% to 85% RH
  • MTBF: 1,381,510 hours
  • Package Quantity: 1

WHY CHOOSE THIS PRODUCT?

  • Choose the HD2VGAMM6 when an HDMI-equipped computer needs to connect directly to an existing VGA monitor or projector. Its active conversion, integrated 1.8m cable, and 1920 × 1200/1080p support make it a practical replacement and upgrade accessory for boardrooms, classrooms, workstations, and legacy display infrastructure. The 6ft length offers a useful middle option between the HD2VGAMM3 and HD2VGAMM10, while the integrated design avoids purchasing a separate adapter and VGA cable.
