StarTech DP2VGA2 DisplayPort to VGA Active Adapter 1080p

• Brand: StarTech.com
• Model / SKU: USB110EXT2
• Product Type: USB 1.1 over Cat5/Cat6 extender
• Number of Ports: 1
• USB Standard: USB 1.1
• Maximum Data Transfer Rate: 12Mbps
• Maximum Extension Distance: 40m / 131ft
• Required Cabling: Cat5e UTP or better
• Compatible Cable Types: Cat5 / Cat5e / Cat6 / Cat6a UTP
• Local Unit USB Connector: USB Type-A male, USB 1.1
• Local Unit Network Connector: RJ45 female
• Remote Unit USB Connector: USB Type-A female, USB 1.1
• Remote Unit Network Connector: RJ45 female
• Power Source: USB powered
• Remote Power Output: Up to 300mA when local unit receives 500mA
• ESD Protection: 8kV contact, 16kV air
• OS Compatibility: OS independent; no drivers/software required
• System Requirement: Available USB port
• Material: Plastic
• Color: Black
• Product Dimensions: 85 × 40 × 25mm / 3.3 × 1.6 × 1.0in
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage Temperature: -20°C to 70°C / -4°F to 158°F
• Operating Humidity: 20%–80% RH
• Package Quantity: 1

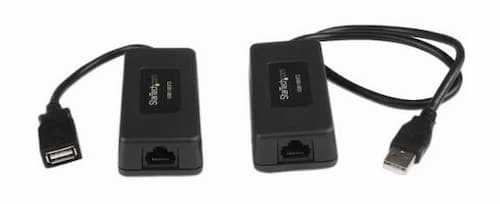

• Included: Local unit, remote unit, instruction manual

Why Choose This Product?

• 40m reach over structured cabling: Provides a practical long-distance USB connection without running a conventional USB cable beyond its normal 5m limitation.
• Uses existing Cat5e/Cat6 infrastructure: Can leverage installed UTP cabling, reducing the need for specialized extension cabling and additional infrastructure work.
• Designed for low-bandwidth peripherals: Its 12Mbps USB 1.1 specification is appropriate for compatible keyboards, mice, cameras and other supported devices.
• No external power adapter: USB-powered operation reduces installation complexity and eliminates another power component.
• Remote device power capability: Up to 300mA can be available at the remote end when the specified host power condition is met.
• Minimal IT configuration: Driver-free, OS-independent operation helps technicians deploy the extender without installing software.
• Supports secure physical separation: Enables the host computer to be positioned away from user-facing USB equipment, useful in controlled or restricted environments.
• Lower deployment TCO: Using existing Cat5e/Cat6 cabling and avoiding external power adapters or USB repeaters can simplify installation and reduce associated infrastructure requirements.
