StarTech.com DKT31CVHPD3 USB-C Mini Dock with 4K HDMI, VGA & GbE

• 4K 60Hz HDMI output: Connects a compatible laptop to a high-resolution HDMI display for detailed office, presentation, and collaboration workflows.
• 1080p 60Hz VGA output: Extends connectivity to compatible legacy projectors and monitors.
• One-display support: Provides a straightforward single-external-display solution without claiming multi-monitor capability.
• Gigabit Ethernet: Adds 10/100/1000Mbps wired networking for compatible laptops without built-in RJ-45.

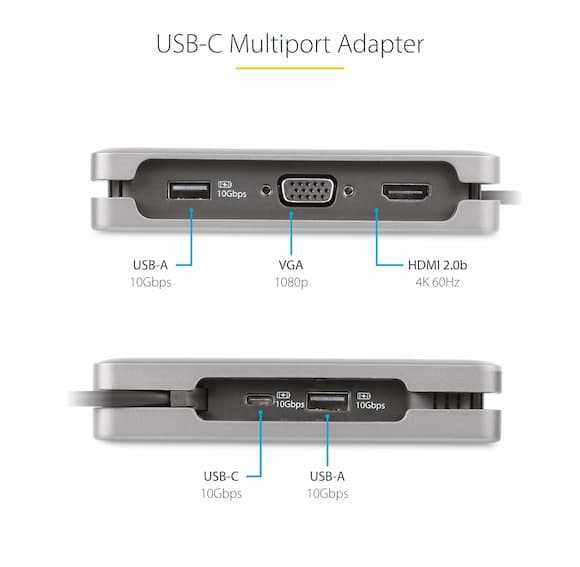

• Three USB 10Gbps ports: Two USB-A and one USB-C port provide high-speed connectivity for compatible peripherals and storage.
• 100W Power Delivery pass-through: Accepts a USB-C power adapter and provides laptop charging capability, with the manufacturer specifying up to 84W maximum laptop charging.
• 32cm integrated USB-C cable: Provides extra connection reach for laptops and helps accommodate elevated or differently positioned USB-C ports.
• PXE support: Provides a useful network-boot capability for compatible enterprise deployment workflows.
• Wake-on-LAN: Enables supported network-management workflows for remotely waking compatible systems.
• UASP support: Supports the USB Attached SCSI Protocol for compatible USB storage devices.
• Bus-powered operation: Can operate from the host when external power is not required; USB-C power input can be used for laptop charging.
• Compact 130g design: Reduces carrying weight for mobile IT and business users.
• No driver required: Simplifies deployment across supported systems.

• Brand: StarTech.com
• Model / SKU: DKT31CVHPD3
• Product Type: USB-C Multiport Adapter / Mini Docking Station
• Host Interface: USB-C, USB 3.2 Gen 2, 10Gbps
• HDMI Output: 1 × HDMI 2.0b
• Maximum HDMI Resolution: 4096 × 2160 at 60Hz
• VGA Output: 1 × VGA
• Maximum VGA Resolution: 1920 × 1200 / 1920 × 1080 at 60Hz
• Supported Displays: 1
• USB-A Ports: 2 × USB 3.2 Gen 2, 10Gbps
• USB-C Data Port: 1 × USB 3.2 Gen 2, 10Gbps
• USB-C PD Port: 1 × USB-C, 100W PD only
• Ethernet: 1 × RJ-45 Gigabit Ethernet
• Network Speeds: 10/100/1000Mbps
• Power Delivery: 100W
• Maximum Laptop Charging: 84W
• UASP: Yes
• PXE: Yes
• Wake-on-LAN: Yes
• Full Duplex: Yes
• Video Standards: HDMI 2.0b, DisplayPort 1.4
• Chipsets: Realtek RTD2142, RTL8153B; VIA VL822-Q8, VL103
• Host Cable: Integrated USB-C, 32cm
• Cable Material: TPE
• Power Source: Bus powered and host USB-C power adapter
• Power Consumption: 16W
• Fast-Charge Port: No
• Housing Material: Plastic
• Color: Space Gray

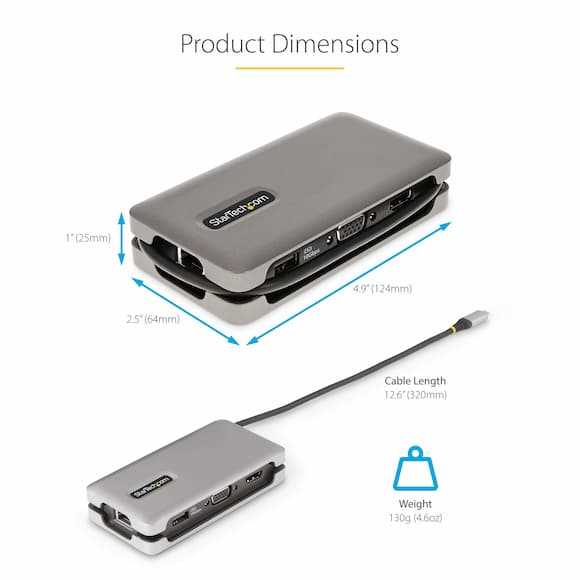

• Product Dimensions: 124 × 64 × 25mm
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 55°C
• Humidity: 0–85%, non-condensing

Why Choose This Product?

• One compact connectivity solution: Combines video, wired networking, USB expansion, and charging in one portable dock.
• 4K business display support: Provides HDMI output up to 4096 × 2160 at 60Hz for compatible displays.
• Legacy and modern display flexibility: HDMI and VGA outputs help support mixed display inventories.
• Fast peripheral connectivity: Three USB 10Gbps ports support compatible high-speed devices.
• Enterprise network features: PXE and Wake-on-LAN support add value for managed IT environments.
• High-power charging support: 100W PD pass-through supports compatible USB-C laptop charging, with up to 84W specified for the laptop.
• Mobile deployment ready: The 130g chassis and integrated 32cm cable suit traveling employees and IT technicians.
• Lower deployment complexity: A single multiport adapter can replace several individual connectivity adapters for compatible systems.
