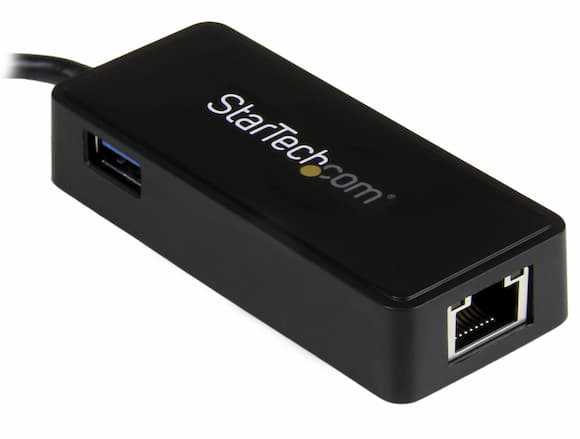

StarTech.com US1GC301AU USB-C Gigabit Ethernet Adapter with USB-A Port

Brand:

StarTech.com US1GC301AU is a compact USB-C to Gigabit Ethernet adapter that adds a 10/100/1000 Mbps RJ45 network connection and an additional USB-A 5Gbps port to compatible laptops and desktops. It uses USB 3.2 Gen 1 connectivity, supports Gigabit Ethernet, VLAN tagging, Wake-on-LAN, 4K jumbo frames and full-duplex operation, making it a practical choice for enterprise IT teams, mobile users and organizations transitioning devices to USB-C connectivity.

OVERVIEW

  • StarTech.com US1GC301AU is a USB-C network adapter for adding Gigabit Ethernet plus one USB-A 5Gbps port to compatible computers. It is suited to business laptops, desktops and mobile IT deployments needing wired LAN access without an integrated RJ45 port. Compatibility: USB-C/Thunderbolt 3 hosts and supported Windows, macOS, Chrome OS and Ubuntu systems. Model comparison: choose US1GC301AU when you need 1GbE plus one USB-A port; choose a dual-Ethernet model when two LAN connections are required.

USE CASES

  • USB-C laptop networking: Add wired Gigabit Ethernet to laptops without an RJ45 port.
  • Office network access: Connect USB-C computers directly to wired business networks.
  • IT troubleshooting: Provide temporary Ethernet connectivity for diagnostics and support.
  • Laptop fleet upgrades: Extend the usability of newer USB-C business laptops.
  • Mobile workstations: Carry a compact wired network adapter for office or remote deployments.
  • USB-A connectivity: Connect USB-A peripherals while using a USB-C computer.
  • VLAN networking: Support compatible enterprise networks using IEEE 802.1Q VLAN tagging.
  • Remote IT management: Use Wake-on-LAN with compatible systems for remote device access.

KEY FEATURES

  • Gigabit Ethernet: Supports 10/100/1000 Mbps wired network connections.
  • USB-C connection: Connects directly to compatible USB-C computers and laptops.
  • USB-A port: Adds one USB-A 5Gbps port for compatible peripherals.
  • USB 3.2 Gen 1: Provides a 5Gbps USB host interface.
  • VLAN support: Supports IEEE 802.1Q VLAN tagging for compatible networks.
  • Wake-on-LAN: Supports remote wake-up on compatible systems.
  • Jumbo frames: Supports Ethernet jumbo frames up to 4K.
  • Full-duplex: Supports simultaneous sending and receiving of network data.
  • Auto-MDIX: Simplifies Ethernet connectivity with automatic interface detection.
  • USB-powered: Requires no separate external power adapter.
  • LED indicators: Shows Ethernet link speed and network activity.
  • Compact design: Easy to carry and deploy with business laptops and mobile workstations.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model: US1GC301AU
  • Product Type: USB-C Gigabit Ethernet Adapter
  • Ethernet Port: 1 × RJ45
  • Ethernet Speed: 10/100/1000 Mbps
  • Maximum Network Speed: 1 Gbps
  • USB Host Interface: USB 3.2 Gen 1, 5Gbps
  • Host Connector: USB-C
  • Additional USB Port: 1 × USB-A, 5Gbps
  • Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab
  • VLAN Support: IEEE 802.1Q
  • Wake-on-LAN: Yes
  • Jumbo Frames: Up to 4K
  • Full Duplex: Yes
  • Auto-MDIX: Yes
  • Energy Efficient Ethernet: IEEE 802.3az
  • Chipset: ASIX AX88179A; VIA/VLI VL817
  • Power: USB-powered
  • Input Voltage: 5V DC
  • LED Indicators: Green and Amber Link/Activity

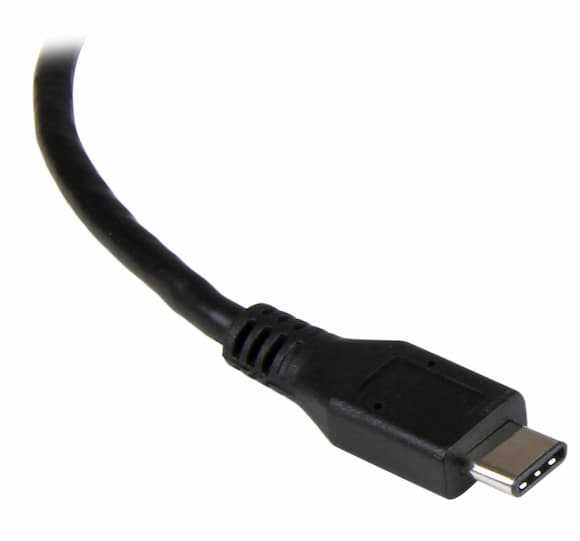

  • Cable Type: Attached USB-C cable
  • Cable Length: 203.2 mm / 8 in
  • Material: Plastic

Why Choose This Product?

  • Gigabit Ethernet: Provides fast and stable wired network connectivity up to 1 Gbps.
  • USB-C connectivity: Ideal for modern laptops and desktops without a built-in RJ45 port.
  • Built-in USB-A port: Lets you connect an additional USB-A device without a separate adapter.
  • 5Gbps USB interface: Provides a high-speed USB connection for compatible systems and peripherals.
  • VLAN support: Suitable for compatible business networks requiring network segmentation.
  • Wake-on-LAN: Supports remote device wake-up for compatible IT management environments.
  • Plug-and-play convenience: USB-powered design reduces setup complexity and eliminates the need for an external power adapter.
  • Portable design: Lightweight 38 g construction makes it easy for IT teams and mobile users to carry and deploy.
