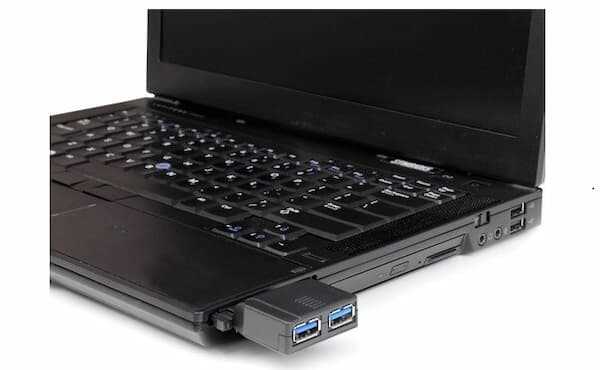

StarTech.com 2-Port USB 3.0 ExpressCard Adapter with UASP

• Extend USB connectivity on ExpressCard-enabled business laptops
• Connect external HDDs and SSD enclosures for data transfer
• Support laptop-based backup and archive workflows
• Add high-speed USB connectivity to legacy mobile workstations
• Connect USB storage for field-service and diagnostic operations
• Support large-file transfers involving images and video
• Connect USB peripherals where native ports are insufficient
• Upgrade older laptops without replacing the complete system
• Support external storage during infrastructure migration projects
• Provide additional USB connectivity for enterprise mobile users

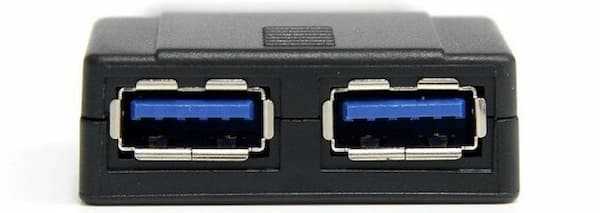

• 2 SuperSpeed USB 3.2 Gen 1 Type-A ports
• Up to 5 Gbps maximum USB transfer rate
• UASP support for compatible storage environments
• 34mm ExpressCard form factor
• Fits both 34mm and 54mm ExpressCard slots
• Backward compatible with USB 2.0 and USB 1.x devices
• Side-by-side port arrangement for easier device access
• Optional external DC power connection
• PCI Express 2.0 compliant
• USB 3.2 Gen 1 base specification 1.0 compliant
• xHCI specification 0.96 compliant
• Renesas/NEC µPD720200 chipset
• Supports Windows 11, 10, 8/8.1 and 7
• Supports Windows Vista and XP
• Supports Windows Server 2008 R2 and 2003

• Brand: StarTech.com
• Part Number: ECUSB3S22
• Product Type: ExpressCard USB Adapter
• Bus Type: ExpressCard
• Card Type: ExpressCard 34mm
• Host Interface: ExpressCard 2.0
• External Ports: 2 x USB Type-A, 9-pin, 5 Gbps
• USB Interface: USB 3.2 Gen 1
• Maximum Data Transfer Rate: 5 Gbps
• UASP Support: Yes
• Chipset: Renesas/NEC µPD720200
• USB Backward Compatibility: USB 2.0 and USB 1.x
• PCI Express Compliance: PCI Express 2.0
• USB Specification Compliance: USB 3.2 Gen 1 base specification 1.0
• xHCI Compliance: xHCI specification 0.96
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 150°C
• Humidity: 0% to 60% RH
• Material: Steel
• Product Dimensions: 115 x 40 x 12 mm
• Product Weight: 32 g
• Power Source: Not included; not required for standard applications
• Output Voltage: 5V DC
• Operating System Compatibility: Windows 11, 10, 8/8.1, 7, Vista, XP; Windows Server 2008 R2 and 2003
• Package Quantity: 1

WHY CHOOSE THIS PRODUCT?

• ECUSB3S22 is a focused connectivity upgrade for organizations still operating ExpressCard-equipped laptops. Its two USB 3.2 Gen 1 ports, 5 Gbps capability, UASP support and broad USB backward compatibility provide a practical way to connect modern external storage and peripherals without replacing the host laptop. The 34mm card design also works with 54mm ExpressCard slots, while the optional external power connection is useful when connected 2.5-inch hard drives require additional power.
