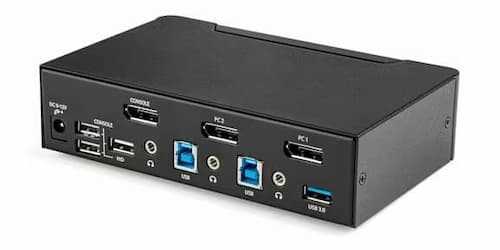

StarTech SV231DPU34K 2-Port DisplayPort 4K 60Hz KVM Switch

• Dual-PC workstations sharing one professional 4K monitor
• IT administrators managing two desktop computer systems
• Engineering workstations requiring high-resolution DisplayPort
• Designers switching between production and development PCs
• Developers operating separate Windows and Linux environments
• Government workstations requiring TAA-compliant equipment
• Multimedia systems requiring DisplayPort video and stereo audio
• Office desks reducing duplicate keyboard and mouse hardware
• Technical users switching between primary and backup computers
• Secure work areas requiring separated computer environments
• Control desks using two systems from one operator position
• Professional workstations needing USB peripheral sharing

• 2-port DisplayPort KVM controls two computers efficiently
• 4K 60Hz output supports detailed professional workflows
• DisplayPort 1.2 delivers high-bandwidth digital video
• USB 3.0 hub shares peripherals between connected computers
• Four USB HID ports support keyboard and mouse control
• Hotkey switching enables rapid computer selection
• Front push buttons provide direct manual switching
• HDCP 2.2 support helps maintain protected video playback
• MST passthrough supports compatible multi-display setups
• Stereo audio switching supports multimedia workstation use
• Single-user architecture suits dedicated desktop workstations
• Compact steel housing supports durable desktop deployment
• OS-independent operation simplifies cross-platform installation
• TAA compliance supports qualifying government procurement
• 2-year warranty adds lifecycle purchasing confidence

• Brand: StarTech.com
• Model: SV231DPU34K
• Product Type: KVM Switchbox
• KVM Type: 2-Port DisplayPort KVM
• Form Factor: Desktop
• Computers Supported: 2
• Local Users Supported: 1
• Monitor Support: 1 Monitor
• Video Interface: DisplayPort
• DisplayPort Version: 1.2
• Maximum Resolution: 3840 × 2160 at 60Hz
• Video Output: DisplayPort
• HDCP: HDCP 2.2
• MST Support: Yes
• DisplayPort Ports: 3
• USB Console Ports: 4 × USB Type-A
• USB Hub Ports: 2 × USB Type-A
• USB Host Ports: 2 × USB Type-B
• USB Data Rate: Up to 5Gbps
• Audio Support: 2-Channel Stereo
• Audio Connector: 3.5mm Stereo
• Switching Method: Push Button / Hotkey
• On-Screen Display: No
• IP Control: No
• Cascadable: No
• Operating System: OS Independent
• Housing Material: Steel
• Input Voltage: 100–240V AC
• Input Frequency: 50–60Hz
• Output Voltage: 12V DC
• Power Consumption: 18W
• MTBF: 60,000 Hours
• Height: 40.6 mm
• Width: 160 mm
• Depth: 99.1 mm
• Weight: Approx. 600 g
• Warranty: 2 Years
• Compliance: TAA Compliant
• Application: Dual-Computer Workstations
• Deployment: Enterprise, Government & Professional Offices
• Compatibility: DisplayPort Computers with USB Peripherals

WHY CHOOSE THIS PRODUCT?

• One workstation for two PCs — Share one display, keyboard and mouse between two computers, reducing duplicated desk equipment and simplifying multi-system access.
• 4K 60Hz productivity — 3840 × 2160 at 60Hz provides high-resolution, smooth desktop output for design, engineering, content and professional applications.
• USB peripheral sharing — The integrated USB 3.0 hub allows compatible peripherals to move between systems with the selected KVM connection, helping reduce equipment duplication.
• Fast switching workflow — Hotkeys and physical push buttons provide two practical switching methods for users who frequently move between computers.
• Cross-platform deployment — OS-independent operation and StarTech's stated Windows, Mac and Linux compatibility support mixed-computing environments.
• Government procurement suitability — TAA compliance makes the model suitable for procurement environments where Trade Agreements Act requirements apply.
• Professional connectivity — DisplayPort 1.2, HDCP 2.2, USB 3.0 and stereo audio support provide a practical interface set for demanding desktop workstations.
