StarTech.com ST7200USBM 7-Port USB 2.0 Hub

Brand:

The StarTech.com ST7200USBM is a TAA-compliant 7-port USB 2.0 hub designed to expand a computer's USB connectivity for enterprise workstations, server environments, industrial systems, kiosks, and IT support deployments. Its external USB Type-B host connection, seven downstream USB Type-A ports, and included AC power adapter provide a practical way to connect multiple USB peripherals from a single host port.

OVERVIEW

  • The ST7200USBM is a 7-port externally powered USB 2.0 hub for expanding USB connectivity from one host connection. Compatibility: USB 2.0/1.1 host systems with USB Type-B connectivity. Model comparison: This model prioritizes seven USB 2.0 ports and external power; choose a higher-speed USB 3.x hub when faster storage transfers are required. It is suited to enterprise workstations, servers, kiosks and specialized IT systems.

USE CASES

  • Enterprise workstations: Connect multiple USB peripherals from one computer port.
  • Server environments: Expand USB connectivity for compatible server-side peripherals and service equipment.
  • IT support benches: Connect several USB devices during system configuration and troubleshooting.
  • Industrial computers: Add USB peripherals to systems with limited available USB ports.
  • Kiosk deployments: Provide centralized USB connectivity for supported kiosk hardware.
  • Point-of-service systems: Connect compatible peripherals such as scanners and input devices.
  • Digital signage systems: Expand USB connections for supported control and peripheral equipment.
  • Testing environments: Connect multiple USB 2.0 devices to a development or diagnostic system.
  • Shared workstations: Simplify peripheral connectivity where multiple USB devices are required.

KEY FEATURES

  • 7 downstream USB 2.0 ports: Expands one host connection into seven peripheral connections, reducing the need for additional host USB ports.
  • External AC power: Provides dedicated hub power for connected USB peripherals and reduces dependence on host-port power.

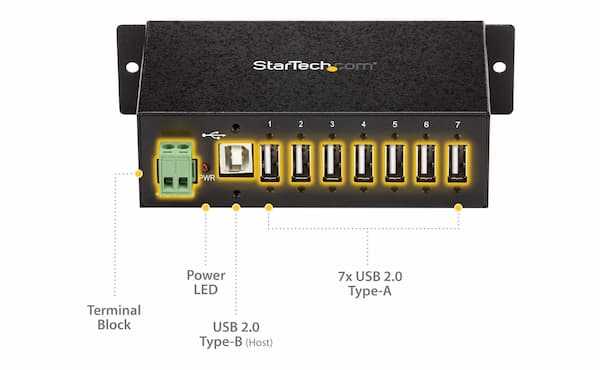

  • USB Type-B host interface: Uses a conventional external hub connection suitable for fixed workstation and equipment installations.
  • USB Type-A downstream ports: Supports a broad range of standard USB peripherals without requiring specialized adapters.
  • USB 2.0 data transfer: Provides up to 480Mbps theoretical USB bandwidth for compatible peripherals.
  • Backward compatibility: Supports USB 1.1 devices, helping integrate older peripherals into existing installations.
  • Individual port power capability: Supports powered USB peripheral deployment where sufficient external hub power is required.
  • Compact desktop design: Helps organize peripheral connectivity without occupying significant workstation space.
  • Plug-and-play operation: Simplifies deployment by avoiding complex hub configuration on supported operating systems.
  • TAA compliant: Helps meet applicable U.S. government procurement requirements.
  • Broad operating-system support: Designed for deployment with common Windows, macOS and Linux systems.
  • 3-year warranty: Provides manufacturer-backed coverage for longer-term business deployments.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / SKU: ST7200USBM
  • Product Type: 7-Port USB 2.0 Hub
  • Total USB Ports: 7 downstream ports
  • USB Standard: USB 2.0
  • Maximum Data Transfer Rate: Up to 480Mbps
  • Host Interface: USB Type-B
  • Downstream Interface: USB Type-A
  • Downstream Port Count: 7
  • Host Port Count: 1
  • External Power: Yes
  • Power Adapter: Included
  • Power Input: 100–240V AC
  • USB Backward Compatibility: USB 1.1
  • Compatibility in Brief: USB 2.0/1.1 host systems
  • Plug and Play: Yes
  • Data Transfer Support: Yes
  • LED Indicators: Power/activity indicators
  • Housing Material: Aluminum
  • Color: Black
  • Cooling: Passive
  • Fan: No
  • Operating Temperature: 0°C to 70°C
  • Storage Temperature: -10°C to 80°C
  • Humidity: 5% to 95% RH, non-condensing
  • TAA Compliant: Yes
  • Operating Systems: Windows, macOS, Linux and compatible systems
  • Drivers Required: No proprietary drivers required
  • Power Source: External AC adapter
  • Mounting: Desktop

Why Choose This Product?

  • Seven-port expansion: Adds substantial USB capacity where a workstation or system has limited USB ports.
  • Externally powered design: Better suited to deployments with several connected USB peripherals.
  • Enterprise procurement fit: TAA compliance supports applicable government and institutional purchasing requirements.
  • Simple installation: Plug-and-play operation minimizes deployment and configuration effort.
  • Legacy device support: USB 1.1 backward compatibility helps accommodate older peripherals.
  • Fixed-installation friendly: USB Type-B host connectivity works well for desktop, industrial and equipment-based deployments.
  • Reduced infrastructure complexity: One hub consolidates multiple USB peripheral connections.
  • Business lifecycle value: A 3-year warranty supports longer-term IT equipment planning.
