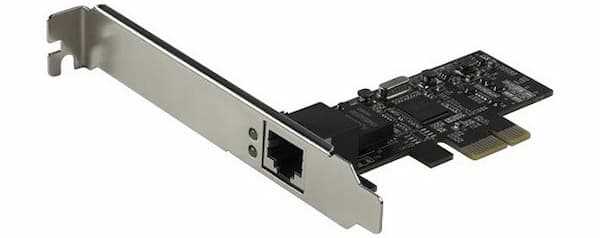

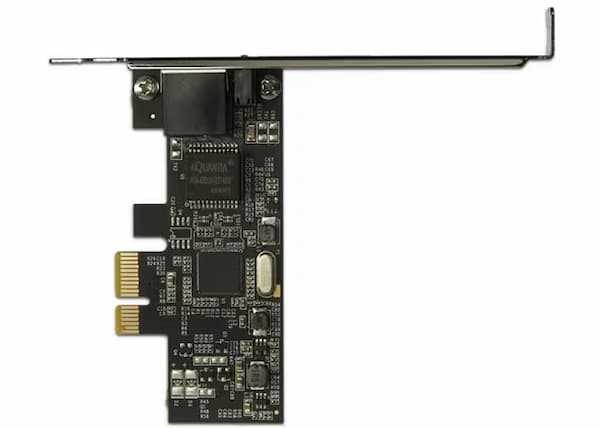

StarTech ST2GPEX 25Gbps PCIe Ethernet Network Adapter Card

• Upgrade desktop workstations from Gigabit Ethernet to 2.5GbE
• Add 2.5GbE connectivity to compatible servers with an available PCIe slot
• Connect workstations to 2.5GBASE-T switches and multi-gigabit infrastructure
• Support compatible Cisco campus switching environments
• Support compatible Aruba multi-gigabit access point deployments
• Modernize network connectivity while retaining compatible CAT5e cabling
• Deploy high bandwidth wired connectivity for professional workstations
• Support PXE based network boot environments
• Enable Wake-on-LAN for supported managed systems
• Support network segmentation using IEEE 802.1q VLAN tagging

• Supports Ethernet speeds of 2.5Gbps, 1Gbps, 100Mbps and 10Mbps
• Supports both 2.5GBASE-T and NBASE-T specifications
• Uses a single RJ45 Ethernet port for wired network connectivity
• Uses a PCI Express interface for desktop and server installation
• Uses Realtek RTL8125B chipset technology
• Supports IEEE 802.3bz 2.5GBASE-T
• Supports IEEE 802.3ab 1000BASE-T
• Supports IEEE 802.3u 100BASE-TX
• Supports IEEE 802.3i 10BASE-TX
• Supports up to 16K jumbo frames
• Supports Auto-MDIX and full duplex operation
• Supports PXE for supported network boot environments
• Supports Wake-on-LAN
• Supports IEEE 802.1q VLAN tagging
• Includes standard and low-profile installation bracket options

• Brand: StarTech.com
• Part Number: ST2GPEX
• Product Type: PCIe Network Card
• Network Type: Wired Ethernet
• Number of Ports: 1
• External Port: RJ45
• Bus Type: PCI Express
• Chipset: Realtek RTL8125B
• Maximum Network Speed: 2.5Gbps
• Supported Network Speeds: 2.5Gbps, 1Gbps, 100Mbps, 10Mbps
• Network Standard: IEEE 802.3bz 2.5GBASE-T
• Network Standard: IEEE 802.3ab 1000BASE-T
• Network Standard: IEEE 802.3u 100BASE-TX
• Network Standard: IEEE 802.3i 10BASE-TX
• Network Compatibility: 2.5GBASE-T and NBASE-T
• Cabling Support: CAT5e and CAT6a for supported 2.5Gbps operation
• Auto MDIX: Yes
• Full Duplex: Yes
• PXE: Yes
• Wake on LAN: Yes
• Jumbo Frame Support: 16K maximum
• VLAN Support: IEEE 802.1q tagging
• Card Profile: Standard Profile
• Low Profile Bracket: Included
• LED Indicators: 2
• Operating Temperature: 5°C to 50°C
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 20% to 80%
• Product Length: 80mm
• Product Width: 120mm
• Product Height: 20mm
• Product Weight: 138g
• Color: Black
• Material: Steel
• OS Compatibility: Windows 11, Windows 10, Windows 8, Windows 7
• Server OS Compatibility: Windows Server 2016, Windows Server 2012 R2, Windows Server 2008 R2
• Linux Compatibility: Linux Kernel 2.4.20 and up LTS versions
• Included Accessories: Low Profile Bracket and Quick Start Guide

WHY CHOOSE THIS PRODUCT?

• Organizations choose the ST2GPEX when a compatible desktop, workstation or server needs a practical upgrade to 2.5GbE without moving immediately to a higher-speed network architecture. Its four supported Ethernet speeds, 2.5GBASE-T and NBASE-T compatibility, CAT5e support, standard and low-profile installation options, PXE, VLAN tagging and Wake-on-LAN make it suitable for varied enterprise connectivity requirements. Compared with a conventional Gigabit-only adapter, it provides a higher-speed migration path while retaining compatibility with slower Ethernet networks. For procurement teams, the single-port design, included low-profile bracket and backward speed compatibility support targeted upgrades, replacement deployments and phased infrastructure modernization.
