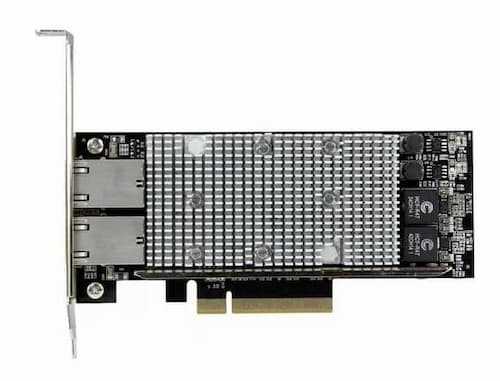

StarTech.com ST20000SPEXI Dual-Port 10GBase-T PCIe Ethernet Network Card

• Brand: StarTech.com
• Product ID: ST20000SPEXI
• Product Type: Dual-port 10GBase-T Ethernet PCIe network card
• Number of Ports: 2
• Ethernet Interface: RJ-45
• Ethernet Speed: 10Gbps / 5Gbps / 2.5Gbps / 1Gbps / 100Mbps
• Maximum Data Transfer Rate: 20Gbps full-duplex; 10Gbps half-duplex
• Chipset Intel: X540
• Bus Type: PCI Express
• PCIe Revision: PCI Express Rev. 2.0
• PCIe Interface: PCI Express x8
• Required Slot: PCIe x8 or higher
• Industry Standards: IEEE 802.3an, IEEE 802.3ab, IEEE 802.3u
• Link Aggregation: IEEE 802.3ad
• VLAN: IEEE 802.1Q
• Jumbo Frame: Up to 9K
• Auto-MDIX: Yes
• Full Duplex: Yes
• Promiscuous Mode: Yes
• PXE Boot: Yes
• Virtualization: Intel Virtualization Technology for Connectivity
• Port Indicators: 2 × Link Speed; 2 × Link Activity
• Card Profile: Standard profile with low-profile bracket included
• Connector: 1 × PCIe x8; 2 × RJ-45
• Supported Operating Systems: Windows 7, 8, 8.1, 10, 11; Windows Server 2012/2016/2019/2022; Linux
• Compatibility: Windows/Linux systems with available PCIe x8-or-higher slot
• Product Length: 16.3 cm / 6.4 in
• Product Width: 20 mm / 0.8 in
• Product Height: 12.0 cm / 4.7 in
• Product Weight: 157 g / 5.5 oz
• Operating Temperature: 5°C to 50°C / 41°F to 122°F
• Storage Temperature: -20°C to 60°C / -4°F to 140°F
• Operating Humidity: 20–80% RH
• UPC: 065030860598
• TAA Compliant: Yes
• Package Quantity: 1

Why Choose This Product?

• Two 10GbE ports from one adapter: Expands network connectivity while using a single PCIe card position.
• Strong upgrade path: Multi-speed support lets the adapter operate with 10GbE as well as 5G, 2.5G, 1G and 100Mbps infrastructure.
• Enterprise-oriented Intel controller: The Intel X540 chipset provides a mature platform for high-speed Ethernet and virtualization-related networking features.
• High aggregate bandwidth: Up to 20Gbps full-duplex capability suits data-intensive server, workstation and storage workloads.
• Network-management flexibility: VLAN tagging, link aggregation, PXE and jumbo-frame support address common enterprise networking requirements.
• Chassis deployment flexibility: The supplied low-profile bracket supports installation in compatible compact-form-factor systems as well as standard-profile chassis.
• Simplified copper infrastructure: RJ-45 10GBase-T connectivity can integrate with compatible twisted-pair Ethernet infrastructure rather than requiring fiber-only connections.
• Procurement-ready support: TAA compliance, a 2-year warranty and manufacturer technical support add lifecycle value for business deployments.
