Home Networking Transceiver StarTech.com SFP10GSRST 10GBASE-SR SFP+ Transceiver, LC, MMF, 300m

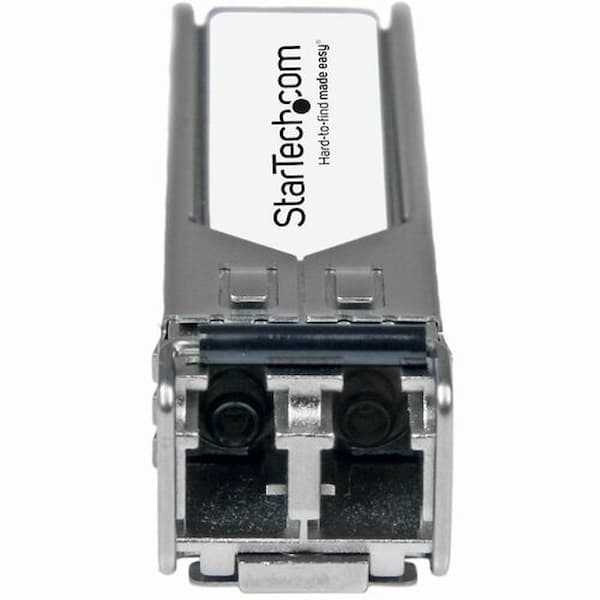

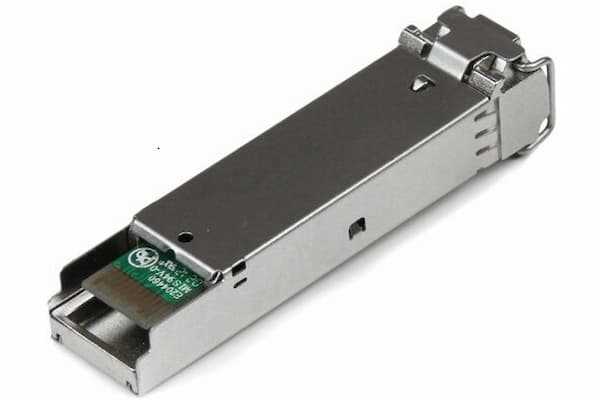

StarTech.com SFP10GSRST 10GBASE-SR SFP+ Transceiver, LC, MMF, 300m

Brand:

StarTech.com SFP10GSRST is a 10GbE SFP+ optical transceiver designed, programmed and tested for Cisco SFP-10G-SR-compatible switches and routers. It delivers 10GBASE-SR connectivity over multimode fiber using an LC connector at 850nm, with transmission distances up to 300m. Hot-swappable installation, Digital Diagnostic Monitoring (DDM), low power consumption and a lifetime warranty make it a practical choice for data center links, switch uplinks, server connectivity and network expansion.

OVERVIEW

  • StarTech.com SFP10GSRST is a 10GBASE-SR SFP+ fiber transceiver for high-bandwidth multimode fiber links up to 300m. Compatibility: Cisco SFP-10G-SR-compatible equipment and MSA-compliant SFP+ ports that accept the module. Model comparison: choose this model for Cisco SFP-10G-SR compatibility; choose an MSA-uncoded StarTech SFP10GBSRST when broad MSA host compatibility is the priority.

USE CASES

  • 10GbE switch uplinks: Provides 10 Gigabit fiber connectivity between compatible network switches.
  • Data center interconnects: Supports short- to medium-distance multimode fiber links up to 300m.
  • Server-to-switch connectivity: Enables compatible 10GbE server or network-interface connections over LC multimode fiber.
  • Network expansion: Adds fiber connectivity to remote network segments without replacing compatible SFP+ infrastructure.
  • Core-to-access links: Supports high-bandwidth connections between compatible network layers in enterprise environments.
  • Storage networking: Provides 10GbE optical connectivity for compatible IP-based storage and infrastructure networks.
  • Network module replacement: Provides a replacement option for defective or damaged compatible SFP+ modules.
  • Campus network links: Supports high-speed multimode fiber connections between network equipment within the specified 300m distance.
  • Data center rack connectivity: Enables high-speed optical connections between compatible switches, routers and other SFP+ equipment.

KEY FEATURES

  • 10GBASE-SR optical standard: Provides a defined 10GbE short-range fiber interface for compatible network infrastructure.
  • 10Gbps data rate: Supports high-bandwidth network connectivity for data-intensive enterprise workloads.
  • Multimode fiber support: Uses MMF cabling for cost-effective short-range 10GbE infrastructure.
  • 850nm wavelength: Uses the standard optical wavelength for 10GBASE-SR multimode applications.
  • 300m maximum reach: Supports links up to 300m (984ft), providing useful coverage across data center and campus environments.
  • LC connector: Uses a common duplex LC fiber interface for straightforward integration with compatible fiber patching.
  • Cisco SFP-10G-SR compatibility: Designed, programmed and tested for compatible Cisco switches and routers, helping reduce deployment uncertainty.
  • MSA-compliant host support: Also works with compatible MSA-compliant equipment that accepts the module, increasing deployment flexibility.
  • Digital Diagnostic Monitoring: Provides transceiver status information to compatible monitoring systems, supporting network visibility and maintenance.
  • Hot-swappable design: Allows compatible network equipment to replace or install the module without requiring a full system shutdown.
  • Low power consumption: Uses less than 1.2W, helping control power demand across densely populated network environments.
  • Full-duplex operation: Supports simultaneous bidirectional data transmission for efficient network communication.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / SKU: SFP10GSRST
  • Product Type: SFP+ Fiber Optic Transceiver Module
  • Ethernet Standard: 10GBASE-SR
  • Network Speed: 10GbE
  • Maximum Data Transfer Rate: 11.1 Gbps
  • Fiber Type: Multimode Fiber (MMF)
  • Connector: LC
  • Wavelength: 850nm
  • Maximum Transfer Distance: 300m / 984ft
  • Fiber Operating Mode: Full-Duplex
  • Digital Diagnostic Monitoring: Yes
  • Hot-Swappable: Yes
  • Compatible Network: 10 Gbps
  • Host Compatibility: Cisco SFP-10G-SR compatible; MSA/Cisco-compliant SFP+ port
  • Power Input: 3.3V DC
  • Power Consumption: Less than 1.2W
  • Material: Steel
  • Product Length: 60mm / 2.4in
  • Product Width: 12mm / 0.5in
  • Product Height: 10mm / 0.4in
  • Product Weight: 22g / 0.8oz
  • Operating Temperature: 0°C to 70°C / 32°F to 158°F
  • Storage Temperature: -40°C to 85°C / -40°F to 185°F
  • Humidity: 30–70% RH
  • MTBF: 1,967,709 hours
  • Package Quantity: 1
  • Included: 1 × 10Gbps Multimode LC SFP+ Module

Why Choose This Product?

  • 10GbE performance: Provides the bandwidth required for high-speed enterprise fiber networking.
  • 300m multimode reach: Covers common data center and campus fiber distances.
  • Cisco compatibility: Designed and tested for compatible Cisco SFP-10G-SR equipment.
  • DDM support: Helps network teams monitor transceiver operating information.
  • Hot-swappable: Simplifies replacement and network maintenance.
  • Low power draw: Uses less than 1.2W for efficient infrastructure deployment.
  • LC connectivity: Fits common LC-based multimode fiber infrastructure.
  • Lifetime warranty: Supports long-term network hardware lifecycle planning.
