Home Panels, Enclosures & Racks Racks & Cabinets StarTech.com RK1536BKF 15U 19-Inch Server Rack Cabinet

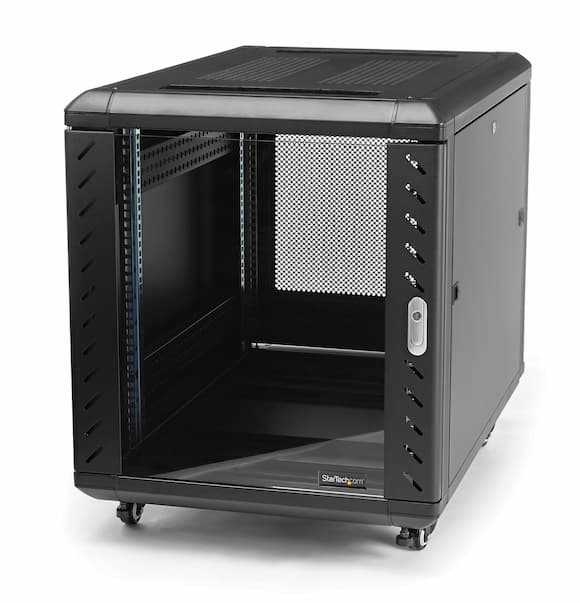

StarTech.com RK1536BKF 15U 19-Inch Server Rack Cabinet

Brand:

The StarTech.com RK1536BKF is a 15U, 19-inch enclosed four-post server rack cabinet for rack-mount servers, networking equipment and AV hardware. It features adjustable mounting rails, lockable doors and side panels, casters and leveling feet for equipment installation and positioning.

OVERVIEW

  • The RK1536BKF provides an enclosed rack-mount housing for servers, switches, KVM equipment and other compatible IT or AV hardware. Its 15U capacity and adjustable rails help accommodate equipment with different mounting depths, while lockable access panels support controlled physical access. The cabinet is supplied flat-packed and requires assembly.

USE CASES

  • Server room installations
  • Network switch deployments
  • IT infrastructure organization
  • Telecommunications equipment installations
  • KVM switch installations
  • Enterprise networking environments
  • Office IT rooms
  • Data center equipment housing
  • Audio-visual equipment installations
  • Technical support facilities
  • IT equipment maintenance areas
  • Rack-mount hardware replacement projects
  • Small infrastructure expansion projects

KEY FEATURES

  • 15U rack capacity
  • Standard 19-inch equipment mounting
  • Four-post enclosed rack design
  • Adjustable mounting rails
  • Lockable front door with glass window
  • Lockable rear mesh door
  • Removable and lockable side panels
  • Up to 800kg stationary load capacity with leveling feet
  • Casters for cabinet positioning
  • Leveling feet for stabilization
  • Cable-routing openings
  • Ventilated top and mesh rear door
  • EIA/ECA-310-E rack standard
  • Grounding lugs

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Part Number / MPN: RK1536BKF
  • Product Type: Server rack cabinet
  • Category: IT, networking and AV equipment rack
  • Rack Format: 19-inch
  • Rack Height: 15U
  • Rack Type: Four-post
  • Frame Type: Enclosed cabinet
  • Mounting: Floor-standing
  • Color: Black
  • Construction Material: Steel
  • Front Door: Lockable, reversible and removable steel door with glass window
  • Rear Door: Lockable, reversible and removable steel mesh door
  • Side Panels: Removable steel panels with locks
  • Mounting Rail Adjustment: 14.4–83.8 cm (5.7–33 inches)
  • Maximum Stationary Load Capacity: 800 kg (1,764 lb), with leveling feet
  • Maximum Rolling Load Capacity: 150 kg (330.8 lb)
  • Product Dimensions (L × W × H): 100 × 60 × 79.6 cm
  • Height with Casters: 86.1 cm
  • Internal Width: 59.6 cm
  • Internal Depth: 99.2 cm
  • Product Weight: 54 kg
  • Mounting Hole Type: Square, for cage nuts
  • Rack Standard: EIA/ECA-310-E
  • Cable Management: Bottom cable-management openings and designated cable-routing access
  • Ventilation: Mesh rear door and vented top
  • Mobility: Casters included, including locking casters
  • Stabilization: Leveling feet included
  • Grounding: Grounding lugs included
  • Wall-Mountable: No
  • Assembly: Flat-packed; assembly required
  • Package Quantity: 1
  • Included Hardware: Rack assembly hardware, mounting screws, cage nuts, washers, keys, casters and leveling feet
  • Compatibility: Designed for compatible 19-inch rack-mount equipment that meets the cabinet's mounting-depth and load requirements.
  • Warranty: Lifetime
  • TAA Compliance: Yes
  • Operating Temperature: Not specified in the available documentation.
  • Operating Humidity: Not specified in the available documentation.

Why Choose This Product?

  • Organizes compatible rack-mount servers and networking equipment.
  • Offers 15U of rack space for IT installations.
  • Adjustable rails accommodate supported mounting depths.
  • Lockable doors and side panels help restrict physical access.
  • Removable panels simplify equipment access during maintenance.
  • Casters help with positioning the cabinet.
  • Leveling feet support stable installation.
  • Standard 19-inch mounting supports compatible rack equipment.
