StarTech.com 10m Active HDMI 2.0 Cable with Ethernet, 4K 60Hz

Brand:

The StarTech.com RH2A-10M-HDMI-CABLE is a 10-meter active HDMI 2.0 cable designed for reliable long-distance connection between HDMI-enabled source devices and displays. It supports 4K 60Hz resolution, 18Gbps bandwidth, HDR10, ARC, HDCP 2.2 and 32-channel audio. Its active amplification, copper construction, EMI shielding and rugged TPE jacket make it suitable for professional AV installations, conference rooms, classrooms and office environments.

OVERVIEW

  • The RH2A-10M-HDMI-CABLE is a professional 10m active HDMI 2.0 cable for extending high-quality HDMI connections between source equipment and displays. Compatibility: HDMI-enabled devices with HDMI ports. Model comparison: Compared with shorter passive HDMI cables, this model uses active amplification for a 10m run. It is a strong choice when 4K 60Hz, long-distance connectivity and installation durability are required.

USE CASES

  • Conference Rooms: Connect computers or media sources to large 4K displays over longer distances.
  • Classrooms: Connect presentation equipment to projectors or displays.
  • Corporate Offices: Extend HDMI connections between workstations and meeting-room displays.
  • Digital Signage: Connect compatible media players to commercial displays.
  • Training Rooms: Support long HDMI connections for presentations and demonstrations.
  • AV Installations: Provide a 10m connection where standard short cables are impractical.
  • Home Offices: Connect PCs, laptops or media equipment to distant displays.
  • Professional Video Setups: Carry high-bandwidth HDMI signals between compatible source and display equipment.

KEY FEATURES

  • 10m active HDMI cable: Extends HDMI connectivity over a long 32.8 ft distance without requiring an external power supply.
  • HDMI 2.0: Provides a high-bandwidth interface for compatible modern displays and source devices.
  • 4K 60Hz support: Enables smooth Ultra HD video at up to 4096 × 2160 resolution for compatible equipment.
  • 18Gbps bandwidth: Provides the throughput required for supported high-resolution HDMI 2.0 signals.
  • HDR10 support: Enables compatible displays to reproduce a wider dynamic range for improved image presentation.
  • 32-channel HDMI audio: Supports high-channel-count digital audio applications.
  • Ethernet support: Provides HDMI Ethernet Channel functionality when supported by connected equipment.
  • Active bus-powered amplifier: Boosts the HDMI signal along the 10m cable without an external power adapter.

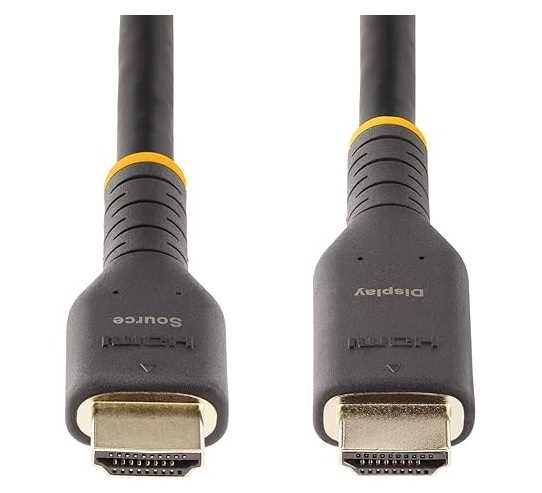

  • Unidirectional design: Source and Display markings help installers connect the cable in the correct direction.
  • 100% copper construction: Provides a conductive cable design intended for dependable signal transmission.
  • 28 AWG conductors: Provides a defined conductor gauge for the 10m cable construction.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Product ID: RH2A-10M-HDMI-CABLE
  • Product Type: Active HDMI Cable
  • Cable Length: 10 m / 32.8 ft
  • HDMI Version: HDMI 2.0
  • Maximum Bandwidth: 18Gbps
  • Maximum Resolution: 4096 × 2160 at 60Hz
  • Connector Type: HDMI Male to HDMI Male
  • Connector A: HDMI, 19-pin
  • Connector B: HDMI, 19-pin
  • Connector Plating: Gold
  • Active/Passive: Active
  • Cable Direction: Unidirectional
  • Conductors: 19
  • Wire Gauge: 28 AWG
  • Cable Outer Diameter: 7.5 mm
  • Cable Jacket: TPE
  • Shielding: Al-Mylar foil with copper braid
  • Cable Color: Black
  • HDR: HDR10
  • Audio: HDMI 32-channel audio
  • Ethernet: HDMI Ethernet Channel
  • Audio Return Channel: ARC
  • HDCP: HDCP 2.2
  • CEC: Supported
  • Deep Color: Supported
  • BT.2020 Colorimetry: Supported
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: 0°C to 50°C
  • Operating Humidity: 0% to 85% RH

Why Choose This Product?

  • 10m reach: Reduces the need for short cable extensions or multiple connection points.
  • 4K 60Hz capability: Supports high-resolution video requirements for professional displays.
  • 18Gbps bandwidth: Provides substantial HDMI 2.0 signal capacity.
  • Active signal amplification: Makes a 10m HDMI run practical without an external power supply.
  • Rugged construction: TPE jacket, strain relief and shielding support demanding installation environments.
  • Reliable signal integrity: Gold connectors and dual-layer shielding help maintain dependable connectivity.
  • Professional AV compatibility: Suitable for conference rooms, classrooms, offices and display installations.
  • Procurement-ready SKU: RH2A-10M-HDMI-CABLE provides a precise part number for enterprise sourcing and replacement.
