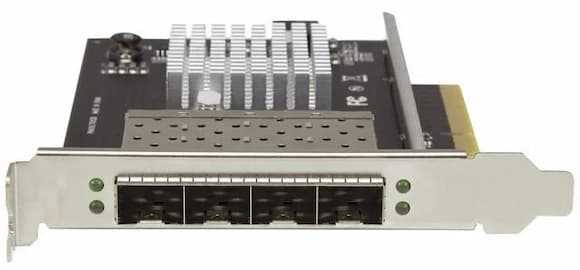

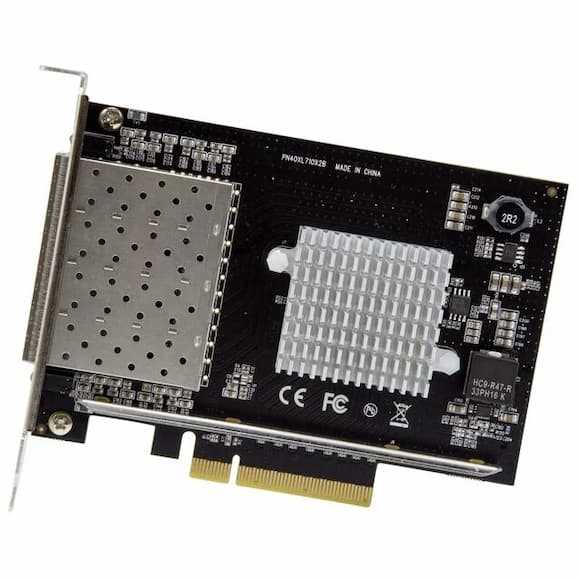

StarTech.com PEX10GSFP4I Quad-Port 10G SFP+ PCIe Network Card (PEX10GSFP4I)


Brand:

Specifications

   Product Description
  • The StarTech.com PEX10GSFP4I is a high-performance Quad-Port 10 Gigabit Ethernet network card engineered for servers and high-throughput workstations. Powered by the proven Intel XL710 chipset, this PCIe x8 fiber adapter delivers ultra-reliable 10GBase-LR/SR connectivity through four MSA-compliant SFP+ ports, supporting both multimode and single-mode fiber optics. Ideal for demanding enterprise environments, the card supports link aggregation, jumbo frames up to 9000 bytes, PXE boot, VLAN tagging, and advanced networking features to maximize bandwidth and network efficiency. Backed by a 2-year warranty and lifelong technical support, the PEX10GSFP4I is perfect for data centers, virtualization, SAN/iSCSI, video editing, backup servers, and high-speed storage access.
   Key Features
  • Intel XL710 chipset for robust and efficient network performance.
  • Quad 10G SFP+ ports for high-speed fiber connectivity and redundancy.
  • PCI Express x8 interface compatible with PCIe 3.0 slots.
  • Supports 10GBase-LR & 10GBase-SR optical standards.
  • 20 Gbps full-duplex total transfer rate (10 Gbps per port).
  • Advanced networking: VLAN tagging, jumbo frames (9K), link aggregation.
  • PXE boot support for network-based booting.
  • Compatible with a wide range of servers and network hardware.
   Technical Specifications
  • Model: PEX10GSFP4I
  • Chipset: Intel XL710
  • Interface: PCI Express x8 (PCIe 3.0 compatible)
  • Ports: 4 × 10G SFP+ (open slots)
  • Network Type: 10 Gigabit Ethernet (10GbE)
  • Optical Standards: 10GBase-LR, 10GBase-SR
  • Max Transfer Rate: Up to 20 Gbps full-duplex
  • Jumbo Frames: Up to 9000 bytes
  • Advanced Features: VLAN, Link Aggregation, Jumbo Frames, PXE Boot
  • Compatibility: Windows & Linux (64-bit)
  • Form Factor: Plug-in PCIe Card
  • Compliance: RoHS, CE, FCC
  • Color: Black
  • Dimensions: ~139 × 12 × 15 mm
  • Weight: ~129 g



Features

Brand:
StarTech.com
Warranty:
1 Year
