Home Networking Transceiver StarTech.com PEX10GSFP 10GbE PCIe SFP+ Network Card

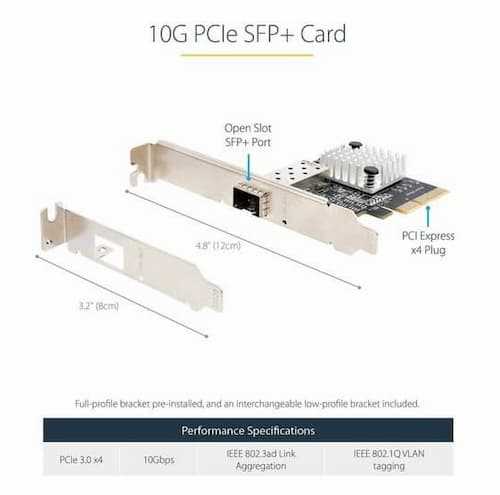

StarTech.com PEX10GSFP 10GbE PCIe SFP+ Network Card

Brand:

StarTech.com PEX10GSFP is a 10GbE PCIe network adapter with an open SFP+ port, designed for desktops, workstations and servers requiring high-speed fiber or compatible SFP+ connectivity.

OVERVIEW

  • The StarTech.com PEX10GSFP is a high-speed 10GbE PCIe network adapter designed to add 10 Gigabit Ethernet connectivity to compatible desktops, workstations and servers. Its open SFP+ slot allows businesses and IT teams to select a compatible MSA-compliant SFP+ transceiver or direct-attach cable according to their network infrastructure.

USE CASES

  • Server networking: Add 10GbE connectivity to file, application and storage servers.
  • High-performance workstations: Improve network throughput for demanding professional workloads.
  • Network storage: Support faster access to high-bandwidth storage and large files.
  • Media and content production: Provide high-speed connectivity for large media and project files.
  • Enterprise network upgrades: Upgrade compatible systems from lower-speed Ethernet connections to 10GbE SFP+.

KEY FEATURES

  • 10GbE connectivity for high-bandwidth network applications.
  • Single open SFP+ port for flexible network configuration.
  • MSA-compliant SFP+ support for compatible transceivers and direct-attach cables.
  • Supports multimode, single-mode and copper SFP+ modules.
  • PCI Express 3.0 x4 host interface.
  • Supports 9K jumbo frames for efficient large-data transfers.
  • IEEE 802.3ad link aggregation support.
  • IEEE 802.1Q VLAN tagging support.
  • Full-duplex operation.
  • Includes a low-profile bracket for compatible systems.
  • Designed for desktop, workstation and server networking applications.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Item SKU: PEX10GSFP
  • Product Type: 10GbE PCIe SFP+ Network Card
  • Network Speed: Up to 10 Gbps
  • Port: 1 × SFP+
  • Interface: Fiber / 10 Gigabit Ethernet
  • SFP+ Slot: Open / MSA-compliant
  • Supported SFP+ Media: Multimode, single-mode and copper
  • Bus Type: PCI Express
  • PCIe Version: PCIe 3.0
  • PCIe Lane: x4
  • Maximum Transfer Rate: 20 Gbps full-duplex
  • Jumbo Frames: Up to 9K
  • Link Aggregation: IEEE 802.3ad
  • VLAN: IEEE 802.1Q
  • Standards: IEEE 802.3ae, IEEE 802.3aq
  • Chipset Aquantia: AQC100S
  • Card Profile: Standard profile; low-profile bracket included
  • Duplex: Full duplex

WHY CHOOSE THE MODEL?

  • Delivers 10 Gbit/s ultra-fast network speeds
  • Reliable performance with Marvell AQC100S chipset
  • Supports multi-mode optical fiber for extended network range
  • Compact design fits standard PCIe slots
  • Easy installation in desktops and servers
  • Perfect for gaming, professional workstations, and enterprise networks
