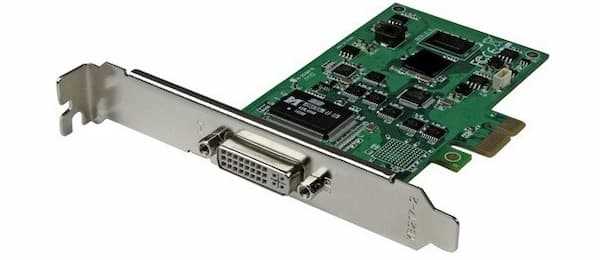

StarTech.com PCIe HDMI Video Capture Card %u2013 1080p60

• Corporate training and tutorial recording
• Conference and presentation capture
• Security-system video recording
• POS terminal screen capture
• Server and workstation output recording
• Professional AV archiving
• Legacy video digitization
• Live streaming from supported video sources
• Internal video production workstations
• Rack-mounted server or media-center capture

• Up to 1080p video capture at 60fps
• HDMI video input
• DVI video input
• VGA video input
• Component video input
• 2-channel stereo audio through HDMI/RCA
• H.264 video encoding
• MPEG-4 video encoding
• DirectShow compatibility
• NTSC, PAL-M, PAL-60 and PAL support
• 16:9 and 4:3 aspect ratio support
• PCI Express x1 interface
• Full-profile and low-profile installation
• Supports 1080p, 1080i, 720p, 576p/i and 480p/i
• Maximum digital input resolution of 1920 × 1080 at 60Hz
• Maximum analog resolution of 1920 × 1080 at 60Hz
• HDMI, DVI, VGA and component source flexibility

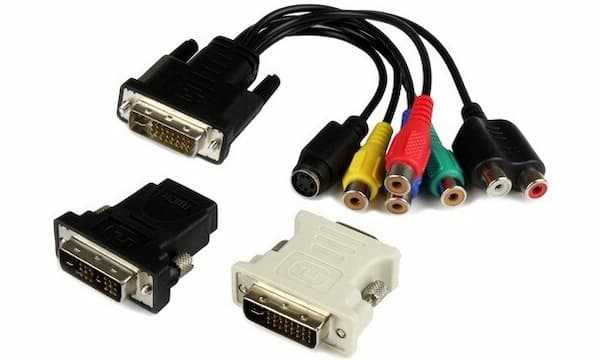

• Included HDMI-to-DVI adapter
• Included DVI-to-VGA adapter
• Included component video breakout cable
• Included S-Video/composite breakout cable
• Windows 8, 8.1, 10 and 11 compatibility

• Brand: StarTech.com
• Product: PCIe HDMI Video Capture Card
• SKU / Product ID: PEXHDCAP60L2
• Product status: Discontinued
• Replacement model: PEXHDCAP4K
• Product type: Internal PCIe video capture card
• PCIe interface: PCI Express x1
• Required expansion slot PCI: Express 2 or compatible
• HDMI input: Yes
• DVI input: Yes
• VGA input: Yes
• Component input: Yes
• Audio: 2-channel stereo
• Audio inputs: HDMI / RCA
• Maximum digital input: 1920 × 1080 at 60Hz
• Maximum analog resolution: 1920 × 1080 at 60Hz
• Maximum output resolution: 1920 × 1080 at 60Hz
• Supported resolutions: 1080i/p, 720i/p, 576i/p, 480i/p
• Video encoding: MPEG-4 / H.264
• Aspect ratios: 16:9 and 4:3
• Video standards: NTSC, PAL-M, PAL-60, PAL
• Software compatibility: DirectShow
• Operating systems: Windows 8, 8.1, 10, 11
• CPU requirement: Intel Core i5-3330 or higher
• Memory requirement: 4GB RAM or higher
• Profile support: Full-profile and low-profile
• Product dimensions: 141 × 69 × 15 mm
• Operating temperature: 0°C to 40°C
• Storage temperature: -5°C to 50°C
• Operating humidity: 20–80%, non-condensing
• Chipset Mstar: MST3367CMK
• Compliance: TAA, RoHS, CE, FCC, WEEE, RCM
• Compatibility - ultra short: Windows 8–11; PCIe x1 slot required

Why Choose This Product?

• 1080p60 capture: Provides smooth Full HD recording at 60fps for training, presentations, AV documentation and other motion-sensitive content.
• Multiple source interfaces: HDMI, DVI, VGA and component inputs help organizations capture from mixed-generation AV equipment without purchasing separate capture hardware.
• PCIe internal installation: The card installs directly into a desktop, workstation or suitable rack-mounted system, avoiding an external USB capture device.
• Broad software integration: DirectShow compatibility allows use with compatible third-party capture and streaming applications.
• H.264 encoding: Provides a widely supported compressed video format for practical recording, storage and distribution workflows.
• Dual-profile installation: Full-profile and low-profile brackets support deployment in different PC and server chassis.
• Enterprise-oriented compliance: TAA, RoHS, CE, FCC, WEEE and RCM certifications help address procurement requirements.
• Useful for legacy-to-digital workflows: Support for DVI, VGA and component inputs allows existing AV equipment to remain usable within modern digital recording environments.
• Important procurement consideration: This model is discontinued, so it is primarily relevant where an exact replacement, existing deployment or legacy compatibility requirement exists. StarTech.com identifies PEXHDCAP4K as the replacement model.
