StarTech.com NOTECONS02X TAA Laptop-to-Server KVM Adapter

• Server installation and maintenance.
• Troubleshooting servers in data centers.
• Accessing headless computers without a dedicated monitor.
• Maintaining systems in crowded server racks.
• Servicing ATMs and kiosks with VGA and USB connections.
• Performing BIOS-level diagnostics and configuration.
• Capturing video and screenshots for technical troubleshooting.

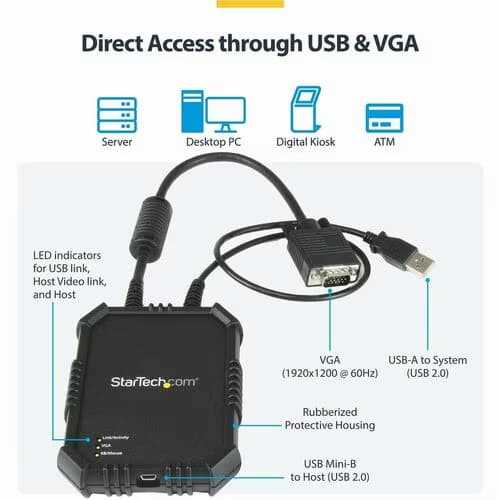

• Converts a laptop into a portable KVM console for server access.
• Supports VGA video and USB connectivity.
• Provides BIOS-level access without requiring software installation on the host server.
• Supports local file transfer and video capture through software.
• Captures screenshots and activity for troubleshooting.
• Powered through the server-side USB connection.
• TAA compliant.
• Supports analog video resolutions up to 1920 × 1200 at 60 Hz.
• Includes integrated VGA and USB host cables.

• Brand: StarTech.com
• Model: NOTECONS02X
• Part Number / MPN: NOTECONS02X
• Product Type: Laptop-to-server KVM crash cart adapter
• Product Category: Portable KVM console adapter
• Compliance: TAA compliant
• Video Interface: VGA
• Host USB Connector: 1 × USB-A male, 480 Mbps
• Console Connector: 1 × USB Mini-B female, 480 Mbps
• Maximum Analog Resolution: 1920 × 1200 at 60 Hz
• Number of KVM Ports: 1
• Number of Monitors Supported: 1
• Maximum Number of Users: 1
• Power Source: USB-powered from the connected host system
• Software Functions: File transfer, video capture and screenshots
• Server-Side Software Installation: Not required for BIOS-level access
• IP Control: No
• Hot-Key Selection: No
• On-Screen Display: No
• Audio Support: No
• Rack-Mountable: No
• Cables Included: Yes
• Daisy-Chain Support: No
• Enclosure Material: Plastic with rubberized housing
• Colour: Black
• Product Length: 125 mm
• Product Width: 88 mm
• Product Height: 22 mm
• Product Weight: 244 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity: 80% RH, as specified by the manufacturer
• Included in Package: Crash cart adapter, USB-A-to-Mini-B cable and quick-start guide
• Compatibility: Requires a host device with VGA video output and USB connectivity; check the laptop operating system and software requirements before deployment.

Why Choose This Product?

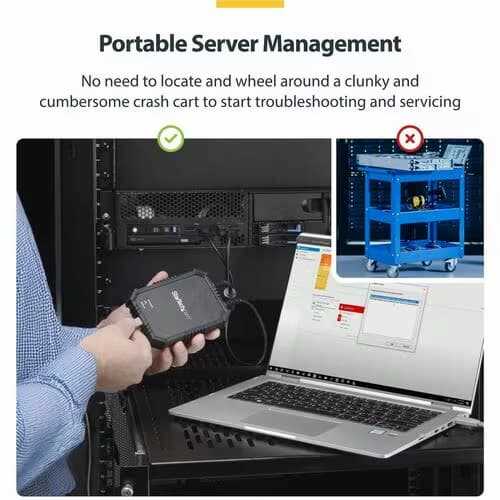

• Portable access reduces the need to transport a traditional crash cart between server locations.
• BIOS-level access supports troubleshooting before the host operating system loads.
• Integrated cables simplify the connection process for compatible VGA-and-USB equipment.
• USB power removes the requirement for a separate AC power adapter.
• File transfer and capture functions support technical troubleshooting and activity documentation.
• TAA compliance provides a relevant procurement attribute for organizations with applicable purchasing requirements.
• The compact housing suits technicians who need to carry console-access equipment between locations.
