Home Electronics Adapters & Cables StarTech.com Mini DisplayPort to HDMI Adapter 1080p

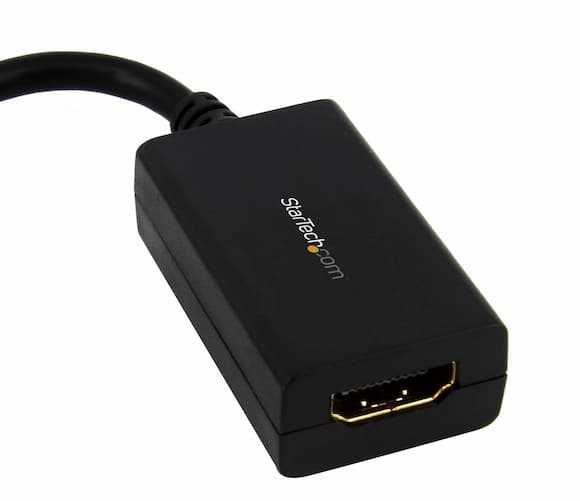

StarTech.com Mini DisplayPort to HDMI Adapter 1080p

Brand:
StarTech.com

The StarTech.com MDP2HDMI is a compact passive Mini DisplayPort 1.2 to HDMI 1.4 adapter designed to connect Mini DisplayPort-equipped laptops, desktops and tablets to a single HDMI monitor, projector or TV. It supports up to 1920 × 1200 / 1080p at 60Hz, 7.1-channel digital audio, HDCP 1.4 and DPCP, making it suitable for office workstations, BYOD, presentations and secondary-display deployments.

OVERVIEW

  • The StarTech.com MDP2HDMI is a passive Mini DisplayPort 1.2-to-HDMI 1.4 adapter for connecting one HDMI display to compatible computers and tablets. Compatibility: Requires an mDP++ source; also supports compatible Thunderbolt 1/2 ports. Compared with MDP2HDEC, MDP2HDMI uses a shorter 13cm attached cable; MDP2HDEC provides 30cm reach. Its compact 20g design suits IT spares, BYOD, hot desks and presentation kits.

USE CASES

  • Corporate workstation display expansion: Connects an existing HDMI monitor to a Mini DisplayPort-equipped business computer, extending the useful life of existing display infrastructure.
  • BYOD environments: Enables employees carrying compatible Mini DisplayPort laptops or tablets to connect to HDMI displays in offices and shared work areas.
  • Conference rooms and boardrooms: Provides a compact connectivity option for presentations from compatible Mini DisplayPort systems to HDMI projectors or displays.
  • Hot-desk deployments: Allows shared HDMI monitors to be connected to compatible user devices without replacing existing display hardware.
  • Secondary-monitor installations: Supports a single external HDMI display for compatible laptops and desktops, providing additional screen space for productivity applications.
  • Education and training rooms: Connects compatible Mini DisplayPort computers to HDMI-enabled classroom displays and projectors.
  • IT replacement inventory: A small, standardized adapter can be maintained as an infrastructure spare for organizations operating compatible legacy systems.
  • Travel and field presentations: The 20g compact form factor makes it practical for laptop bags, presentation kits and mobile support teams.

KEY FEATURES

  • Mini DisplayPort 1.2 to HDMI 1.4 conversion: Connects a compatible Mini DisplayPort source to an HDMI display, allowing organizations to reuse HDMI monitors, TVs and projectors.
  • Up to 1920 × 1200 / 1080p at 60Hz: Provides Full HD-class video output for office productivity, presentations and standard business displays.
  • 7.1-channel digital audio support: Carries multichannel HDMI audio alongside video, reducing the need for a separate audio connection where the source and display support it.
  • Passive adapter design: Uses the source device's compatible DP++ output for conversion, eliminating the requirement for a separate power supply.
  • HDCP 1.4 support: Provides compatibility with protected digital content within supported source and display configurations.
  • DPCP support: Supports DisplayPort Content Protection requirements for compatible protected-content workflows.
  • 5.1-inch / 13cm attached cable: Provides a short integrated connection suitable for compact workstation and travel setups.
  • Gold-plated connectors: Designed to support reliable signal transmission and durable repeated connectivity in business environments.
  • Compact 20g construction: Minimizes the physical and carrying burden for mobile users and IT spare inventories.
  • Driver-free operation: Requires no additional software or drivers, simplifying deployment across supported operating systems.
  • Single-display output: Provides a straightforward one-source-to-one-HDMI-display connection for targeted workstation, presentation and display deployments.
  • 3-year warranty and lifetime technical support: Provides vendor-backed support for procurement and ongoing IT deployment requirements.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Product ID / SKU: MDP2HDMI
  • Product Type: Mini DisplayPort to HDMI Adapter
  • Adapter Type: Passive
  • Input: 1 × Mini DisplayPort
  • Input Standard: Mini DisplayPort 1.2
  • Output: 1 × HDMI
  • Output Standard HDMI: 1.4
  • Maximum Digital Resolution: 1920 × 1200 / 1080p
  • Maximum Refresh Rate: 60Hz at supported 1080p output
  • Displays Supported: 1
  • Audio: Yes
  • Audio Support: HDMI 7.1-channel audio
  • HDCP: HDCP 1.4
  • DPCP: Supported
  • HDR: No
  • Maximum Cable Distance to Display: 15.2m / 49.9ft
  • Attached Cable Length: 13cm / 5.1in
  • Product Length: 76.2mm / 3.0in
  • Product Width: 40mm / 1.6in
  • Product Height: 15mm / 0.6in
  • Product Weight: 20g / 0.7oz
  • Compatibility: mDP++ source required; compatible Thunderbolt 1/2 systems
  • Operating Temperature: 0°C to 45°C
  • Storage Temperature: -10°C to 80°C

Why Choose This Product?

  • Reuse existing HDMI displays: Converts a compatible Mini DisplayPort output to HDMI, helping organizations continue using existing monitors, TVs and projectors rather than replacing them.
  • Straightforward enterprise deployment: Passive, driver-free operation minimizes configuration requirements for supported systems.
  • Full HD business performance: 1080p at 60Hz is well suited to office applications, presentations, standard digital signage and general productivity workloads.
  • Integrated digital audio: 7.1-channel HDMI audio allows compatible audiovisual installations to carry audio and video through the same connection.
  • Low infrastructure footprint: At only 20g, the adapter is easy to stock as an IT spare and distribute to mobile users.
  • Useful for legacy equipment: Support for Mini DisplayPort and Thunderbolt 1/2 systems makes it relevant for organizations maintaining compatible legacy laptops, workstations and peripherals.
  • No external power requirement: The passive design avoids another power adapter or electrical connection at the workstation.
  • Vendor-backed lifecycle support: A 3-year warranty and lifetime technical support provide additional procurement and deployment assurance.

CUSTOMER REVIEW

No Reviews Found

FAQ

No FAQs Found
