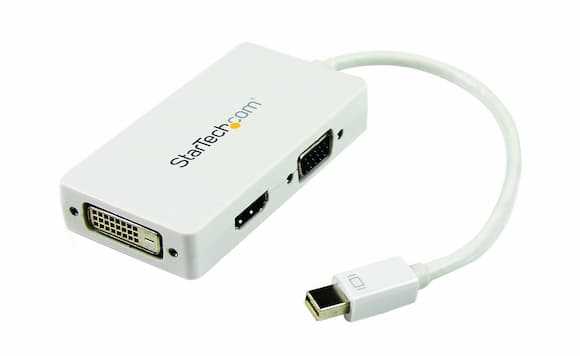

StarTech.com MDP2VGDVHDW 3-in-1 Mini DisplayPort Adapter

• Boardroom presentations requiring HDMI, DVI-D or VGA display connectivity
• BYOD laptop connectivity with office monitors, projectors or presentation systems
• IT technician kits for supporting varied display interfaces across user environments
• Classrooms and training rooms using mixed-generation display equipment
• Conference rooms where available display ports vary between locations
• Temporary workstations requiring portable external-display connectivity
• Legacy monitor replacement programs where VGA or DVI-D displays remain deployed
• Remote or mobile workers carrying a single adapter for different display environments
• Secondary-monitor connectivity for compatible Mini DisplayPort systems
• Field-service deployments where compact, driver-free display connectivity is required

• 3-in-1 Mini DisplayPort connectivity for HDMI, DVI-D and VGA displays
• Supports one active video output at a time
• Mini DisplayPort 1.2 input interface
• HDMI 1.4, DVI-D Single-Link and VGA output options
• Supports up to 1920x1200/1080p for documented analog and digital resolutions
• HDMI supports 7.1-channel audio
• DVI-D and VGA outputs do not carry audio
• Plug-and-play operation with no driver installation required
• No separate power adapter required
• Active VGA output with passive HDMI and DVI-D ports
• Supports one connected display
• Compact 150 mm cable for portable deployments
• White finish suitable for mobile and desktop connectivity kits
• Compatible with supported DisplayPort-over-Thunderbolt implementations

• Brand: StarTech.com
• Part Number: MDP2VGDVHDW
• Product Type: 3-in-1 Mini DisplayPort Video Adapter
• Color: White
• AV Input: Mini DisplayPort 1.2
• AV Output: HDMI 1.4
• AV Output: DVI-D Single-Link
• AV Output: VGA

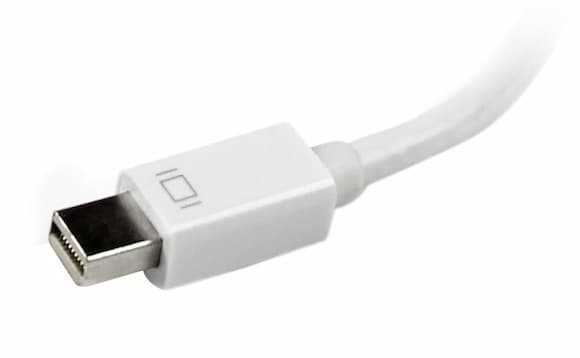

• Connector A: 1 x Mini DisplayPort, 20-pin
• Connector B: 1 x HDMI, 19-pin
• Connector B: 1 x VGA, 15-pin High Density D-Sub
• Connector B: 1 x DVI-D, 25-pin
• Displays Supported: 1
• Audio Support: Yes
• HDMI Audio: 7.1-channel
• DVI Audio: Not supported
• VGA Audio: Not supported
• Maximum Analog Resolution: 1920x1200/1080p
• Maximum Digital Resolution: 1920x1200/1080p
• Maximum Cable Distance to Display: 15.2 m / 49.9 ft
• Cable Length: 150 mm / 5.9 in
• Product Length: 27.0 cm / 10.6 in
• Product Width: 4.5 cm / 1.8 in
• Product Height: 1.5 cm / 0.6 in
• Product Weight: 57 g / 2.0 oz
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• Operating Humidity: 10% to 85% RH
• Adapter Type: Passive
• HDMI Port: Passive
• DVI-D Port: Passive
• VGA Port: Active

WHY CHOOSE THIS PRODUCT?

• Organizations choose MDP2VGDVHDW when one Mini DisplayPort system must work across HDMI, DVI-D and VGA display environments without carrying separate adapters. Its 3-in-1 design, compact form factor, driver-free operation and support for both current and legacy display interfaces simplify deployment for IT teams, mobile users and shared meeting spaces. Because only one output operates at a time, it should be procured for flexible single-display connectivity rather than multi-monitor expansion. Its compatibility with supported Mini DisplayPort and DisplayPort-over-Thunderbolt systems can also help extend the useful life of existing equipment and reduce the need for interface-specific replacement accessories.
