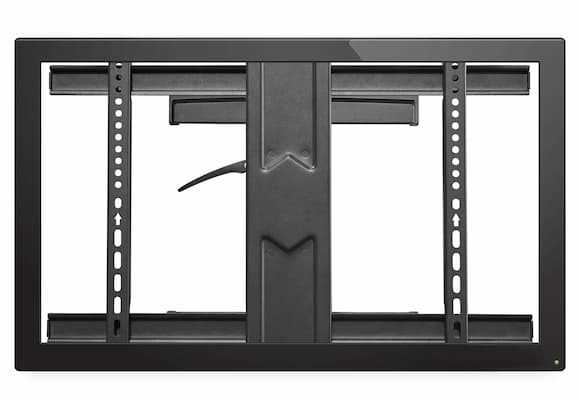

StarTech.com FPWARTS2 Heavy-Duty Full-Motion TV Wall Mount for 37%u2013100" Displays

Brand:

StarTech.com FPWARTS2 is a heavy-duty full-motion wall mount for large VESA displays from 37 to 100 inches, supporting up to 75 kg. Its articulating arm, ±60° swivel, +2°/-15° tilt, ±3° leveling, post-install lateral adjustment and integrated cable management make it suited to boardrooms, classrooms, lobbies, digital signage and commercial AV installations. The steel construction and broad VESA coverage support demanding professional display deployments.

OVERVIEW

  • The FPWARTS2 is a heavy-duty articulating wall mount for professional 37–100-inch displays, combining 75 kg capacity with extensive positioning control for commercial AV and digital-signage deployments. Compatibility: VESA 200×100 through 600×400 mm displays. Model comparison: Compared with smaller StarTech mounts, FPWARTS2 supports larger, heavier displays and longer arm extension.

USE CASES

  • Boardroom displays: Positions large presentation screens for different seating areas while allowing installers to fine-tune the viewing angle.
  • Corporate meeting rooms: Supports large displays for presentations, collaboration and video-conferencing environments without consuming floor space.
  • Hotel and hospitality signage: Enables large customer-facing screens in lobbies, reception areas and guest-facing spaces.
  • Classrooms and training rooms: Provides flexible display positioning for participants viewing content from different areas of the room.
  • Digital signage installations: Supports large commercial displays while integrated cable management keeps visible cabling organized.
  • Retail environments: Allows large promotional or informational screens to be positioned toward customers.
  • Control and monitoring rooms: Supports large displays where viewing angle and screen positioning need to be adjusted.
  • Restaurants and entertainment venues: Provides wall-mounted large-screen deployment while preserving usable floor area.
  • Home theater installations: Supports large displays where full-motion adjustment is preferred over a fixed wall bracket.
  • Corner and offset-stud installations: Post-install lateral adjustment helps center the display when wall studs are not directly aligned with the desired screen position.

KEY FEATURES

  • 37–100-inch display support: Accommodates a broad range of large professional and consumer displays, reducing the need to change mounting hardware when display sizes vary within the supported range.
  • 75 kg / 165.4 lb capacity: Provides the load capacity required for many large-format commercial displays.
  • Heavy-duty steel construction: Provides a rigid mounting structure for demanding large-screen installations.
  • Full-motion articulating arm: Allows the display to move away from the wall for easier positioning and viewing.
  • Up to 805 mm arm extension: Creates substantial positioning flexibility when the display needs to project farther from the wall.
  • ±60° display swivel: Allows the screen to be directed toward different viewing zones without relocating the wall mount.
  • +2°/-15° tilt: Helps optimize the screen angle and manage viewing position or glare.
  • ±3° screen-level adjustment: Allows post-installation leveling to correct minor alignment differences.
  • Post-install lateral adjustment: Provides approximately 1.2 m of left-to-right adjustment, helping center the display where studs are offset from the intended screen position.
  • 2.8-inch minimum wall profile: Keeps the display relatively close to the wall when the articulating arm is retracted.
  • Broad VESA support: Covers VESA patterns from 200×100 mm through 600×400 mm, increasing display compatibility.
  • Curved-display support: Designed to accommodate compatible curved VESA displays within the specified size and weight limits.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / Product ID: FPWARTS2
  • Product Type: Full-motion articulating TV/display wall mount
  • Supported Displays: 1
  • Minimum Display Size: 37 inches
  • Maximum Display Size: 100 inches
  • Maximum Display Weight: 75 kg / 165.4 lb
  • Display Type: Flat and compatible curved displays
  • Material: Steel
  • Color: Black
  • Mounting Type: Wall mount
  • Display Tilt: +2° / -15°
  • Screen Level Adjustment ±3°
  • Display Rotation: ±3°
  • Minimum Arm Extension: 75 mm / 3.0 in
  • Maximum Arm Extension: 805 mm / 31.7 in
  • Minimum Profile from Wall: 70 mm / 2.8 in
  • Lateral Adjustment: Up to approximately 1.2 m / 47 in
  • Articulating: Yes
  • Cable Management: Yes
  • Wall-Mountable: Yes
  • Product Length: 67.0 cm / 26.4 in
  • Product Width: 80.0 cm / 31.5 in
  • Product Height: 48.7 cm / 19.2 in
  • Product Weight: 16.8 kg / 37.0 lb
  • Package Quantity: 1

Why Choose This Product?

  • Large-display capacity: Supports displays up to 100 inches and 75 kg, making it appropriate for large-format commercial installations.
  • Professional positioning flexibility: Swivel, tilt, extension and leveling allow installers to optimize screen placement after installation.
  • Offset-stud correction: Lateral adjustment can help center a large display even when wall studs do not align with the preferred screen position.
  • Broad VESA compatibility: Supports multiple mounting patterns up to 600×400 mm, simplifying display standardization.
  • Space-efficient design: The mount retracts to approximately 70 mm from the wall while still providing up to 805 mm of extension.
  • Commercial-ready cable organization: Integrated cable management helps maintain a cleaner installation in customer-facing environments.

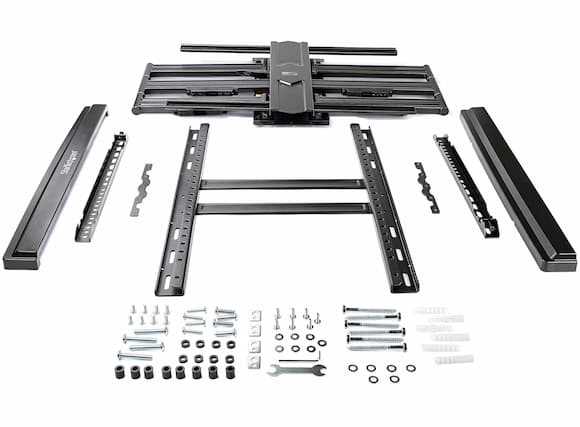

  • Complete mounting hardware: Multiple screw and spacer sizes reduce the need for separate mounting-hardware procurement.
  • Longer support lifecycle: Five-year warranty provides additional protection for professional display infrastructure.
