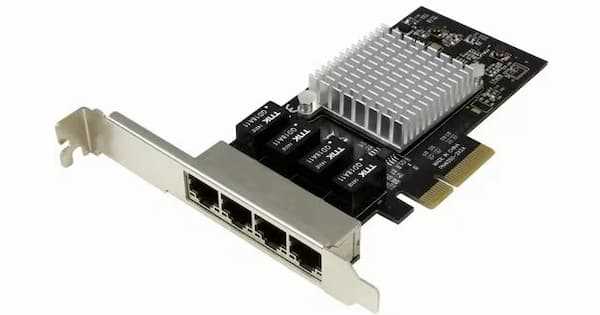

StarTech.com 4-Port Gigabit Ethernet PCIe Network Card with Intel I350

• Multi-network server connectivity
• Network redundancy and failover configurations
• Virtualized server environments
• VLAN-based traffic separation
• Firewall and network appliance deployments
• Workstations requiring multiple Ethernet connections
• Corporate desktop network expansion
• Government and education network infrastructure
• Healthcare and business network deployments
• Legacy server Ethernet replacement

• Four Gigabit Ethernet RJ-45 ports
• 10/100/1000 Mbps network support
• Intel I350-AM4 chipset
• PCI Express x4 interface
• Supports x8 and x16 PCIe slots
• Up to 2000 Mbps full-duplex data transfer
• IEEE 802.3ad link aggregation support
• IEEE 1588 time synchronization
• Up to 9K jumbo frame support
• IEEE 802.1Q VLAN tagging
• Wake-on-LAN support
• Auto-MDIX support
• Full-duplex Ethernet support
• Intel Virtualization Technology for Connectivity
• PXE network boot support
• IEEE 802.3az Energy Efficient Ethernet
• Four independent network ports
• Full-profile installation
• Low-profile bracket included
• Four link/activity LED indicators
• Four 100/1000 Mbps speed indicators

• Brand: StarTech.com
• Product: 4-Port Gigabit Ethernet Network Card
• SKU / Product ID: ST4000SPEXI
• Network controller: Intel I350-AM4
• Number of ports: 4
• External connectors: 4 × RJ-45
• Ethernet speed: 10/100/1000 Mbps
• Maximum data transfer rate: 2000 Mbps full-duplex
• Bus type: PCI Express
• PCIe interface: PCIe x4
• PCIe slot compatibility: x4, x8, x16
• Auto-negotiation: Yes
• Auto-MDIX: Yes
• Full duplex: Yes
• Jumbo frames: Up to 9K
• Link aggregation: IEEE 802.3ad
• Time synchronization: IEEE 1588
• VLAN: IEEE 802.1Q
• Flow control: IEEE 802.3x Full Duplex Flow Control
• Wake-on-LAN: Yes
• PXE network boot: Supported
• Virtualization: Intel Virtualization Technology for Connectivity
• Energy efficiency: IEEE 802.3az
• Ethernet standards: IEEE 802.3, 802.3u, 802.3ab
• LEDs: 4 × speed; 4 × link/activity
• Card profile: Standard profile
• Low-profile support: Yes, bracket included
• Power consumption: 4.4W
• Product dimensions: 132 × 18 × 120 mm
• Product weight: 90g
• Operating temperature: 5°C to 50°C
• Storage temperature: -20°C to 60°C
• Operating humidity: 20%–80% RH
• Operating systems: Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022; Linux
• Drivers: No separate driver download listed by StarTech.com
• Compliance: TAA, RoHS, REACH, CE, FCC, WEEE
• Compatibility - ultra short: Windows/Linux; PCIe x4 or higher required

Why Choose This Product?

• Four ports from one PCIe slot: Adds four wired Ethernet interfaces without consuming four expansion slots, useful in space-constrained servers and workstations.
• Intel I350-AM4 controller: Provides a business-oriented Intel networking platform with virtualization and advanced networking features.
• Multi-network flexibility: Four independent RJ-45 ports can connect a system to separate networks or dedicated traffic segments.
• Link aggregation support: IEEE 802.3ad enables supported Windows Server deployments to combine network interfaces for increased aggregate bandwidth and resilience.
• Virtualization-ready: Intel Virtualization Technology for Connectivity helps optimize networking in virtualized environments.
• 9K jumbo frames: Larger Ethernet frames can reduce packet-processing overhead in compatible network environments.
• VLAN support: IEEE 802.1Q tagging supports logical network segmentation without requiring separate physical NICs for every network.
• Flexible chassis deployment: The included low-profile bracket allows installation in compatible compact systems as well as standard-profile chassis.
• Enterprise lifecycle value: A two-year warranty and TAA compliance make it suitable for procurement environments with defined hardware and compliance requirements.
