StarTech External M.2 SSD Enclosure NVMe SATA USB 3.2 Gen 2

• IT teams performing rapid workstation SSD migration
• Technicians accessing M.2 drives outside their host system
• Enterprise users creating portable high-speed SSD storage
• Data-center teams transferring large infrastructure datasets
• Field engineers carrying diagnostic and deployment storage
• System integrators preparing SSDs for workstation deployment
• Backup teams moving large datasets between compatible systems
• IT asset teams securely reusing compatible M.2 SSD inventory
• Support teams performing external storage diagnostics
• Infrastructure teams transferring system images between platforms

• Supports both M.2 NVMe and SATA SSD technologies

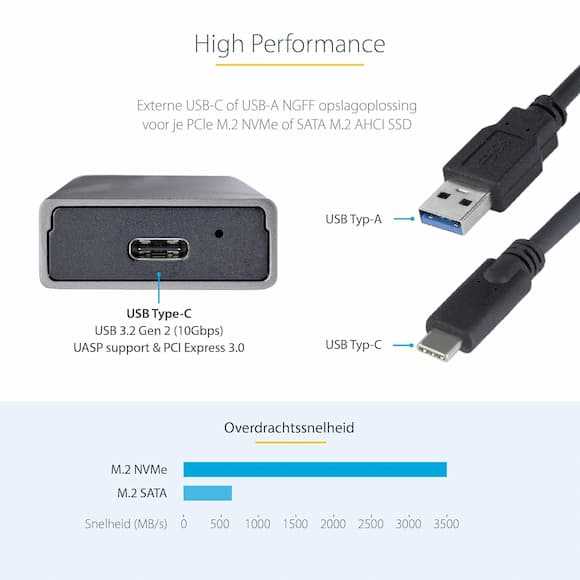

• USB 3.2 Gen 2 delivers up to 10Gbps host bandwidth
• UASP support improves USB storage transfer efficiency
• PCIe 3.0 interface supports high-speed NVMe operation
• Accommodates M.2 2230, 2242, 2260 and 2280 drives
• Tool-free installation reduces deployment and service time

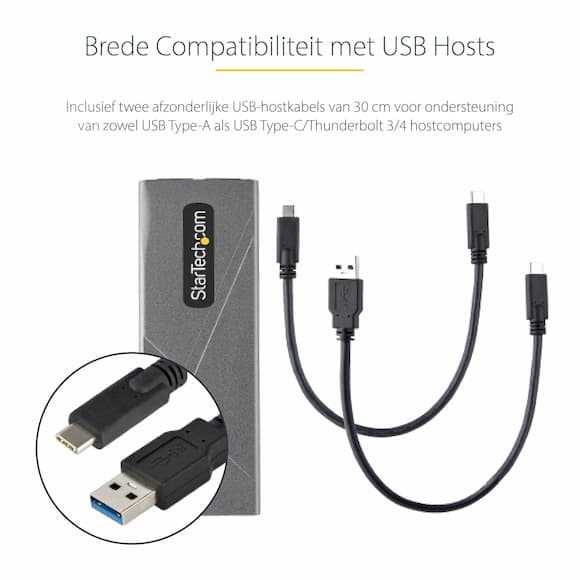

• USB-C and USB-A host cables support flexible connectivity
• Aluminum housing assists passive heat dissipation
• Fanless design enables quiet storage operation
• Supports PCIe 4.0 SSDs at PCIe 3.0 performance levels
• TRIM support helps maintain SSD storage management
• 4Kn support enables compatibility with advanced storage formats
• Single-drive architecture simplifies portable storage deployment
• USB-powered operation avoids a separate power adapter
• Compact 105 x 35 x 14mm chassis supports field mobility

• Brand: StarTech.com
• Product ID / Model: M2-USB-C-NVME-SATA
• Product Type: External M.2 SSD Enclosure
• Drive Type: M.2 SSD
• Drive Interface: PCIe NVMe, SATA, AHCI
• Host Interface: USB 3.2 Gen 2 Type-C
• Maximum Data Transfer Rate: Up to 10Gbps
• Number of Bays: 1
• Number of Supported Drives: 1 x M.2 SSD
• M.2 Drive Sizes: 2230, 2242, 2260, 2280
• NVMe Support: Yes
• SATA Support: Yes
• UASP Support: Yes
• TRIM Support: Yes
• 4Kn Support: Yes
• Enclosure Material: Aluminum
• Cooling: Fanless with Ventilation
• Installation: Tool-Free
• Power Source: USB Powered
• Dimensions: 105 x 35 x 14 mm
• Compatibility: Windows, macOS, Chrome OS, Linux, Ubuntu

WHY CHOOSE THIS PRODUCT?

• One enclosure for NVMe and SATA Reduces the need to stock separate M.2 enclosure types for different SSD technologies.
• 10Gbps USB connectivity Provides a high-bandwidth external path for storage migration, backup and large-file transfers when the complete connection supports USB 10Gbps.
• Broad M.2 size compatibility Supports 2230 through 2280 drives, increasing reuse options for existing enterprise and client SSD inventory.
• Tool-free deployment Speeds up drive installation and replacement for IT technicians handling frequent storage tasks.
• Dual host-cable flexibility Included USB-C and USB-A cables simplify connection across newer and legacy workstation environments.
• Aluminum thermal design Uses the enclosure as a passive heat-dissipation surface while avoiding fan noise and additional moving parts.
• Portable field-service format Enables technicians to carry SSD-based storage for imaging, migration, diagnostics and data-transfer activities.
