StarTech USB-C Speakerphone Dock, 4K HDMI, 100W PD, Teams

Brand:

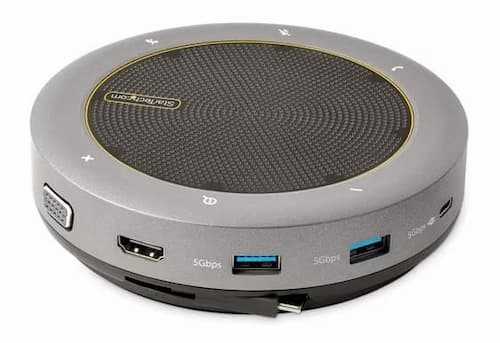

StarTech.com DKTBRSPMPD is a compact USB-C speakerphone docking station that combines conference audio, single-display connectivity and peripheral expansion in one device. It provides 4K 60Hz HDMI or 1080p VGA, two USB-A 5Gbps ports, USB-C 5Gbps data/100W PD pass-through, dual omnidirectional microphones and an 89dB speaker. Optimized for Microsoft Teams and compatible with Zoom, Skype and Google Meet, it is designed for hybrid offices, huddle spaces, travel and work-from-home deployments.

OVERVIEW

  • StarTech.com DKTBRSPMPD is a portable USB-C speakerphone mini dock combining conference audio, single-display output and USB expansion for modern workspaces. Compatibility: USB-C hosts with DP Alt Mode and USB Power Delivery; Thunderbolt 3/4 supported. Model comparison: choose DKTBRSPMPD when integrated speakerphone and docking are priorities; choose a conventional USB-C dock when dedicated conference audio is not needed.

USE CASES

  • Hybrid meeting rooms: Combines speakerphone, microphone, display and USB connectivity to create a quick meeting setup from a compatible laptop.
  • Microsoft Teams meetings: Optimized for Teams and provides physical controls for compatible call, volume and mute functions.
  • Zoom and Google Meet sessions: Supports other UC and softphone applications, making it suitable for mixed collaboration environments.
  • Huddle spaces: Provides a compact alternative to installing dedicated conferencing hardware in small meeting areas.
  • Hot-desking environments: Allows employees to connect a laptop to a display, peripherals and conference audio from one compact device.
  • Work-from-home setups: Provides meeting audio, external display and USB expansion without requiring multiple desktop accessories.
  • Corporate travel: The compact form factor and wraparound USB-C cable make it suitable for mobile employees moving between office and remote locations.
  • Boardroom presentations: Provides HDMI or VGA display connectivity while the integrated speakerphone handles meeting audio.
  • Shared workstations: Provides a repeatable connectivity setup for employees using common desks or collaboration spaces.

KEY FEATURES

  • Integrated speakerphone and dock: Combines conferencing audio with display and USB expansion, reducing the number of devices required for a meeting setup.
  • Dual omnidirectional microphones: Captures voices from up to a 7.5 ft (2.3 m) radius, supporting meetings with approximately 6–8 people in suitable room conditions.
  • Echo cancellation and noise reduction: Helps improve voice clarity during conferencing by processing microphone audio.
  • 89dB speaker output: Provides high-definition audio output across a specified 100Hz–20kHz frequency range.
  • 4K HDMI 60Hz: Supports up to 3840 × 2160 at 60Hz with compatible DP 1.4 Alt Mode hosts, providing high-resolution display connectivity.
  • VGA output: Supports up to 1920 × 1200 or 1920 × 1080 at 60Hz, helping connect compatible legacy displays and projectors.
  • Single-display support: Provides a straightforward one-monitor or presentation configuration for compact workstations.
  • Two USB-A 5Gbps ports: Provides high-speed connectivity for compatible keyboards, mice, storage and other USB peripherals.
  • USB-C 5Gbps data/PD port: Supports USB-C peripherals or up to 100W Power Delivery pass-through through the same port.
  • Up to 85W laptop charging: Delivers up to 85W to a compatible host when a suitable USB-C power adapter is connected.
  • Microsoft Teams optimization: Provides dedicated controls for compatible call handling, volume and microphone mute functions.
  • UC application compatibility: Works with compatible Zoom, Skype and Google Meet workflows, giving organizations flexibility across collaboration platforms.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / SKU: DKTBRSPMPD
  • Product Type: USB-C Speakerphone Mini Docking Station
  • Host Interface: USB 3.2 Gen 1 USB-C, 5Gbps
  • Host Connector: USB-C
  • HDMI Port: 1 × HDMI 2.0
  • HDMI Resolution: Up to 3840 × 2160 @ 60Hz
  • VGA Port: 1 × VGA
  • VGA Resolution: Up to 1920 × 1200 / 1920 × 1080 @ 60Hz
  • Displays Supported: 1
  • USB-A Ports: 2 × USB 3.2 Gen 1, 5Gbps
  • USB-C Downstream Port: 1 × USB 3.2 Gen 1, 5Gbps
  • Power Delivery: Up to 100W pass-through
  • Maximum Host Charging: Up to 85W
  • Adapter Power Consumption: 15W
  • Ethernet: Not included
  • Speaker Output: 89dB
  • Speaker Frequency: 100Hz–20kHz
  • Speaker Size: 42 mm diameter × 11.5 mm thick
  • Microphones: 2 × omnidirectional
  • Microphone Frequency: 100Hz–10kHz
  • Microphone Range: Up to 7.5 ft / 2.3 m radius
  • Audio Processing: Echo cancellation and noise reduction
  • UC Platforms: Microsoft Teams, Zoom, Skype, Google Meet and compatible softphones
  • Call Controls: Answer, end/reject, volume up/down, microphone mute
  • USB Data Rate: Up to 5Gbps
  • UASP: Yes
  • PXE: Yes
  • Wake-on-LAN: Yes
  • Host Cable Length: 56 cm / 22 in
  • Power Source: Bus powered or USB-C power adapter
  • Housing Material: Plastic
  • Color: Space Gray
  • Product Dimensions: 130 × 130 × 36 mm
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 65°C
  • Humidity: 0%–95%, non-condensing
  • Compatibility: USB-C DP Alt Mode hosts; Thunderbolt 3/4
  • Operating Systems: Windows, macOS, Linux LTS and ChromeOS

Why Choose This Product?

  • All-in-one meeting solution: Combines speakerphone, microphone, display and USB expansion in one device.
  • 4K HDMI: Supports high-resolution 4K 60Hz output with a compatible host.
  • Dual microphones: Captures voices from multiple participants within the specified range.
  • Teams optimized: Provides convenient physical controls for supported collaboration workflows.
  • 100W PD: Supports up to 85W host charging while connected to a suitable power adapter.
  • USB 5Gbps expansion: Adds three high-speed USB ports for compatible peripherals.
  • Portable design: Suitable for offices, home workstations, travel and shared meeting spaces.
  • Enterprise-ready: TAA compliance and a 3-year warranty support structured business procurement.
