Home Electronics Computer Peripherals Docking Station StarTech.com DKT30CHVSDPD USB-C Multiport Docking Station

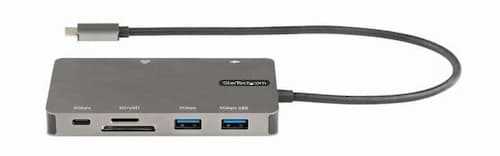

StarTech.com DKT30CHVSDPD USB-C Multiport Docking Station

Brand:
StarTech.com

The StarTech.com DKT30CHVSDPD is a portable 9-in-1 USB-C multiport adapter that adds 4K HDMI, 1080p VGA, Gigabit Ethernet, USB-A/USB-C connectivity, SD/microSD card access, and 100W USB Power Delivery pass-through to compatible laptops and tablets. Its 30cm attached cable, compact metal housing, PXE/Wake-on-LAN support, and single-display architecture make it practical for enterprise mobile workstations, shared desks, conference rooms, IT deployment, and business travel.

OVERVIEW

  • The DKT30CHVSDPD is a 9-in-1 USB-C mini dock for business users needing display, wired networking, USB peripherals, memory-card access, and laptop charging from one connection. Compatibility: USB-C hosts supporting DP Alt Mode and USB PD; also supports Thunderbolt 3/4 hosts. Model comparison: This model adds VGA and SD/microSD alongside 4K HDMI, making it suitable for mixed modern and legacy AV environments.

USE CASES

  • Enterprise laptop deployment: Add essential display, network, USB, storage, and charging connectivity.
  • Hybrid workstations: Connect a laptop to a monitor, wired network, USB peripherals, and power.
  • Conference rooms: Support HDMI or VGA presentation displays from compatible laptops.
  • Legacy display environments: Connect VGA projectors or monitors alongside modern HDMI displays.
  • IT help desks: Provide technicians with a portable multiport connectivity solution.
  • Hot-desking: Standardize laptop connectivity across shared workstations.
  • Business travel: Carry display, network, USB, card-reader, and charging functions in one compact device.
  • Media workflows: Transfer data from compatible SD and microSD memory cards.
  • Managed IT environments: Use Gigabit Ethernet with PXE Boot and Wake-on-LAN where supported.

KEY FEATURES

  • 4K HDMI at 30Hz: Connects compatible laptops to high-resolution HDMI displays for presentations and productivity.
  • 1080p VGA at 60Hz: Supports legacy monitors and projectors, extending the useful life of existing AV equipment.
  • Single-display architecture: Provides a straightforward external-display solution without implying unsupported multi-monitor operation.
  • Gigabit Ethernet: Adds 10/100/1000Mbps wired networking for laptops without an integrated Ethernet port.
  • Three 5Gbps USB data ports: Two USB-A ports and one USB-C port provide connectivity for compatible peripherals and storage.
  • 100W USB Power Delivery: Allows a compatible USB-C charger to provide power through the dock, with up to 85W available to the host according to the manufacturer.
  • BC 1.2 charging port: One USB-A port provides up to 7.5W for compatible fast-charging peripherals.
  • SD and microSD readers: Provides direct access to supported memory cards without requiring a separate reader.
  • 30cm integrated host cable: Provides extra reach and helps reduce connector strain on laptops and 2-in-1 devices.
  • PXE Boot support: Adds network-boot capability for compatible enterprise deployment environments.
  • Wake-on-LAN: Supports remote-wake workflows on compatible systems.
  • Fast Role Swap: Helps reduce disruption to USB, Ethernet, and video when switching between external power and bus power.
  • UASP support: Supports the USB Attached SCSI Protocol for compatible storage devices.

TECHNICAL SPECIFICATIONS

  • Brand: StarTech.com
  • Model / SKU: DKT30CHVSDPD
  • Product Type: USB-C Multiport Adapter / Mini Dock
  • Number of Functions: 9-in-1
  • Host Interface: USB-C
  • Host USB Standard: USB 3.2 Gen 1, 5Gbps
  • HDMI Output: 1 × HDMI, 19-pin
  • Maximum HDMI Resolution: 4096 × 2160 at 30Hz
  • VGA Output: 1 × VGA, 15-pin HD D-Sub
  • Maximum VGA Resolution: 1920 × 1080 at 60Hz
  • Displays Supported: 1
  • USB-A Data Ports: 2 × USB 3.2 Gen 1, 5Gbps
  • USB-A Charging Port: 1 × USB 3.2 Gen 1, 5Gbps, BC 1.2
  • USB-A Charging Output: Up to 7.5W / 5V at 1.5A
  • USB-C Data Port: 1 × USB 3.2 Gen 1, 5Gbps
  • USB-C PD Port: 1 × USB-C, USB Power Delivery only
  • Power Delivery: USB PD 3.0, up to 100W
  • Maximum Host Power: Up to 85W available to host
  • Ethernet: 1 × RJ-45
  • Network Speed: 10/100/1000Mbps
  • Ethernet Standards: IEEE 802.3, 802.3u, 802.3ab
  • SD Reader: SD, SDHC, SDXC
  • SD Standard: SD v3.0 UHS-I
  • UASP: Yes
  • Video Technology: DisplayPort 1.2 Alt Mode
  • Chipsets: Realtek RTL8153; Parade PS176; VIA VL102 and VL817
  • Host Cable: Integrated USB-C, 30cm / 11.8in
  • Power Source: Bus powered or USB-C power adapter
  • Power Consumption: 15W
  • LED Indicators: Network speed and network activity
  • Package Contents: USB-C Multiport Adapter, Quick-Start Guide

Why Choose This Product?

  • All-in-one connectivity: Combines video, networking, USB, memory-card access, and charging in one device.
  • Modern and legacy display support: 4K HDMI and 1080p VGA accommodate mixed enterprise display inventories.
  • Enterprise networking features: Gigabit Ethernet, PXE Boot, and Wake-on-LAN support managed workstation requirements.
  • High-speed peripheral connectivity: Three USB 5Gbps data ports support compatible storage and peripherals.
  • Laptop charging support: 100W PD input with up to 85W available to the host reduces the need for a separate docking solution.
  • Portable deployment: The 115g metal adapter and integrated 30cm cable are practical for mobile IT teams and hybrid workers.
  • Reduced accessory count: Consolidates several common laptop adapters into one multiport device.

CUSTOMER REVIEW

No Reviews Found

FAQ

No FAQs Found
