StarTech 7m OM4 LC LC Multimode Fiber Cable for 100G Network

• Connect 40GBase SR4 transceivers in data center networks
• Connect 100GBase SR10 transceivers in high bandwidth deployments
• Connect SFP plus equipped network switches and servers
• Connect QSFP plus transceivers in 40Gbps infrastructure
• Support QSFP28 based 100Gbps network connectivity
• Connect fiber switches across high density rack environments
• Connect servers to fiber based SAN infrastructure
• Extend compatible multimode links within data center racks
• Upgrade legacy 50/125µm fiber environments to OM4 connectivity
• Support high speed fiber connections in enterprise network infrastructure

• OM4 laser optimized multimode fiber construction
• Supports maximum data transfer rates up to 100Gbps
• Supports 1Gbps 10Gbps 40Gbps and 100Gbps network ratings
• 7m cable length supports longer rack and equipment routing

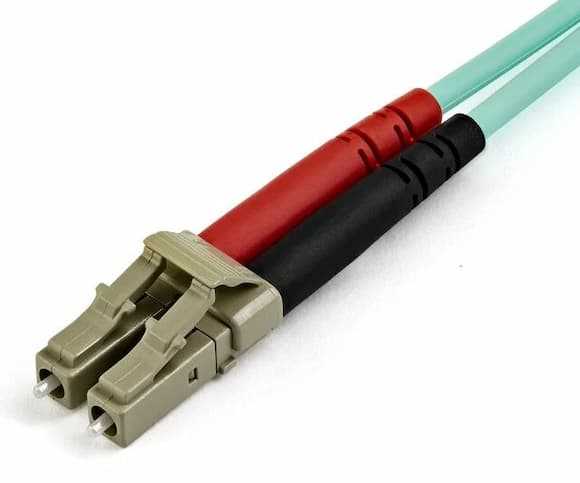

• LC duplex connectors on both ends
• LC connectors use UPC polished ends
• 50/125µm fiber core and cladding construction
• Supports 850nm and 1300nm optical wavelengths
• Supports LED and VCSEL light sources
• 2000MHz km modal bandwidth at 850nm
• LSZH low smoke zero halogen cable jacket
• Aramid fiber sheath provides additional tensile and crush resistance
• Individually tested for signal integrity
• 2.9mm cable outside diameter
• Static bend radius 3cm and dynamic bend radius 6cm

• Brand: StarTech.com
• Part Number: 450FBLCLC7
• Product Type: Fiber Optic Cable
• Cable Type: OM4 Multimode Fiber Optic Patch Cable
• Fiber Classification: OM4
• Fiber Type: Multimode
• Fiber Size: 50/125µm
• Cable Length: 7m 23ft
• Cable Construction: Duplex
• Connector A: LC Duplex Fiber
• Connector B: LC Duplex Fiber
• Connector Type: LC UPC
• Maximum Data Transfer Rate: 100Gbps
• Cable Rating: 1Gbps 10Gbps 40Gbps 100Gbps
• Wavelength: 850nm
• Wavelength: 1300nm
• Light Source Compatibility: LED and VCSEL
• Modal Bandwidth: 2000MHz km at 850nm
• Cable Jacket: Low Smoke Zero Halogen
• Fire Rating: LSZH
• Cable Diameter: 2.9mm
• Static Bend Radius: 3cm
• Dynamic Bend Radius: 6cm
• Color: Aqua
• Product Width: 15.2mm
• Product Height: 10.7mm
• Product Weight: 94g
• Operating Temperature: minus 20°C to 60°C
• Storage Temperature: minus 20°C to 60°C
• Operating Humidity: 0 to 90 percent RH
• Package Quantity: 1

WHY CHOOSE THIS PRODUCT?

• Organizations choose the 450FBLCLC7 when a longer OM4 LC duplex connection is required for 40G or 100G network infrastructure while retaining compatibility with 1G and 10G environments. Its 7m length, OM4 50/125µm construction and 100Gbps maximum data rate distinguish it from shorter or lower classification patch cables, while LC UPC termination supports compatible fiber infrastructure.
