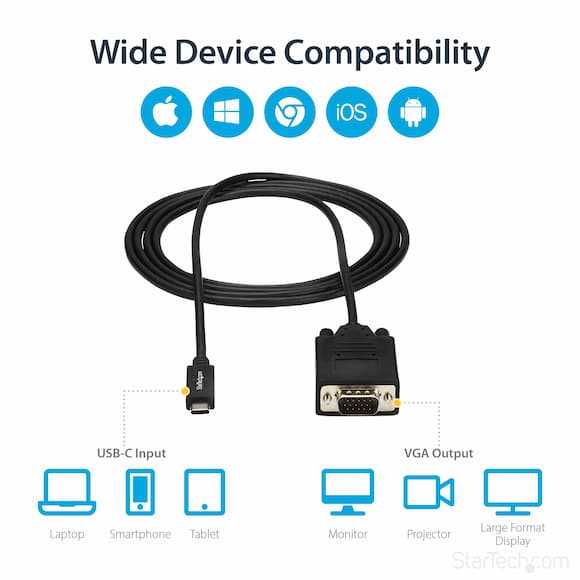

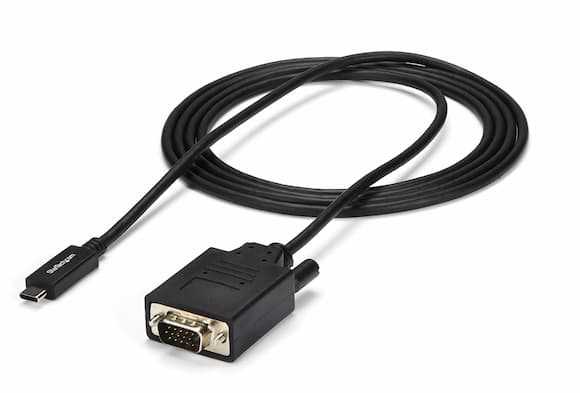

StarTech CDP2VGAMM2MB 6ft USB C to VGA Active Cable 1080p

• Connect USB C business laptops to VGA office monitors
• Connect Thunderbolt 3 workstations to legacy VGA displays
• Connect USB C laptops to VGA conference room projectors
• Support classroom presentation systems using VGA projectors
• Maintain existing VGA displays during laptop refresh programs
• Deploy compatible USB C workstations in legacy display environments
• Standardize direct video connections across office workstations
• Support meeting room systems with VGA display infrastructure
• Replace separate USB C adapters and VGA cables with one integrated cable
• Support IT refresh projects where existing VGA equipment remains serviceable

• Active USB C to VGA video conversion
• 6.6ft 2m cable length
• Supports DisplayPort 1.2 Alt Mode HBR2
• Supports up to 1920 x 1200 resolution
• Supports 1080p at 60Hz
• Supports a single VGA display
• EDID and DDC pass-through
• Thunderbolt 3 compatible
• Integrated male to male adapter cable design
• Driverless plug and play operation
• Compatible with supported Windows and Mac systems
• VGA output provides video without audio
• Helps reduce adapter and cable clutter
• Suitable for office and fixed workstation deployments

• Brand: StarTech.com
• Part Number: CDP2VGAMM2MB
• Product Type: USB C to VGA Adapter Cable
• Cable Length: 6.6 ft 2 m
• AV Input: USB C
• AV Output: VGA
• Input Technology: USB C DisplayPort Alt Mode
• Video Revision: DisplayPort 1.2
• Maximum Analog Resolution: 1920 x 1200 or 1080p
• Supported Resolution: 1024 x 768
• Supported Resolution: 1280 x 720
• Supported Resolution: 1920 x 1080 1080p
• Supported Resolution: 1920 x 1200
• Number of Displays: 1
• HDR Support: No
• Audio Support: VGA No Audio
• Chipset: Via Labs VL103
• Chipset: NXP PTN3355
• Connector A: USB C 24 pin DisplayPort Alt Mode
• Connector B: VGA 15 pin High Density D Sub
• Color: Black
• Product Weight: 4.7 oz 132 g
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -10°C to 80°C
• Humidity: 5 to 90 percent non-condensing
• Power Delivery Pass Through: No
• Operating System Support: OS Independent
• Compliance: TAA, CE, FCC, RCM, WEEE, RoHS, REACH

WHY CHOOSE THIS PRODUCT?

• The CDP2VGAMM2MB is suited to organizations that need a direct, dependable connection between modern USB C or Thunderbolt 3 systems and existing VGA displays. Its 2m length provides more installation flexibility than the 1m family model, while the integrated active conversion avoids a separate adapter and VGA cable. Support for 1920 x 1200, 1080p at 60Hz, EDID/DDC pass-through, and driverless operation makes it practical for workstation refreshes, conference rooms, classrooms, and legacy-display retention. For procurement teams, the integrated design can simplify cable standardization and replacement inventory, while the 3-year warranty supports planned lifecycle management.
